MC56F8367VPYE by:

16-BIT, 120MHz, OTHER DSP, PQFP160

Part Details for MC56F8367VPYE by NXP Semiconductors

Results Overview of MC56F8367VPYE by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Industrial Automation Smart Cities Transportation and Logistics Renewable Energy Automotive Robotics and Drones

MC56F8367VPYE Information

MC56F8367VPYE by NXP Semiconductors is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MC56F8367VPYE

Part # Distributor Description Stock Price Buy
DISTI # 62K4928
Newark Digital Signal Controller-Dsc 16 Bit 576Kb 60Mhz 2.75V Lqfp-160, Product Range:Mc56F83Xx Series, Core Frequency:60Mhz, Flash Memory Size:576Kb, No. Of I/O S:76I/O S, Embedded Interface Type:Can, Sci, Spi, Core Supply Voltage:2.5V Rohs Compliant: Yes |Nxp MC56F8367VPYE RoHS: Compliant Min Qty: 200 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 10 $44.9400
$44.9400 Buy Now
DISTI # MC56F8367VPYE-ND
DigiKey IC MCU 16BIT 512KB FLASH 160LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray 227
In Stock
  • 1 $60.5100
  • 10 $49.9530
  • 25 $47.3172
  • 200 $43.3442
$43.3442 / $60.5100 Buy Now
DISTI # MC56F8367VPYE
Avnet Americas MCU 16-bit MC56F83xx CISC 512KB Flash 3.3V 160-Pin LQFP Tray - Trays (Alt: MC56F8367VPYE) RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 200 $38.3419
  • 210 $38.0265
  • 410 $37.7117
  • 1,000 $37.3976
  • 2,000 $37.0842
$37.0842 / $38.3419 Buy Now
DISTI # 841-MC56F8367VPYE
Mouser Electronics Digital Signal Processors & Controllers - DSP, DSC 16 BIT HYBRID CNTRLR RoHS: Compliant 0
  • 1 $59.2000
  • 10 $47.5000
  • 25 $45.9700
  • 50 $45.9600
  • 100 $42.0700
$42.0700 / $59.2000 Order Now
DISTI # V36:1790_07186739
Arrow Electronics MCU 16-bit 56800E CISC 512KB Flash 3.3V 160-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2439 Americas - 24
  • 1 $41.8800
$41.8800 Buy Now
DISTI # 88078549
Verical MCU 16-bit 56800E CISC 512KB Flash 3.3V 160-Pin LQFP Tray RoHS: Compliant Min Qty: 40 Package Multiple: 40 Americas - 280
  • 40 $42.8094
  • 200 $42.7585
$42.7585 / $42.8094 Buy Now
DISTI # 87618155
Verical MCU 16-bit 56800E CISC 512KB Flash 3.3V 160-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2439 Americas - 24
  • 1 $41.8800
$41.8800 Buy Now
DISTI # MC56F8367VPYE
IBS Electronics 56F8XX SERIES 18 KB RAM 512 KB FLASH 60 MHZ 16-BIT MICROCONTROLLER - LQFP-160 Min Qty: 200 Package Multiple: 1 0
  • 200 $48.8540
$48.8540 Buy Now
Chip 1 Exchange INSTOCK 1
RFQ
DISTI # MC56F8367VPYE
Avnet Silica MCU 16bit MC56F83xx CISC 512KB Flash 33V 160Pin LQFP Tray (Alt: MC56F8367VPYE) RoHS: Compliant Min Qty: 40 Package Multiple: 40 Lead time: 15 Weeks, 0 Days Silica - 0
Buy Now
Chip-Germany GmbH   RoHS: Not Compliant 2
RFQ
Cytech Systems Limited IC MCU 16BIT 512KB FLASH 160LQFP 400
RFQ
DISTI # MC56F8367VPYE
EBV Elektronik MCU 16bit MC56F83xx CISC 512KB Flash 33V 160Pin LQFP Tray (Alt: MC56F8367VPYE) RoHS: Compliant Min Qty: 40 Package Multiple: 40 Lead time: 15 Weeks, 0 Days EBV - 120
Buy Now
LCSC 512KB 76 LQFP-160(24x24) Digital Signal Processors (DSP/DSC) ROHS 18
  • 1 $48.6447
  • 30 $46.3289
$46.3289 / $48.6447 Buy Now

Part Details for MC56F8367VPYE

MC56F8367VPYE CAD Models

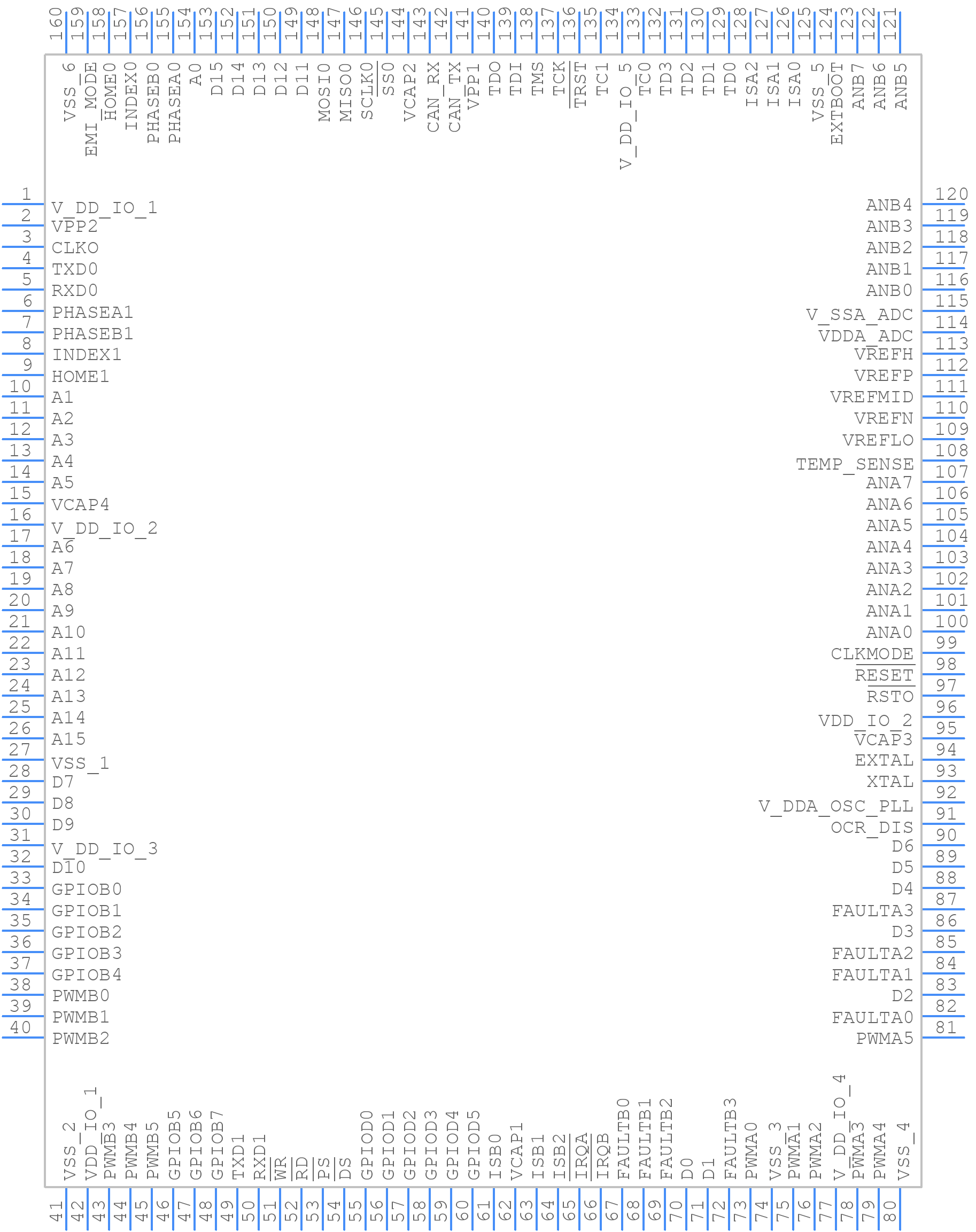

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC56F8367VPYE Part Data Attributes

Parametric Data
MC56F8367VPYE NXP Semiconductors
Buy Now Datasheet
Compare Parts:
MC56F8367VPYE NXP Semiconductors 16-BIT, 120MHz, OTHER DSP, PQFP160
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NXP SEMICONDUCTORS
Package Description ROHS COMPLIANT, PLASTIC, LQFP-160
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer NXP
Additional Feature ALSO REQUIRES 3.3V SUPPLY
Address Bus Width 24
Barrel Shifter YES
Bit Size 16
Boundary Scan YES
CPU Family 56800E
Clock Frequency-Max 120 MHz
External Data Bus Width 16
Format FIXED POINT
Internal Bus Architecture MULTIPLE
JESD-30 Code S-PQFP-G160
JESD-609 Code e3
Length 24 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of Terminals 160
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP160,1.0SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 36864
ROM (words) 524288
ROM Programmability FLASH
Seated Height-Max 1.6 mm
Speed 60 MHz
Supply Voltage-Max 2.75 V
Supply Voltage-Min 2.25 V
Supply Voltage-Nom 2.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 24 mm
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, CONTROLLER
