Part Details for MC56F82748VLH by NXP Semiconductors

Results Overview of MC56F82748VLH by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MC56F82748VLH Information

MC56F82748VLH by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MC56F82748VLH

Part # Distributor Description Stock Price Buy
DISTI # 81AC9048
Newark 32-Bit Dsc, 56800Ex Core, 64Kb Flash, Qfp 64 Rohs Compliant: Yes |Nxp MC56F82748VLH RoHS: Compliant Min Qty: 160 Package Multiple: 1 Date Code: 0 Container: Bulk 488
  • 100 $6.0700
  • 250 $6.0600
$6.0600 / $6.0700 Buy Now
DISTI # 96W1209
Newark Dsc, 32Bit, 64Kb, 100Mhz, Lqfp-64, Product Range:Mc56F82Xx Series, Core Frequency:100Mhz, Flash Memory Size:64Kb, No. Of I/O S:54I/O S, Embedded Interface Type:Can, I2C, Sci, Spi, Core Supply Voltage:1V, Dsc Case Style:Lqfp Rohs Compliant: Yes |Nxp MC56F82748VLH RoHS: Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 250 $4.9600
$4.9600 Buy Now
DISTI # MC56F82748VLH-ND
DigiKey IC MCU 32BIT 64KB FLASH 64LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray 1530
In Stock
  • 1 $7.7700
  • 10 $6.0420
  • 25 $5.6112
  • 160 $5.0136
  • 320 $4.9920
$4.9920 / $7.7700 Buy Now
DISTI # MC56F82748VLH
Avnet Americas Digital Signal Controller, MC56F82xx, 100 MHz, 64 KB, 54 I/O's, CAN, I2C, SPI , SCI, 1 V - Trays (Alt: MC56F82748VLH) RoHS: Compliant Min Qty: 160 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Tray 488
  • 160 $3.3918
  • 170 $3.3611
  • 330 $3.3345
  • 800 $3.3064
  • 1,600 $3.2788
$3.2788 / $3.3918 Buy Now
DISTI # 841-MC56F82748VLH
Mouser Electronics Digital Signal Processors & Controllers - DSP, DSC 32BIT CORE, 256KB FLASH RoHS: Compliant 363
  • 1 $7.3100
  • 10 $5.6800
  • 25 $5.2800
  • 100 $4.5800
  • 800 $4.5700
$4.5700 / $7.3100 Buy Now
DISTI # 86010386
Verical MCU 32-bit 56800 EX RISC 64KB Flash 3.3V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 82 Package Multiple: 1 Date Code: 2301 Americas - 3820
  • 82 $4.5875
$4.5875 Buy Now
DISTI # 86009554
Verical MCU 32-bit 56800 EX RISC 64KB Flash 3.3V 64-Pin LQFP Tray RoHS: Compliant Min Qty: 82 Package Multiple: 1 Date Code: 2401 Americas - 800
  • 82 $4.5875
$4.5875 Buy Now
Rochester Electronics Microcontroller, 32-Bit, FLASH, 56800E CPU, 100MHz, CMOS, PQFP64 RoHS: Compliant Status: Active Min Qty: 1 4620
  • 25 $3.6700
  • 100 $3.4800
  • 500 $3.3000
  • 1,000 $3.1200
  • 10,000 $2.9300
$2.9300 / $3.6700 Buy Now
DISTI # MC56F82748VLH
Avnet Silica Digital Signal Controller MC56F82xx 100 MHz 64 KB 54 IOs CAN I2C SPI SCI 1 V (Alt: MC56F82748VLH) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 15 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MC56F82748VLH
EBV Elektronik Digital Signal Controller MC56F82xx 100 MHz 64 KB 54 IOs CAN I2C SPI SCI 1 V (Alt: MC56F82748VLH) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 15 Weeks, 0 Days EBV - 0
Buy Now

Part Details for MC56F82748VLH

MC56F82748VLH CAD Models

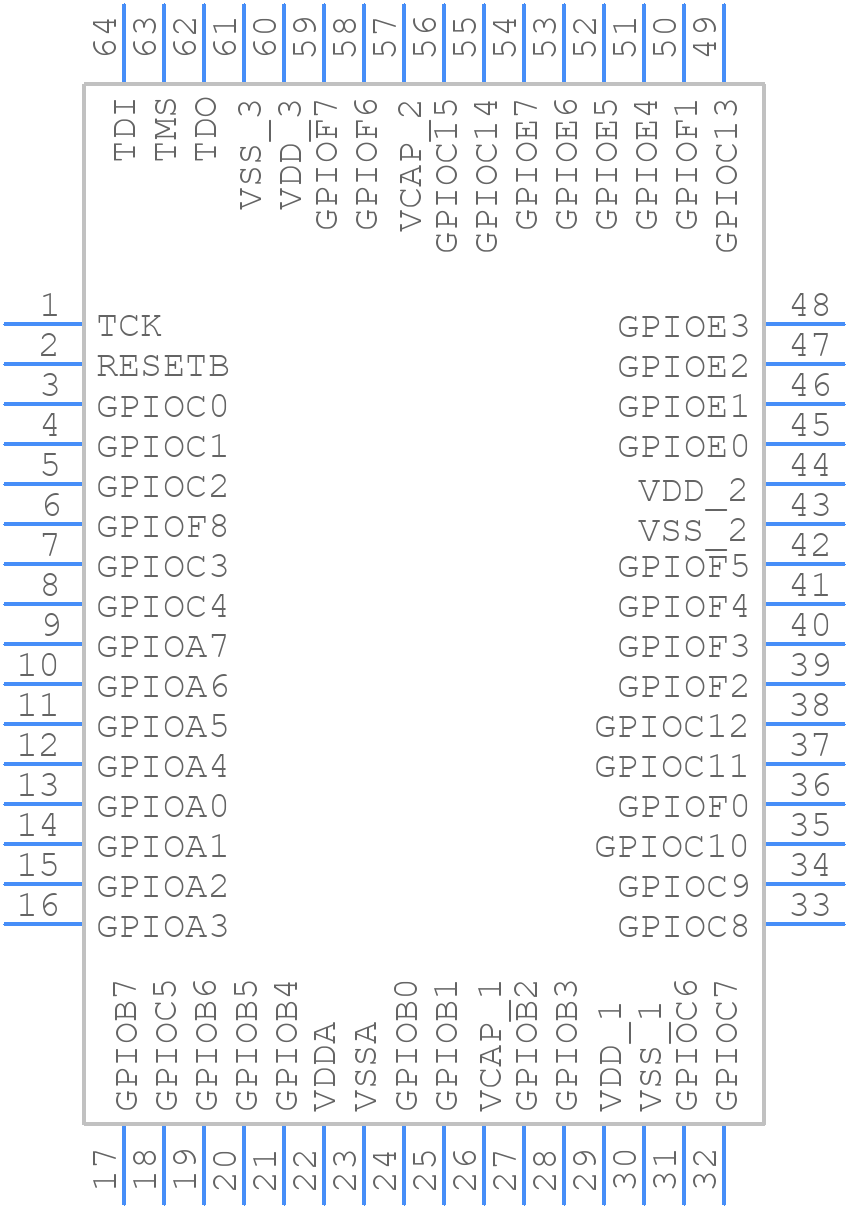

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC56F82748VLH Part Data Attributes

Parametric Data
MC56F82748VLH NXP Semiconductors
Buy Now Datasheet
Compare Parts:
MC56F82748VLH NXP Semiconductors MICROCONTROLLER
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NXP SEMICONDUCTORS
Package Description LQFP-64
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer NXP
Has ADC YES
Address Bus Width
Bit Size 32
CPU Family 56800E
Clock Frequency-Max 50 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
JESD-30 Code S-PQFP-G64
JESD-609 Code e3
Length 10 mm
Moisture Sensitivity Level 3
Number of I/O Lines 54
Number of Terminals 64
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP64,.47SQ,20
Package Shape SQUARE
Package Style FLATPACK
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 8192
ROM (words) 65536
ROM Programmability FLASH
Speed 100 MHz
Supply Current-Max 53.5 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3.3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 10 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
