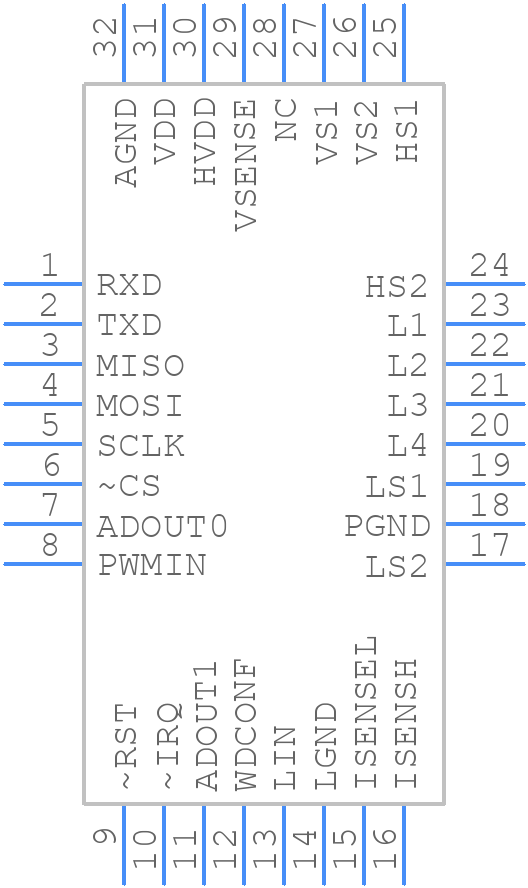

Part Symbol
-

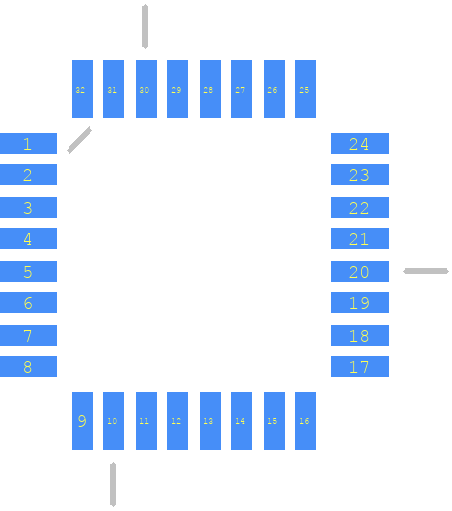

Footprint
-

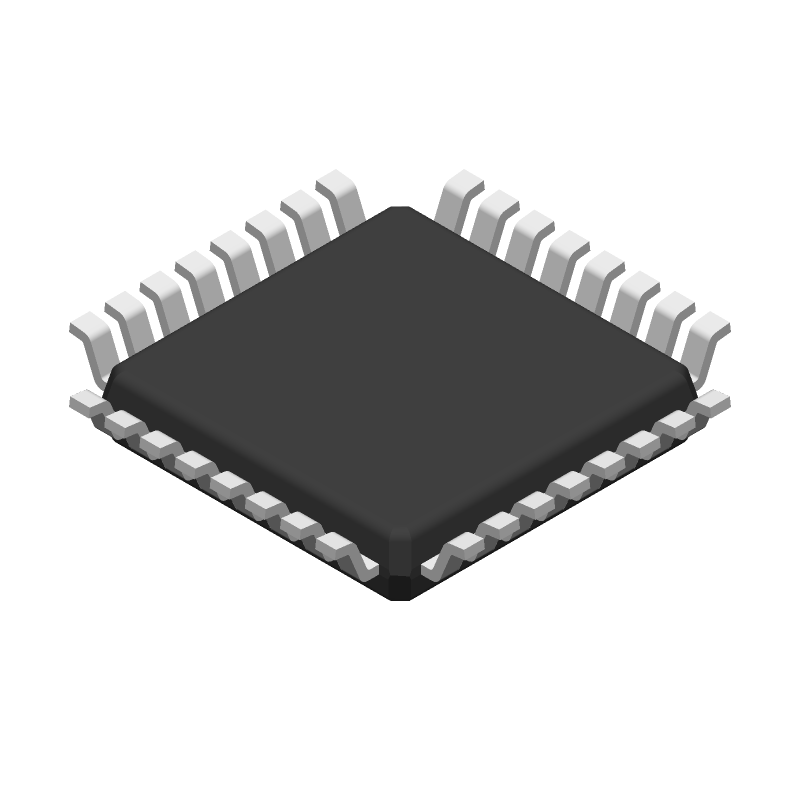

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC34912G5AC by NXP Semiconductors
Results Overview of MC34912G5AC by NXP Semiconductors
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC34912G5AC Information
MC34912G5AC by NXP Semiconductors is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MC34912G5AC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74P0377
|
Newark | Lin System Basis Chip, 100Kbps, Lqfp-32, Product Range:-, Ic Case/Package:Lqfp, No. Of Pins:32Pins, Supply Voltage Min:5.5V, Supply Voltage Max:27V, Protocol Supported:Lin, Supported Standards:Lin 2.0/2.1, Sae J2602-2 Rohs Compliant: Yes |Nxp MC34912G5AC RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.9800 / $3.0700 | Buy Now |
|
DISTI #
568-14517-ND
|
DigiKey | IC SYSTEM BASIS CHIP LIN 32-LQFP Min Qty: 1 Lead time: 26 Weeks Container: Tray |
230 In Stock |
|
$3.4676 / $5.4200 | Buy Now |
|
DISTI #
MC34912G5AC
|
Avnet Americas | Pref DRVR Quad 5.5V to 18V 32-Pin LQFP Tray - Trays (Alt: MC34912G5AC) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 26 Weeks, 0 Days Container: Tray | 0 |
|
$2.5510 / $2.9985 | Buy Now |
|
DISTI #
86007500
|
Verical | High Reliability Specialized Interface IC Automotive AEC-Q100 RoHS: Compliant Min Qty: 108 Package Multiple: 1 Date Code: 1401 | Americas - 478 |
|
$2.9500 / $3.5000 | Buy Now |
|
|
Rochester Electronics | System Basis Chip, LIN, 2x 5.0V/60&20mA LDOs, DC Motor Predriver, Isense, Enhanced EMC, QFP 32 RoHS: Compliant Status: End of Life / Last Time Buy Min Qty: 1 | 500 |
|
$2.3600 / $2.9400 | Buy Now |
Part Details for MC34912G5AC
MC34912G5AC CAD Models
MC34912G5AC Part Data Attributes
|
|
MC34912G5AC
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
MC34912G5AC
NXP Semiconductors
0.11A BUF OR INV BASED PRPHL DRVR, PQFP32
|
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Package Description | 7 X 7 MM, 1.40 MM HEIGHT, 0.80 MM PITCH, ROHS COMPLIANT, MS-026BBA, LQFP-32 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | NXP | |
| Built-in Protections | OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | S-PQFP-G32 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current Flow Direction | SOURCE AND SINK | |
| Output Peak Current Limit-Nom | 0.11 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LQFP | |
| Package Equivalence Code | QFP32,.35SQ,32 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Max | 18 V | |
| Supply Voltage-Min | 5.5 V | |
| Supply Voltage-Nom | 13.5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Turn-off Time | 10 µs | |
| Turn-on Time | 10 µs | |
| Width | 7 mm |
Alternate Parts for MC34912G5AC
This table gives cross-reference parts and alternative options found for MC34912G5AC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC34912G5AC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC34912G5AC | Freescale Semiconductor | Check for Price | 0.11A BUF OR INV BASED PRPHL DRVR, PQFP32, 7 X 7 MM, 1.40 MM HEIGHT, 0.80 MM PITCH, ROHS COMPLIANT, MS-026BBA, LQFP-32 | MC34912G5AC vs MC34912G5AC |
