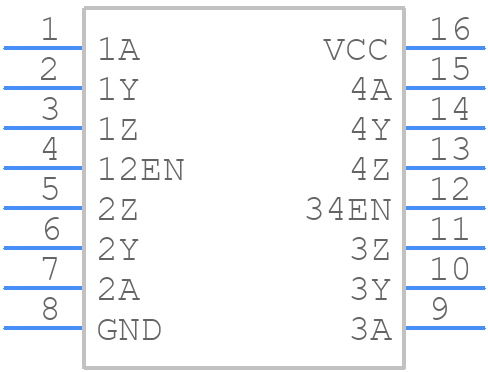

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC3487D by Texas Instruments
Results Overview of MC3487D by Texas Instruments
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC3487D Information
MC3487D by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| MC3487DR | Texas Instruments | Quadruple Differential Line Driver 16-SOIC 0 to 70 | |
| MC3487DE4 | Texas Instruments | Quadruple Differential Line Driver 16-SOIC 0 to 70 | |
| MC3487D | Texas Instruments | Quadruple Differential Line Driver 16-SOIC 0 to 70 |
Price & Stock for MC3487D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-MC3487D-ND
|
DigiKey | IC TRANSCEIVER 4/0 16SOIC Min Qty: 1 Lead time: 20 Weeks Container: Bulk MARKETPLACE PRODUCT |
19177 In Stock |
|
$0.8700 | Buy Now |
|
DISTI #
296-7039-5-ND
|
DigiKey | IC TRANSCEIVER 4/0 16SOIC Min Qty: 1 Lead time: 20 Weeks Container: Tube |
8497 In Stock |
|
$0.6776 / $1.4100 | Buy Now |
|
DISTI #
86007084
|
Verical | Quad Transmitter RS-422 16-Pin SOIC Tube RoHS: Compliant Min Qty: 358 Package Multiple: 1 | Americas - 15130 |
|
$1.0480 | Buy Now |
|
DISTI #
86004184
|
Verical | Quad Transmitter RS-422 16-Pin SOIC Tube RoHS: Compliant Min Qty: 358 Package Multiple: 1 Date Code: 0601 | Americas - 1850 |
|
$1.0480 | Buy Now |
|
DISTI #
85994213
|
Verical | Quad Transmitter RS-422 16-Pin SOIC Tube RoHS: Compliant Min Qty: 358 Package Multiple: 1 Date Code: 0501 | Americas - 1009 |
|
$1.0480 | Buy Now |
|
DISTI #
86006963
|
Verical | Quad Transmitter RS-422 16-Pin SOIC Tube RoHS: Compliant Min Qty: 358 Package Multiple: 1 Date Code: 1301 | Americas - 583 |
|
$1.0480 | Buy Now |
|
DISTI #
88043119
|
Verical | Quad Transmitter RS-422 16-Pin SOIC Tube RoHS: Compliant Min Qty: 358 Package Multiple: 1 Date Code: 1201 | Americas - 360 |
|
$1.0480 | Buy Now |
|
|
Bristol Electronics | 1646 |
|
RFQ | ||
|
|
Quest Components | IC,LINE DRIVER,4 DRIVER,BIPOLAR,SOP,16PIN,PLASTIC | 90 |
|
$0.3400 / $0.5100 | Buy Now |
|
|
Quest Components | IC,LINE DRIVER,4 DRIVER,BIPOLAR,SOP,16PIN,PLASTIC | 38 |
|
$0.5075 / $1.0150 | Buy Now |
Part Details for MC3487D
MC3487D CAD Models
MC3487D Part Data Attributes
|
|
MC3487D
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
MC3487D
Texas Instruments
Quadruple Differential Line Driver 16-SOIC 0 to 70
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Differential Output | YES | |
| Driver Number of Bits | 4 | |
| High Level Input Current-Max | 0.00005 A | |
| Input Characteristics | STANDARD | |
| Interface IC Type | LINE DRIVER | |
| Interface Standard | EIA-422-B; TIA-422-B; V.11 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 2 V | |
| Output Characteristics | 3-STATE | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 85 mA | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Supply Voltage1-Max | 5.25 V | |
| Supply Voltage1-Min | 4.75 V | |
| Supply Voltage1-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transmit Delay-Max | 20 ns | |
| Width | 3.9 mm |
Alternate Parts for MC3487D
This table gives cross-reference parts and alternative options found for MC3487D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC3487D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX3042BESE+ | Maxim Integrated Products | $5.5383 | Line Driver, 4 Func, 4 Driver, CMOS, PDSO16, 0.300 INCH, SOIC-16 | MC3487D vs MAX3042BESE+ |
| DS26LS31CM | Rochester Electronics LLC | Check for Price | Line Driver, 4 Func, 4 Driver, BIPolar, PDSO16, PLASTIC, SOP-16 | MC3487D vs DS26LS31CM |
| MC3487DE4 | Texas Instruments | Check for Price | Quadruple Differential Line Driver 16-SOIC 0 to 70 | MC3487D vs MC3487DE4 |
| DS26LS31CMX | National Semiconductor Corporation | Check for Price | IC QUAD LINE DRIVER, PDSO16, SOIC-16, Line Driver or Receiver | MC3487D vs DS26LS31CMX |
| MAX3042BCSE+ | Maxim Integrated Products | Check for Price | Line Driver, 4 Func, 4 Driver, CMOS, PDSO16, 0.300 INCH, SOIC-16 | MC3487D vs MAX3042BCSE+ |
| SN75ALS194DRG4 | Texas Instruments | Check for Price | QUAD LINE DRIVER, PDSO16, SOP-16 | MC3487D vs SN75ALS194DRG4 |
| MAX3042BESE+ | Analog Devices Inc | Check for Price | ±10kV ESD-Protected, Quad 5V RS-485/RS-422 Transmitters, 16-SOIC_N-150_MIL, 16 Pins, -40 to 85C | MC3487D vs MAX3042BESE+ |
| DS3487MX | National Semiconductor Corporation | Check for Price | IC QUAD LINE DRIVER, PDSO16, 0.150 INCH, PLASTIC, SOP-16, Line Driver or Receiver | MC3487D vs DS3487MX |
| DS3487M | Texas Instruments | Check for Price | QUAD LINE DRIVER, PDSO16 | MC3487D vs DS3487M |
| MAX3042BCSE-T | Maxim Integrated Products | Check for Price | Line Driver, 4 Func, 4 Driver, CMOS, PDSO16, 0.300 INCH, SOIC-16 | MC3487D vs MAX3042BCSE-T |
MC3487D Frequently Asked Questions (FAQ)
-
It is recommended to place the MC3487D close to the battery, use a solid ground plane, and keep the input and output traces separate to minimize EMI and noise. Additionally, use a 10uF capacitor between VCC and GND to filter out high-frequency noise.
-
Ensure the input voltage is within the recommended range (2.7V to 5.5V), and the EN pin is pulled high to enable the device. Also, make sure the input capacitor is properly sized and placed close to the VIN pin to filter out noise.
-
The MC3487D can deliver up to 1A of output current. To calculate the output current capability, consider the input voltage, output voltage, and the device's efficiency. Use the formula: Iout = (Vin - Vout) / (Rds(on) * (1 + ΔIout / Iout)), where Rds(on) is the on-state resistance and ΔIout is the output current ripple.
-
To optimize the MC3487D for low-power consumption, use a low-input voltage, minimize the output voltage, and use a high-value output capacitor. Additionally, use the shutdown mode (EN pin low) to reduce standby current to typically 1uA.
-
The MC3487D has a thermal shutdown feature that activates at 150°C. To prevent overheating, ensure good airflow, use a heat sink if necessary, and keep the device away from other heat sources. Monitor the device's temperature and adjust the layout and thermal design accordingly.
