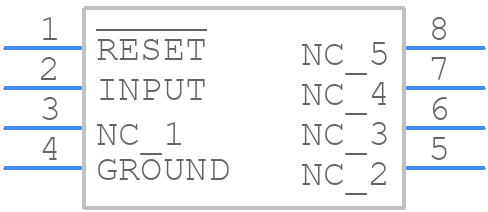

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC34064D-5G by onsemi
Results Overview of MC34064D-5G by onsemi
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
MC34064D-5G Information
MC34064D-5G by onsemi is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC34064D-5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96AC0743
|
Newark | Ana Under 5V Sense Crkt Rohs Compliant: Yes |Onsemi MC34064D-5G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 2830 |
|
$0.3340 / $0.8940 | Buy Now |
|
DISTI #
90W0710
|
Newark | Undervoltage Sensor, 4.5Vth, 8Soic, Threshold Voltage:4.61V, No. Of Supervisors/Monitors:1Monitors, Supply Voltage Min:1V, Supply Voltage Max:6.5V, Reset Type:Active-Low, Digital Ic Case:Soic, No. Of Pins:8Pins, Delay Time:-, Rohs Compliant: Yes |Onsemi MC34064D-5G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 696 |
|
$0.3170 / $1.4100 | Buy Now |
|
DISTI #
MC34064D-5GOS-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL 8SOIC Min Qty: 1 Lead time: 20 Weeks Container: Tube |
95 In Stock |
|
$0.3281 / $0.7300 | Buy Now |
|
DISTI #
MC34064D-5G
|
Avnet Americas | Undervoltage Sensor, Active-Low Reset, 1V-6.5Vin, SOIC-8 - Rail/Tube (Alt: MC34064D-5G) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Tube | 2830 |
|
$0.2605 / $0.2769 | Buy Now |
|
DISTI #
863-MC34064D-5G
|
Mouser Electronics | Supervisory Circuits 4.59V UnderVoltage Sensing Circuit RoHS: Compliant | 1884 |
|
$0.3170 / $1.4100 | Buy Now |
|
DISTI #
V36:1790_07291257
|
Arrow Electronics | Processor Supervisor 4.61V 1 Active Low/Open Collector 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 98 Package Multiple: 98 Lead time: 20 Weeks Date Code: 2401 | Americas - 635 |
|
$0.3066 / $0.4539 | Buy Now |
|
DISTI #
V79:2366_28988823
|
Arrow Electronics | Processor Supervisor 4.61V 1 Active Low/Open Collector 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2329 | Americas - 22 |
|
$0.3288 / $1.4072 | Buy Now |
|
DISTI #
70466334
|
RS | MC34064D-5G, Voltage Detector, Maximum of 5 V, 8-Pin SOIC Min Qty: 25 Package Multiple: 1 Container: Bulk | 0 |
|
$0.5700 / $0.6800 | RFQ |
|
|
Onlinecomponents.com | MC34064D-5G, Voltage Detector, Maximum of 5 V, 8-Pin SOIC | ON Semiconductor MC34064D-5G RoHS: Compliant | 0 |
|
$0.2851 / $0.3518 | Buy Now |
|
DISTI #
84440488
|
Verical | Processor Supervisor 4.61V 1 Active Low/Open Collector 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 98 Package Multiple: 98 Date Code: 2401 | Americas - 588 |
|
$0.3066 / $0.4539 | Buy Now |
Part Details for MC34064D-5G
MC34064D-5G CAD Models
MC34064D-5G Part Data Attributes
|
|
MC34064D-5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC34064D-5G
onsemi
Voltage Supervisor, Undervoltage Sensing Circuit, SOIC-8 Narrow Body, 98-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-8 Narrow Body | |
| Pin Count | 8 | |
| Manufacturer Package Code | 751-07 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE DETECTOR | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6.5 V | |
| Supply Voltage-Min (Vsup) | 1 V | |
| Supply Voltage-Nom (Vsup) | 4 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +4.6V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for MC34064D-5G
This table gives cross-reference parts and alternative options found for MC34064D-5G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC34064D-5G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC34064D-5 | onsemi | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8, PLASTIC, SO-8 | MC34064D-5G vs MC34064D-5 |
MC34064D-5G Frequently Asked Questions (FAQ)
-
A good PCB layout for the MC34064D-5G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value to maintain stability. It's also recommended to add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
-
The MC34064D-5G is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation according to the ambient temperature to ensure reliable operation.
-
Yes, the MC34064D-5G is suitable for high-reliability and automotive applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow the recommended application guidelines and ensure that the device is operated within its specified parameters.
-
To troubleshoot issues with the MC34064D-5G, start by verifying that the input voltage is within the recommended range and that the output voltage is within the expected range. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for any unusual voltage or current waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
