MC33275ST-3.3T3G Information
MC33275ST-3.3T3G by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC33275ST-3.3T3G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AM3847
|
Newark | Ana 0.3A 3.3V Ldo Vreg |Onsemi MC33275ST-3.3T3G RoHS: Not Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 4000 |
|
$0.1690 | Buy Now |
|
DISTI #
26K4026
|
Newark | Ldo Voltage Regulator, Fixed, 3.3V, 0.3A, Sot-223-3, Output Type:Fixed, Input Voltage Min:4.3V, Input Voltage Max:13V, No. Of Outputs:1Outputs, Output Voltage Min:-, Output Voltage Max:-, Polarity:Positive Output, No. Of Pins:3Pins Rohs Compliant: Yes |Onsemi MC33275ST-3.3T3G RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2410 / $0.3140 | Buy Now |
|
DISTI #
06M5736
|
Newark | Ldo Voltage Regulator, Fixed, 3.3V, 0.3A, Sot-223-3, Output Type:Fixed, Input Voltage Min:4.3V, Input Voltage Max:13V, No. Of Outputs:1Outputs, Output Voltage Min:-, Output Voltage Max:-, Polarity:Positive Output, No. Of Pins:3Pins Rohs Compliant: Yes |Onsemi MC33275ST-3.3T3G RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.3490 | Buy Now |
|
DISTI #
MC33275ST-3.3T3GOSCT-ND
|
DigiKey | IC REG LINEAR 3.3V 300MA SOT-223 Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3159 In Stock |
|
$0.2334 / $1.2000 | Buy Now |
|
DISTI #
MC33275ST-3.3T3G
|
Avnet Americas | LDO Regulator Pos 3.3V 0.3A 4-Pin(3+Tab) SOT-223 T/R - Tape and Reel (Alt: MC33275ST-3.3T3G) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 9 Weeks, 0 Days Container: Reel | 400048000 Factory Stock |
|
$0.1550 / $0.1689 | Buy Now |
|
DISTI #
863-MC33275ST-3.3T3G
|
Mouser Electronics | LDO Voltage Regulators 3.3V 300mA RoHS: Compliant | 78551 |
|
$0.2420 / $0.5500 | Buy Now |
|
DISTI #
E02:0323_00018187
|
Arrow Electronics | LDO Regulator Pos 3.3V 0.3A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 9 Weeks | Europe - 4000 |
|
$0.1594 / $0.1692 | Buy Now |
|
DISTI #
V72:2272_07295571
|
Arrow Electronics | LDO Regulator Pos 3.3V 0.3A 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2434 Container: Cut Strips | Americas - 3450 |
|
$0.2043 / $0.3422 | Buy Now |
|
DISTI #
70340056
|
RS | LDO Regulator 3.3V 1% 300mA SOT223 Min Qty: 10 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4500 / $0.5200 | RFQ |
|
|
Future Electronics | MC33275 Series 300 mA 3.3 V Fixed Output LDO Voltage Regulator - SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 9 Weeks Container: Reel | 80000Reel |
|
$0.1600 / $0.1670 | Buy Now |
Part Details for MC33275ST-3.3T3G

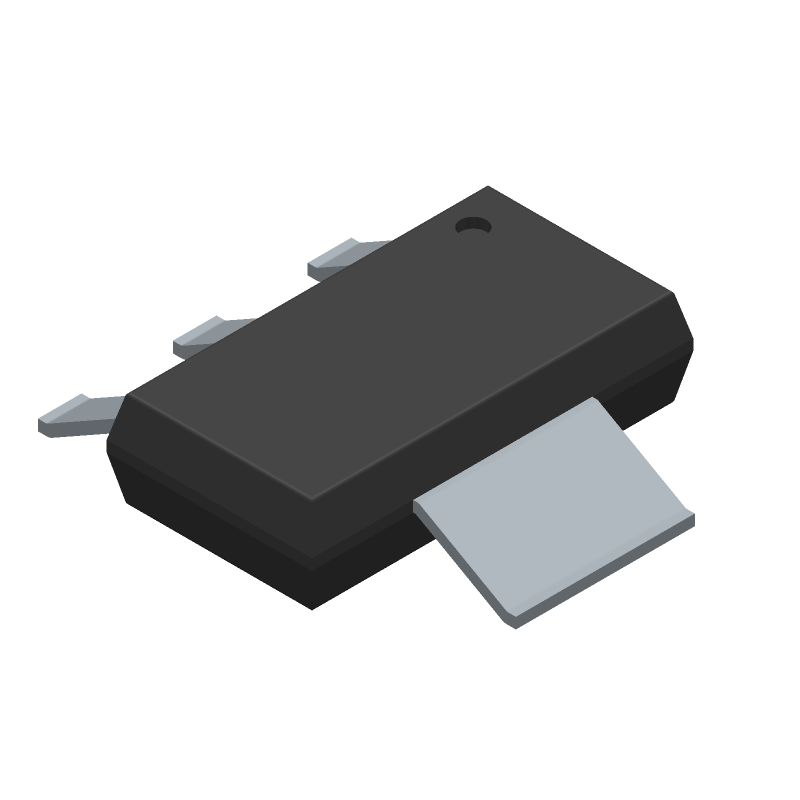

MC33275ST-3.3T3G CAD Models
MC33275ST-3.3T3G Part Data Attributes
|
|
MC33275ST-3.3T3G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC33275ST-3.3T3G
onsemi
LDO Regulator, 300 mA, High PSRR Vout: 3.3 V, SOT-223 (TO-261) 4 LEAD, 4000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-223 (TO-261) 4 LEAD | |
| Pin Count | 4 | |
| Manufacturer Package Code | 0.0318 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.5 V | |
| Dropout Voltage1-Nom | 0.26 V | |
| Input Voltage Absolute-Max | 13 V | |
| Input Voltage-Max | 12 V | |
| Input Voltage-Min | 4.3 V | |
| JESD-30 Code | R-PSSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Line Regulation-Max | 0.01% | |
| Load Regulation-Max | 0.025% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.3 A | |
| Output Voltage1-Max | 3.366 V | |
| Output Voltage1-Min | 3.234 V | |
| Output Voltage1-Nom | 3.3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOT-223 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.3 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 3.5 mm |
