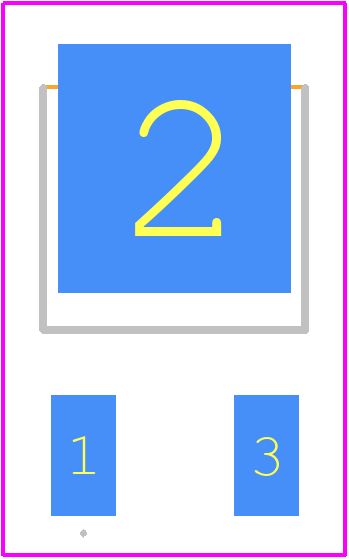

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC33275DT-2.5RKG by onsemi
Results Overview of MC33275DT-2.5RKG by onsemi
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MC33275DT-2.5RKG Information
MC33275DT-2.5RKG by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC33275DT-2.5RKG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26K4021
|
Newark | Ic, volt Regulator, fixed,+2.5V, bipolar, sip,3Pin, plastic Rohs Compliant: Yes |Onsemi MC33275DT-2.5RKG RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2710 / $0.3620 | Buy Now |
|
DISTI #
14AC4514
|
Newark | Ldo, Fixed, 2.5V, 0.3A, To-252-3 Rohs Compliant: Yes |Onsemi MC33275DT-2.5RKG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.3740 / $1.3000 | Buy Now |
|
DISTI #
26AM3845
|
Newark | Ana 0.3A 2.5V Ldo Vreg Rohs Compliant: Yes |Onsemi MC33275DT-2.5RKG RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1930 | Buy Now |
|
DISTI #
MC33275DT-2.5RKGOSCT-ND
|
DigiKey | IC REG LINEAR 2.5V 300MA DPAK Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
4331 In Stock |
|
$0.2626 / $1.3000 | Buy Now |
|
DISTI #
MC33275DT-2.5RKG
|
Avnet Americas | LDO Regulator Pos 2.5V 0.3A 3-Pin(2+Tab) DPAK T/R - Tape and Reel (Alt: MC33275DT-2.5RKG) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 125006637 Factory Stock |
|
$0.1827 / $0.1926 | Buy Now |
|
DISTI #
MC33275DT-2.5RKG
|
Avnet Americas | LDO Regulator Pos 2.5V 0.3A 3-Pin(2+Tab) DPAK T/R - Tape and Reel (Alt: MC33275DT-2.5RKG) RoHS: Compliant Min Qty: 1563 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 6637 Partner Stock |
|
$0.3556 / $0.4103 | Buy Now |
|
DISTI #
863-MC33275DT-2.5RKG
|
Mouser Electronics | LDO Voltage Regulators 2.5V 300mA RoHS: Compliant | 1867 |
|
$0.2620 / $1.3000 | Buy Now |
|
|
Onlinecomponents.com | LDO Regulator, 300 mA, High PSRR Vout: 2.5 V RoHS: Compliant | 0 |
|
$0.2503 / $0.2729 | Buy Now |
|
|
Quest Components | IC,VOLT REGULATOR,FIXED,+2.5V,BIPOLAR,SIP,3PIN,PLASTIC | 15 |
|
$0.4875 / $0.5850 | Buy Now |
|
DISTI #
MC33275DT-2.5RKG
|
Avnet Silica | LDO Regulator Pos 25V 03A 3Pin2Tab DPAK TR (Alt: MC33275DT-2.5RKG) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for MC33275DT-2.5RKG
MC33275DT-2.5RKG CAD Models
MC33275DT-2.5RKG Part Data Attributes
|
|
MC33275DT-2.5RKG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC33275DT-2.5RKG
onsemi
LDO Regulator, 300 mA, High PSRR Vout: 2.5 V, DPAK (SINGLE GAUGE) TO-252, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | DPAK (SINGLE GAUGE) TO-252 | |
| Pin Count | 3 | |
| Manufacturer Package Code | 369C | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.5 V | |
| Dropout Voltage1-Nom | 0.26 V | |
| Input Voltage Absolute-Max | 13 V | |
| Input Voltage-Max | 12 V | |
| Input Voltage-Min | 3.5 V | |
| JESD-30 Code | R-PSSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 6.54 mm | |
| Line Regulation-Max | 0.01% | |
| Load Regulation-Max | 0.025% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.3 A | |
| Output Voltage1-Max | 2.55 V | |
| Output Voltage1-Min | 2.45 V | |
| Output Voltage1-Nom | 2.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-252 | |
| Package Equivalence Code | SMSIP3H,.38,90TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 2.38 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.29 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 6.16 mm |
