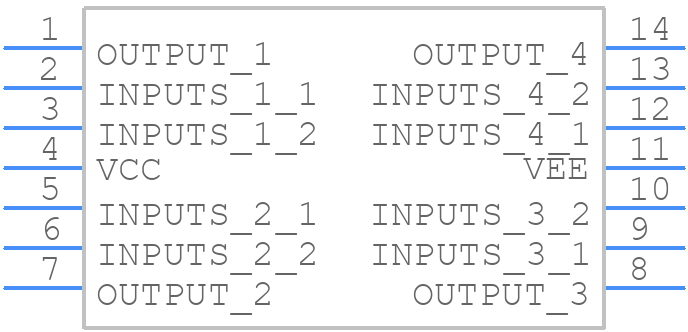

Part Symbol
-

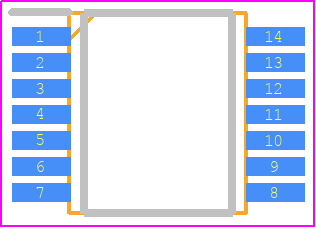

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC33274ADTBR2G by onsemi
Results Overview of MC33274ADTBR2G by onsemi
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MC33274ADTBR2G Information
MC33274ADTBR2G by onsemi is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for MC33274ADTBR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
14AC4513
|
Newark | Op-Amp, 24Mhz, 10V/Us, Tssop-14, No. Of Amplifiers:4 Amplifier, Bandwidth:24Mhz, Slew Rate:10V/Μs, Supply Voltage Range:3V To 36V, Amplifier Case Style:Tssop, No. Of Pins:14Pins, Operating Temperature Min:-40°C, Operating Temperaturerohs Compliant: Yes |Onsemi MC33274ADTBR2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 12259 |
|
$0.7200 / $2.0200 | Buy Now |
|
DISTI #
57M9768
|
Newark | Ic, operational Amplifier, quad, bipolar, sop,14Pin, plastic |Onsemi MC33274ADTBR2G RoHS: Not Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5030 / $0.6820 | Buy Now |
|
DISTI #
MC33274ADTBR2GOSCT-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 14TSSOP Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2901 In Stock |
|
$0.4950 / $2.0200 | Buy Now |
|
DISTI #
MC33274ADTBR2G
|
Avnet Americas | Operational Amplifier, 4 Channels, 24 MHz, 10 V/us, 3V to 36V, ? 1.5V to ? 18V, 14 Pins, WTSSOP - Tape and Reel (Alt: MC33274ADTBR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.4623 / $0.4720 | Buy Now |
|
DISTI #
863-MC33274ADTBR2G
|
Mouser Electronics | Operational Amplifiers - Op Amps ANA HI-SPD/S.S. QUAD O.A RoHS: Compliant | 1665 |
|
$0.4950 / $2.0200 | Buy Now |
|
|
Onlinecomponents.com | Operational Amplifiers, Single Supply, High Slew Rate, Low Input Offset Voltage, Quad RoHS: Compliant | 0 |
|
$0.4743 / $0.5080 | Buy Now |
|
DISTI #
86008063
|
Verical | Op Amp Quad High Slew Rate Amplifier ±18V/36V 14-Pin TSSOP W T/R RoHS: Compliant Min Qty: 448 Package Multiple: 1 Date Code: 2101 | Americas - 3380 |
|
$0.6958 / $0.8383 | Buy Now |
|
DISTI #
86007311
|
Verical | Op Amp Quad High Slew Rate Amplifier ±18V/36V 14-Pin TSSOP W T/R RoHS: Compliant Min Qty: 448 Package Multiple: 1 Date Code: 2201 | Americas - 2953 |
|
$0.6958 / $0.8383 | Buy Now |
|
|
Rochester Electronics | MC33274A - Operational Amplifiers, Single Supply, High Slew Rate, Low Input Offset Voltage, Quad RoHS: Compliant Status: Active Min Qty: 1 | 6333 |
|
$0.4158 / $0.6706 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ |
Part Details for MC33274ADTBR2G
MC33274ADTBR2G CAD Models
MC33274ADTBR2G Part Data Attributes
|
|
MC33274ADTBR2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC33274ADTBR2G
onsemi
Operational Amplifiers, Single Supply, High Slew Rate, Low Input Offset Voltage, Quad, TSSOP-14, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TSSOP-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | 948G | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.8 µA | |
| Bias Current-Max (IIB) @25C | 0.65 µA | |
| Common-mode Reject Ratio-Nom | 100 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 1800 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Low-Offset | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 8 V/us | |
| Slew Rate-Nom | 10 V/us | |
| Supply Current-Max | 12 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 5500 | |
| Voltage Gain-Min | 19950 | |
| Width | 3.9 mm |
Alternate Parts for MC33274ADTBR2G
This table gives cross-reference parts and alternative options found for MC33274ADTBR2G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC33274ADTBR2G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC33274ADG | onsemi | Check for Price | Operational Amplifiers, Single Supply, High Slew Rate, Low Input Offset Voltage, Quad, SOIC-14 NB, 55-TUBE | MC33274ADTBR2G vs MC33274ADG |
| TL054ACD | Texas Instruments | Check for Price | Quad, 30-V, 3.3-MHz, high slew rate (20-V/µs), 0.8-mV offset voltage, In to V+, JFET-input op amp 14-SOIC 0 to 70 | MC33274ADTBR2G vs TL054ACD |
MC33274ADTBR2G Frequently Asked Questions (FAQ)
-
A good PCB layout for the MC33274ADTBR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and inductance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 1uF capacitance is recommended for the output capacitor. Also, avoid using long traces and minimize the distance between the device and the capacitors.
-
The MC33274ADTBR2G is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
-
Yes, the MC33274ADTBR2G is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended operating conditions, PCB layout guidelines, and component selection to ensure the device meets the required reliability and performance standards.
-
To troubleshoot issues with the MC33274ADTBR2G, start by verifying the PCB layout and component selection. Check for any signs of overheating, and ensure that the input and output capacitors are of high quality and have low ESR. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillations or noise. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
