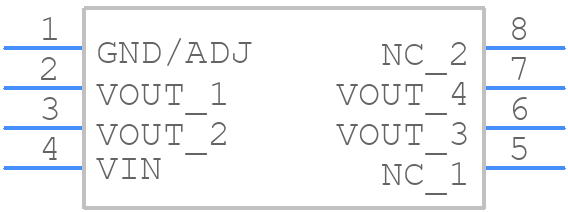

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC33269DR2-5.0G by onsemi
Results Overview of MC33269DR2-5.0G by onsemi
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MC33269DR2-5.0G Information
MC33269DR2-5.0G by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC33269DR2-5.0G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13AC3635
|
Newark | Ldo, Fixed, 5V, 0.8A, Soic-8 Rohs Compliant: Yes |Onsemi MC33269DR2-5.0G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1707 |
|
$0.4010 / $0.7900 | Buy Now |
|
DISTI #
71J5525
|
Newark | Ic, volt Regulator, fixed,+5V, bipolar, sop,8Pin, plastic Rohs Compliant: Yes |Onsemi MC33269DR2-5.0G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2700 / $0.3600 | Buy Now |
|
DISTI #
MC33269DR2-5.0GOSCT-ND
|
DigiKey | IC REG LINEAR 5V 800MA 8-SOIC Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2415 In Stock |
|
$0.2785 / $0.6600 | Buy Now |
|
DISTI #
MC33269DR2-5.0G
|
Avnet Americas | LDO Regulator Pos 5V 0.8A 8-Pin SOIC N T/R - Tape and Reel (Alt: MC33269DR2-5.0G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1415 / $0.1492 | Buy Now |
|
DISTI #
863-MC33269DR2-5.0G
|
Mouser Electronics | LDO Voltage Regulators 5.0V ADJ 800mA RoHS: Compliant | 2723 |
|
$0.2710 / $0.6600 | Buy Now |
|
DISTI #
E02:0323_00079469
|
Arrow Electronics | LDO Regulator Pos 5V 0.8A 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks | Europe - 2500 |
|
$0.2565 / $0.2875 | Buy Now |
|
DISTI #
70340040
|
RS | MC33269DR2-5.0G,4 LDO Voltage Regulator,800mA,5V 1%,Maximum of 20 Vin,8-Pin SOIC Min Qty: 10 Package Multiple: 1 Container: Bulk | 0 |
|
$0.6400 / $0.7600 | RFQ |
|
|
Onlinecomponents.com | MC33269 Series 800 mA 5 V Fixed Output SMT LDO Regulator - SOIC-8 RoHS: Compliant | 0 |
|
$0.2490 / $0.2714 | Buy Now |
|
DISTI #
64043235
|
Verical | LDO Regulator Pos 5V 0.8A 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 2500 |
|
$0.2465 | Buy Now |
|
DISTI #
85994519
|
Verical | LDO Regulator Pos 5V 0.8A 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 848 Package Multiple: 1 Date Code: 2201 | Americas - 1470 |
|
$0.4425 | Buy Now |
Part Details for MC33269DR2-5.0G
MC33269DR2-5.0G CAD Models
MC33269DR2-5.0G Part Data Attributes
|
|
MC33269DR2-5.0G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC33269DR2-5.0G
onsemi
LDO Regulator, 800 mA Vout: 5.0 V, SOIC-8 Narrow Body, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-8 Narrow Body | |
| Pin Count | 8 | |
| Manufacturer Package Code | 751-07 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 1.35 V | |
| Dropout Voltage1-Nom | 1.1 V | |
| Input Voltage Absolute-Max | 20 V | |
| Input Voltage-Max | 20 V | |
| Input Voltage-Min | 6.5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Line Regulation-Max | 0.015% | |
| Load Regulation-Max | 0.025% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.8 A | |
| Output Voltage1-Max | 5.1 V | |
| Output Voltage1-Min | 4.9 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 3.9 mm |
Alternate Parts for MC33269DR2-5.0G
This table gives cross-reference parts and alternative options found for MC33269DR2-5.0G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC33269DR2-5.0G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC33269D-5.0 | Motorola Mobility LLC | Check for Price | 5V FIXED POSITIVE LDO REGULATOR, 1.35V DROPOUT, PDSO8, PLASTIC, SOP-8 | MC33269DR2-5.0G vs MC33269D-5.0 |
| MC33269D-5.0 | onsemi | Check for Price | 5V FIXED POSITIVE LDO REGULATOR, 1.35V DROPOUT, PDSO8, SOP-8 | MC33269DR2-5.0G vs MC33269D-5.0 |
| MC33269D-5.0R2 | onsemi | Check for Price | IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 1.35 V DROPOUT, PDSO8, SOP-8, Fixed Positive Single Output LDO Regulator | MC33269DR2-5.0G vs MC33269D-5.0R2 |
MC33269DR2-5.0G Frequently Asked Questions (FAQ)
-
A good PCB layout for the MC33269DR2-5.0G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type. Additionally, consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
-
The MC33269DR2-5.0G is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation in your design.
-
No, the MC33269DR2-5.0G is specifically designed for a maximum input voltage of 5.0V. Exceeding this voltage may damage the device or affect its performance. If you need a higher input voltage, consider using a different device or adding a voltage regulator to step down the input voltage.
-
To calculate the power dissipation, you need to consider the input voltage, output voltage, output current, and the device's efficiency. Use the following formula: Pd = (Vin - Vout) x Iout / η, where Pd is the power dissipation, Vin is the input voltage, Vout is the output voltage, Iout is the output current, and η is the device's efficiency (typically around 90% for the MC33269DR2-5.0G).
