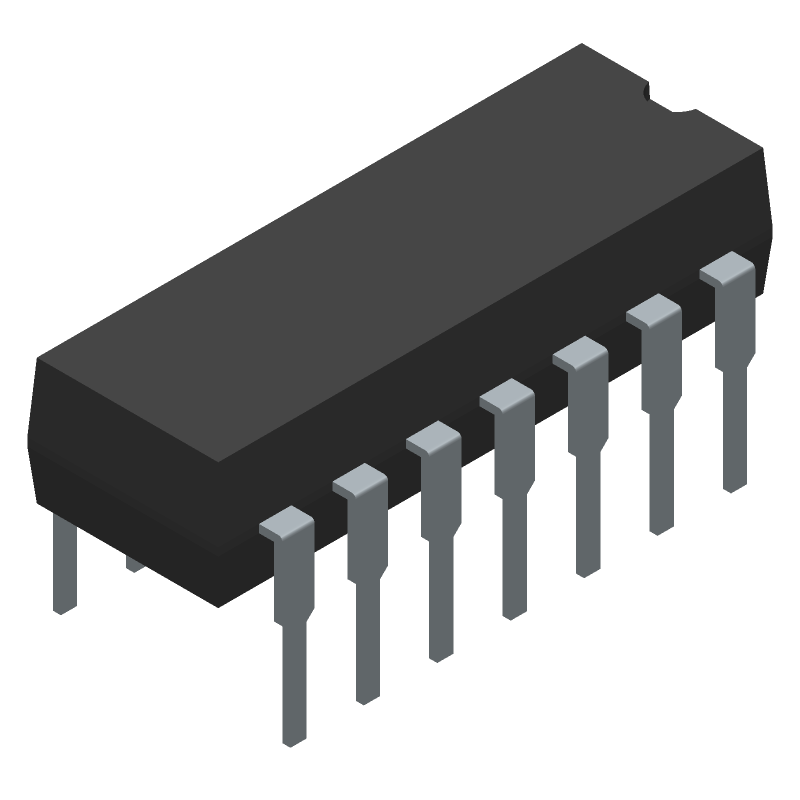

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC33074APG by onsemi
Results Overview of MC33074APG by onsemi
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MC33074APG Information
MC33074APG by onsemi is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for MC33074APG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42K0574
|
Newark | Op Amp, 4.5Mhz, 13V/Us, Dip-14, No. Of Channels:4Channels, Gain Bandwidth Product:4.5Mhz, Supply Voltage Range:3V To 44V, Ic Case/Package:Dip, No. Of Pins:14Pins, Amplifier Type:Wideband, Rail To Rail:-, Input Offset Voltage:500Μv Rohs Compliant: Yes |Onsemi MC33074APG RoHS: Compliant Min Qty: 391 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
ComSIT USA | SINGLE SUPPLY 3.0 VOLTS TO 44 VOLTS OPERATIONAL AMPLIFIER Operational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, PDIP14 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
MC33074APG
|
Avnet Silica | OP Amp Quad GP 22V44V 14Pin PDIP Rail (Alt: MC33074APG) RoHS: Compliant Min Qty: 25 Package Multiple: 25 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for MC33074APG
MC33074APG CAD Models
MC33074APG Part Data Attributes
|
|
MC33074APG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC33074APG
onsemi
Operational Amplifier, Single Supply 3.0 V to 44 V, Quad, PDIP-14, 25-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | PDIP-14 | |
| Package Description | DIP-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | 646-06 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | onsemi | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.7 µA | |
| Bias Current-Max (IIB) @25C | 0.5 µA | |
| Common-mode Reject Ratio-Nom | 97 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 5000 µV | |
| JESD-30 Code | R-PDIP-T14 | |
| JESD-609 Code | e3 | |
| Length | 18.86 mm | |
| Low-Offset | NO | |
| Neg Supply Voltage Limit-Max | -22 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | RAIL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 4.69 mm | |
| Slew Rate-Min | 8 V/us | |
| Slew Rate-Nom | 10 V/us | |
| Supply Current-Max | 11.2 mA | |
| Supply Voltage Limit-Max | 22 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 4500 | |
| Voltage Gain-Min | 25000 | |
| Width | 7.62 mm |
Alternate Parts for MC33074APG
This table gives cross-reference parts and alternative options found for MC33074APG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC33074APG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC33074AP | Motorola Semiconductor Products | Check for Price | Operational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, PDIP14, PLASTIC, DIP-14 | MC33074APG vs MC33074AP |
MC33074APG Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC33074APG is 8V to 18V, with a typical voltage of 12V.
-
To ensure stable operation in high-temperature environments, it is recommended to use a heat sink and ensure good thermal conductivity between the device and the heat sink. Additionally, reducing the power supply voltage and minimizing the output current can help reduce the device's temperature.
-
The maximum output current that the MC33074APG can provide is 1.5A, but this can be limited by the internal resistance of the device and the output voltage.
-
To protect the MC33074APG from overvoltage and undervoltage conditions, it is recommended to use a voltage regulator or a voltage supervisor circuit to regulate the input voltage and prevent damage to the device.
-
The enable pin (EN) on the MC33074APG is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it is low, the device is disabled.
