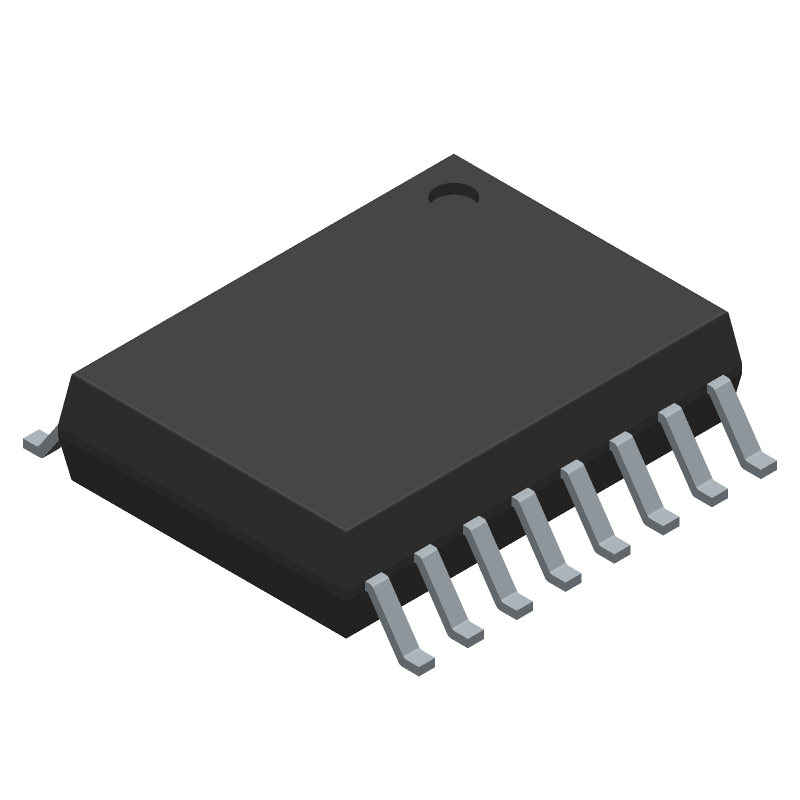

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC14518BDWG by onsemi
Results Overview of MC14518BDWG by onsemi
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC14518BDWG Information
MC14518BDWG by onsemi is a Counter.
Counters are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC14518BDWG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26K3957
|
Newark | Ic, counter, up, decade, cmos, sop,16Pin, plastic Rohs Compliant: Yes |Onsemi MC14518BDWG RoHS: Compliant Min Qty: 517 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.4180 / $0.5990 | Buy Now |
|
DISTI #
1990-MC14518BDWG-ND
|
DigiKey | IC BCD COUNTER DUAL 4BIT 16SOIC Min Qty: 1 Lead time: 9 Weeks Container: Tube, Tube |
827 In Stock |
|
$0.4038 / $1.7700 | Buy Now |
|
DISTI #
MC14518BDWG
|
Avnet Americas | Counter, BCD, Up, MC145, 8 MHz, Max Count 15, 3 V to 18 V, 16 Pins, WSOIC - Rail/Tube (Alt: MC14518BDWG) RoHS: Compliant Min Qty: 47 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Tube | 72389306 Factory Stock |
|
$0.2880 / $0.3038 | Buy Now |
|
DISTI #
863-MC14518BDWG
|
Mouser Electronics | Counter Shift Registers 3-18V Dual BCD Up RoHS: Compliant | 308 |
|
$0.4030 / $1.6700 | Buy Now |
|
DISTI #
E02:0323_00079007
|
Arrow Electronics | Counter Dual 4-Bit Decade UP 16-Pin SOIC W Tube RoHS: Compliant Min Qty: 47 Package Multiple: 47 Lead time: 9 Weeks Date Code: 2449 | Europe - 1786 |
|
$0.3709 / $0.5330 | Buy Now |
|
DISTI #
V79:2366_26238651
|
Arrow Electronics | Counter Dual 4-Bit Decade UP 16-Pin SOIC W Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1747 | Americas - 2 |
|
$0.2991 / $0.5271 | Buy Now |
|
DISTI #
70466289
|
RS | MC14518BDWG Dual 4-stage BCD Counter, Up Counter, 3 - 18 V, 16-Pin SOIC W Min Qty: 20 Package Multiple: 1 Container: Bulk | 0 |
|
$1.0800 / $1.2600 | RFQ |
|
|
Onlinecomponents.com | Dual BCD Up Counter RoHS: Compliant | 0 |
|
$0.3765 / $0.4657 | Buy Now |
|
DISTI #
85998042
|
Verical | Counter Dual 4-Bit Decade UP 16-Pin SOIC W Tube RoHS: Compliant Min Qty: 568 Package Multiple: 1 Date Code: 2101 | Americas - 10434 |
|
$0.6605 | Buy Now |
|
DISTI #
86006504
|
Verical | Counter Dual 4-Bit Decade UP 16-Pin SOIC W Tube RoHS: Compliant Min Qty: 568 Package Multiple: 1 Date Code: 0701 | Americas - 4230 |
|
$0.6605 | Buy Now |
Part Details for MC14518BDWG
MC14518BDWG CAD Models
MC14518BDWG Part Data Attributes
|
|
MC14518BDWG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC14518BDWG
onsemi
Dual BCD Up Counter, SO-16 WB, 47-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SO-16 WB | |
| Package Description | SOIC-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 751G-03 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Count Direction | UP | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | DECADE COUNTER | |
| Max Frequency@Nom-Sup | 1500000 Hz | |
| Max I(ol) | 0.00064 A | |
| Mode of Operation | SYNCHRONOUS | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 560 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 7.5 mm | |
| fmax-Min | 4 MHz |
MC14518BDWG Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC14518BDWG is 2.7V to 5.5V.
-
To ensure reliable operation in high-temperature environments, it is recommended to operate the device within the specified temperature range (-40°C to 125°C) and ensure proper thermal management, such as using a heat sink or thermal pad.
-
The maximum clock frequency supported by the MC14518BDWG is 2.5 MHz.
-
The MC14518BDWG can be interfaced with a microcontroller using a serial interface, such as SPI or I2C. The specific interface protocol and pin connections will depend on the microcontroller and system design.
-
The power consumption of the MC14518BDWG depends on the operating frequency and voltage. Typical power consumption is around 1.5 mA at 2.5V and 1 MHz clock frequency.
