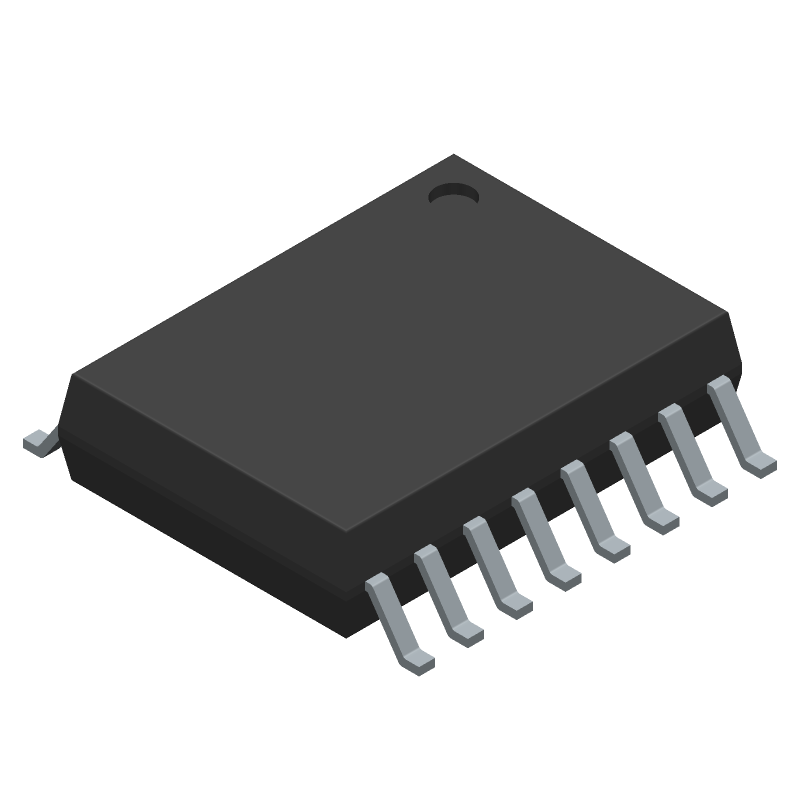

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC14517BDWR2G by onsemi
Results Overview of MC14517BDWR2G by onsemi
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Space Technology
Aerospace and Defense
Automotive
MC14517BDWR2G Information
MC14517BDWR2G by onsemi is a Shift Register.
Shift Registers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC14517BDWR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
54AH9164
|
Newark | Static Shift Register, Dual, Wsoic-16 Rohs Compliant: Yes |Onsemi MC14517BDWR2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 246 |
|
$0.8700 / $1.5900 | Buy Now |
|
DISTI #
26K3956
|
Newark | Ic, shift Register, cmos, sop,16Pin, plastic |Onsemi MC14517BDWR2G RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5990 / $0.8040 | Buy Now |
|
DISTI #
MC14517BDWR2GOSCT-ND
|
DigiKey | IC SHIFT REG DUAL 64BIT 16-SOIC Min Qty: 1 Lead time: 9 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
4896 In Stock |
|
$0.5981 / $1.3700 | Buy Now |
|
DISTI #
MC14517BDWR2G
|
Avnet Americas | Shift Register, MC14517B, Serial to Parallel, 2 Element, 64 -Bit, 16 Pins, WSOIC - Tape and Reel (Alt: MC14517BDWR2G) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 9 Weeks, 0 Days Container: Reel | 3000 |
|
$0.3312 / $0.3513 | Buy Now |
|
DISTI #
863-MC14517BDWR2G
|
Mouser Electronics | Counter Shift Registers 3-18V Dual 64-Bit Static Shift RoHS: Compliant | 7439 |
|
$0.5980 / $2.3000 | Buy Now |
|
DISTI #
E02:0323_00079005
|
Arrow Electronics | Shift Register Dual 64-Bit Serial to Parallel 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 9 Weeks Date Code: 2503 | Europe - 1000 |
|
$2.0673 / $2.1677 | Buy Now |
|
|
Onlinecomponents.com | Shift Register Dual 64-Bit Serial to Parallel 16-Pin SOIC W T/R - Tape and Reel RoHS: Compliant | 0 |
|
$0.5700 / $0.6470 | Buy Now |
|
DISTI #
85995344
|
Verical | Shift Register Dual 64-Bit Serial to Parallel 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 371 Package Multiple: 1 Date Code: 2101 | Americas - 11603 |
|
$1.0129 | Buy Now |
|
DISTI #
85996673
|
Verical | Shift Register Dual 64-Bit Serial to Parallel 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 371 Package Multiple: 1 Date Code: 2001 | Americas - 930 |
|
$1.0129 | Buy Now |
|
|
Bristol Electronics | 168 |
|
RFQ |
Part Details for MC14517BDWR2G
MC14517BDWR2G CAD Models
MC14517BDWR2G Part Data Attributes
|
|
MC14517BDWR2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC14517BDWR2G
onsemi
Dual 64-Bit Static Shift Register, SO-16 WB, 1000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SO-16 WB | |
| Package Description | SOIC-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 751G-03 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | 16-BIT, 32-BIT AND 48-BIT OUTPUT ALSO AVAILABLE | |
| Count Direction | RIGHT | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | SERIAL IN SERIAL OUT | |
| Max Frequency@Nom-Sup | 1500000 Hz | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 64 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 770 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 7.5 mm | |
| fmax-Min | 5.3 MHz |
MC14517BDWR2G Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC14517BDWR2G is 2.7V to 5.5V.
-
To ensure reliable operation in high-temperature environments, it is recommended to operate the device within the specified temperature range (-40°C to 125°C) and ensure proper thermal management, such as using a heat sink or thermal pad.
-
The maximum clock frequency supported by the MC14517BDWR2G is 2.5 MHz.
-
The POR and BOR features of the MC14517BDWR2G can be handled by ensuring a stable power supply, using a capacitor to filter out noise, and implementing a reset circuit to handle power-on and brown-out conditions.
-
To minimize noise and EMI, it is recommended to follow good PCB design practices, such as using a solid ground plane, keeping signal traces short and away from noise sources, and using shielding and filtering components as needed.
