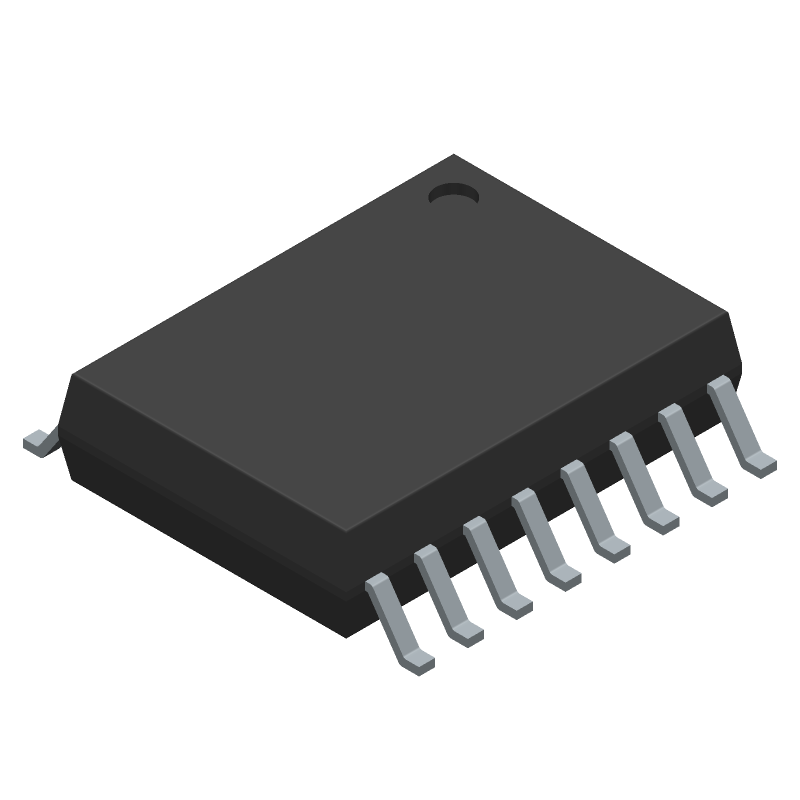

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC14511BDWR2G by onsemi
Results Overview of MC14511BDWR2G by onsemi
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC14511BDWR2G Information
MC14511BDWR2G by onsemi is a Decoder/Driver.
Decoder/Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC14511BDWR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26K3953
|
Newark | Ic, led Display Driver,7-Seg, common-Cathode, cmos, sop,16Pin, plastic |Onsemi MC14511BDWR2G RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3240 / $0.4390 | Buy Now |
|
DISTI #
26AM3831
|
Newark | Log Cmos Dsply Dcode Drvr |Onsemi MC14511BDWR2G RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2550 | Buy Now |
|
DISTI #
MC14511BDWR2GOSCT-ND
|
DigiKey | IC LATCH/DECDR/DRVR 7SEG 16-SOIC Min Qty: 1 Lead time: 11 Weeks Container: Cut Tape (CT), Digi-Reel®, Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1770 In Stock |
|
$0.3187 / $1.8700 | Buy Now |
|
DISTI #
MC14511BDWR2G
|
Avnet Americas | BCD to 7 Segment Latch / Decoder / Driver, MC145, 7 Outputs, 3 V to 18 V, 16 Pins, WSOIC - Tape and Reel (Alt: MC14511BDWR2G) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 11 Weeks, 0 Days Container: Reel | 80008000 Factory Stock |
|
$0.2400 / $0.2520 | Buy Now |
|
DISTI #
863-MC14511BDWR2G
|
Mouser Electronics | Encoders, Decoders, Multiplexers & Demultiplexers 3-18V BCD/7-Segment Decoder RoHS: Compliant | 928 |
|
$0.3180 / $1.3900 | Buy Now |
|
DISTI #
V72:2272_07305777
|
Arrow Electronics | Latch/Decoder/Driver Single 4-to-7 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 1521 Container: Cut Strips | Americas - 1279 |
|
$0.4348 / $0.4792 | Buy Now |
|
DISTI #
70466284
|
RS | MC14511BDWR2G, LOG CMOS DSPLY DCODE DRVR Min Qty: 20 Package Multiple: 1 Container: Bulk | 0 |
|
$0.7300 / $0.8600 | RFQ |
|
|
Onlinecomponents.com | BCD-to-7-Segment Latch/Decoder/Driver RoHS: Compliant | 0 |
|
$0.3031 / $0.3446 | Buy Now |
|
DISTI #
25774756
|
Verical | Latch/Decoder/Driver Single 4-to-7 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 14 Package Multiple: 1 Date Code: 1521 | Americas - 1279 |
|
$0.4348 / $0.4718 | Buy Now |
|
DISTI #
85952401
|
Verical | Latch/Decoder/Driver Single 4-to-7 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 695 Package Multiple: 1 Date Code: 1701 | Americas - 1000 |
|
$0.5398 | Buy Now |
Part Details for MC14511BDWR2G
MC14511BDWR2G CAD Models
MC14511BDWR2G Part Data Attributes
|
|
MC14511BDWR2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC14511BDWR2G
onsemi
BCD-to-7-Segment Latch/Decoder/Driver, SO-16 WB, 1000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SO-16 WB | |
| Pin Count | 16 | |
| Manufacturer Package Code | 751G-03 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | CMOS | |
| Input Conditioning | LATCHED | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 10.3 mm | |
| Logic IC Type | SEVEN SEGMENT DECODER/DRIVER | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 1440 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for MC14511BDWR2G
This table gives cross-reference parts and alternative options found for MC14511BDWR2G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC14511BDWR2G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74AHC138D,118 | Nexperia | $0.1424 | 74AHC138; 74AHCT138 - 3-to-8 line decoder/demultiplexer; inverting@en-us SOP 16-Pin | MC14511BDWR2G vs 74AHC138D,118 |
| 74VHC139MTCX | onsemi | $0.3218 | Dual 2-to-4 Decoder/Demultiplexer, TSSOP-16, 2500-REEL | MC14511BDWR2G vs 74VHC139MTCX |
| 74AC139SCX | onsemi | $0.3416 | Dual 1-of-4 Decoder/Demultiplexer, SOIC-16, 2500-REEL | MC14511BDWR2G vs 74AC139SCX |
| MC74AC138DG | onsemi | $0.3590 | 1-of-8 Decoder/Demultiplexer, SOIC 16 LEAD, 48-TUBE | MC14511BDWR2G vs MC74AC138DG |
| MC14555BDG | onsemi | $0.5736 | Dual Binary to 1-of-4 Decoder/Demultiplexer, SOIC 16 LEAD, 48-TUBE | MC14511BDWR2G vs MC14555BDG |
| 74VHC138MX | onsemi | $0.8190 | 3-to-8 Decoder/Demultiplexer, SOIC-16, 2500-REEL | MC14511BDWR2G vs 74VHC138MX |
| 74AHCT138T16-13 | Diodes Incorporated | Check for Price | Decoder/Driver, AHCT/VHCT/VT Series, Inverted Output, CMOS, PDSO16, GREEN, TSSOP-16 | MC14511BDWR2G vs 74AHCT138T16-13 |
| 74VHCT138AMTC | onsemi | Check for Price | 3-to-8 Decoder/Demultiplexer, TSSOP-16, 96-TUBE | MC14511BDWR2G vs 74VHCT138AMTC |
| 74AHCT138S16-13 | Diodes Incorporated | Check for Price | Decoder/Driver, AHCT/VHCT/VT Series, Inverted Output, CMOS, PDSO16, GREEN, SOP-16 | MC14511BDWR2G vs 74AHCT138S16-13 |
| MC14028BDR2 | onsemi | Check for Price | 4000/14000/40000 SERIES, DECIMAL DECODER/DRIVER, TRUE OUTPUT, PDSO16, SOIC-16 | MC14511BDWR2G vs MC14028BDR2 |
MC14511BDWR2G Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC14511BDWR2G is 2.7V to 5.5V.
-
To ensure reliable operation in high-temperature environments, it is recommended to operate the device within the specified temperature range (-40°C to 125°C) and ensure proper thermal management, such as using a heat sink or thermal pad.
-
The maximum clock frequency supported by the MC14511BDWR2G is 2.5 MHz.
-
The POR and BOR features of the MC14511BDWR2G can be handled by ensuring a stable power supply, using a capacitor to filter out noise, and implementing a reset circuit to handle power-on and brown-out conditions.
-
The internal pull-up resistors on the I/O pins of the MC14511BDWR2G are used to reduce the power consumption and noise sensitivity of the device, and to simplify the design of the external circuitry.
