Part Details for MC100EP11DG by onsemi

Results Overview of MC100EP11DG by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation

MC100EP11DG Information

MC100EP11DG by onsemi is a Clock Driver.
Clock Drivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for MC100EP11DG

Part # Distributor Description Stock Price Buy
DISTI # 45J0937
Newark Differential Fanout Buffer, 3Ghz, Soic-8, Clock Ic Type:Clock Buffer, Frequency:3Ghz, No. Of Outputs:2Outputs, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Clock Ic Case Style:Soic, No. Of Pins:8Pins, Product Range:-, Msl:- Rohs Compliant: Yes |Onsemi MC100EP11DG RoHS: Compliant Min Qty: 98 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 50 $5.6700
  • 196 $5.6500
  • 294 $5.5600
$5.5600 / $5.6700 Buy Now
DISTI # MC100EP11DGOS-ND
DigiKey IC CLK BUFFER 1:2 3GHZ 8SOIC Min Qty: 1 Lead time: 30 Weeks Container: Tube 39
In Stock
  • 1 $10.4500
  • 10 $7.1150
$7.1150 / $10.4500 Buy Now
DISTI # MC100EP11DG
Avnet Americas Clock Buffer, Fanout, 3 GHz, 2 Outputs, 3 V to 5.5 V, 8 Pins, NSOIC - Rail/Tube (Alt: MC100EP11DG) RoHS: Compliant Min Qty: 196 Package Multiple: 98 Lead time: 111 Weeks, 0 Days Container: Tube 0
RFQ
DISTI # 863-MC100EP11DG
Mouser Electronics Clock Buffer 3.3V/5V ECL 1:2 Diff Fanout Buffer RoHS: Compliant 0
  • 1 $10.4500
  • 10 $7.1200
  • 98 $6.7500
  • 196 $6.6200
  • 588 $6.3700
  • 1,176 $6.0500
$6.0500 / $10.4500 Order Now
DISTI # 85953041
Verical Clock Fanout Buffer 2-OUT 1-IN 1:2 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 59 Package Multiple: 1 Date Code: 2001 Americas - 8885
  • 59 $6.3875
$6.3875 Buy Now
DISTI # 85953060
Verical Clock Fanout Buffer 2-OUT 1-IN 1:2 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 59 Package Multiple: 1 Date Code: 1301 Americas - 4689
  • 59 $6.3875
$6.3875 Buy Now
DISTI # 85952760
Verical Clock Fanout Buffer 2-OUT 1-IN 1:2 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 59 Package Multiple: 1 Date Code: 1801 Americas - 4633
  • 59 $6.3875
$6.3875 Buy Now
DISTI # 85952749
Verical Clock Fanout Buffer 2-OUT 1-IN 1:2 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 59 Package Multiple: 1 Date Code: 1101 Americas - 471
  • 59 $6.3875
$6.3875 Buy Now
Bristol Electronics   153
RFQ
Bristol Electronics   37
RFQ
Bristol Electronics   Min Qty: 1 7
  • 1 $8.9600
  • 4 $5.8240
$5.8240 / $8.9600 Buy Now
Quest Components 100EP SERIES, LOW SKEW CLOCK DRIVER, 2 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO8 82
  • 1 $15.0000
  • 8 $10.0000
  • 26 $9.2500
$9.2500 / $15.0000 Buy Now
Quest Components 100EP SERIES, LOW SKEW CLOCK DRIVER, 2 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO8 7
  • 1 $8.8500
  • 2 $5.9000
  • 5 $4.4250
$4.4250 / $8.8500 Buy Now
Quest Components 100EP SERIES, LOW SKEW CLOCK DRIVER, 2 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO8 6
  • 1 $9.4350
  • 2 $7.8625
  • 4 $6.9190
$6.9190 / $9.4350 Buy Now
Quest Components 100EP SERIES, LOW SKEW CLOCK DRIVER, 2 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO8 5
  • 1 $12.0000
  • 2 $8.0000
  • 4 $6.0000
$6.0000 / $12.0000 Buy Now
Rochester Electronics MC100EP11 - Low Skew Clock Driver, 10EP Series, 2 True Output(s), ECL, PDSO8 RoHS: Compliant Status: Active Min Qty: 1 18680
  • 25 $5.1100
  • 100 $4.8500
  • 500 $4.6000
  • 1,000 $4.3400
  • 10,000 $4.0900
$4.0900 / $5.1100 Buy Now
DISTI # MC100EP11DG
Avnet Silica Clock Buffer Fanout 3 GHz 2 Outputs 3 V to 55 V 8 Pins NSOIC (Alt: MC100EP11DG) RoHS: Compliant Min Qty: 98 Package Multiple: 98 Lead time: 31 Weeks, 0 Days Silica - 98
Buy Now
DISTI # MC100EP11DG
EBV Elektronik Clock Buffer Fanout 3 GHz 2 Outputs 3 V to 55 V 8 Pins NSOIC (Alt: MC100EP11DG) RoHS: Compliant Min Qty: 98 Package Multiple: 98 Lead time: 31 Weeks, 0 Days EBV - 0
Buy Now

Part Details for MC100EP11DG

MC100EP11DG CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

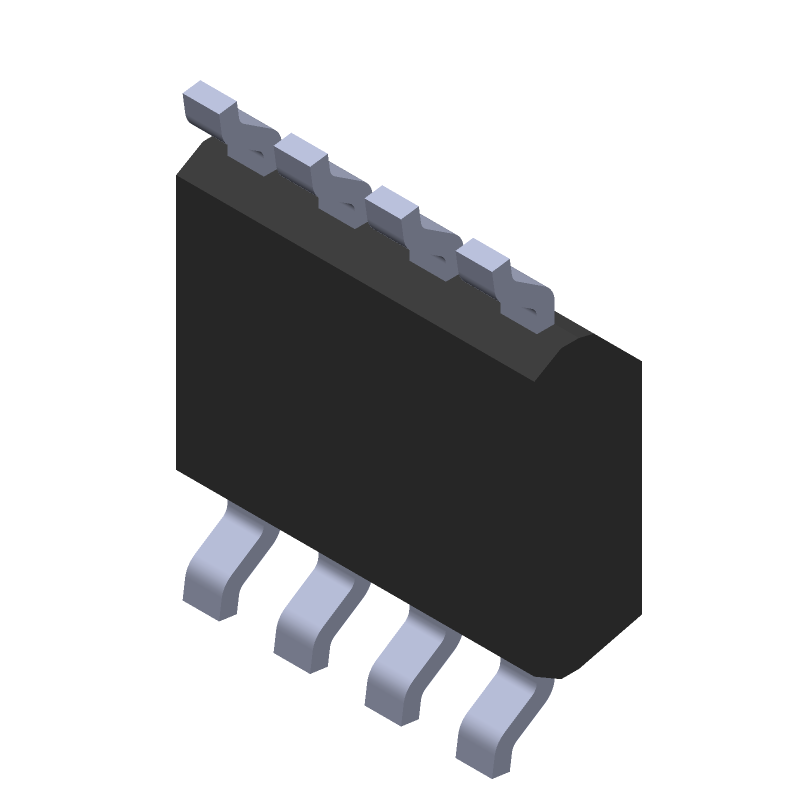

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC100EP11DG Part Data Attributes

Parametric Data
MC100EP11DG onsemi
Buy Now Datasheet
Compare Parts:
MC100EP11DG onsemi Clock / Data Fanout Buffer, 1:2 Differential, ECL, 3.3 V / 5.0 V, SOIC-8 Narrow Body, 98-TUBE
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code End Of Life
Ihs Manufacturer ONSEMI
Part Package Code SOIC-8 Narrow Body
Pin Count 8
Manufacturer Package Code 751-07
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Factory Lead Time 111 Weeks
Samacsys Manufacturer onsemi
Additional Feature NECL MODE: VCC=0 WITH VEE = -3.0V TO -5.5V
Family 10EP
Input Conditioning DIFFERENTIAL
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Logic IC Type LOW SKEW CLOCK DRIVER
Moisture Sensitivity Level 1
Number of Functions 1
Number of Inverted Outputs
Number of Terminals 8
Number of True Outputs 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Prop. Delay@Nom-Sup 0.32 ns
Propagation Delay (tpd) 0.3 ns
Qualification Status Not Qualified
Same Edge Skew-Max (tskwd) 0.12 ns
Seated Height-Max 1.75 mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology ECL
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn) - annealed
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm
