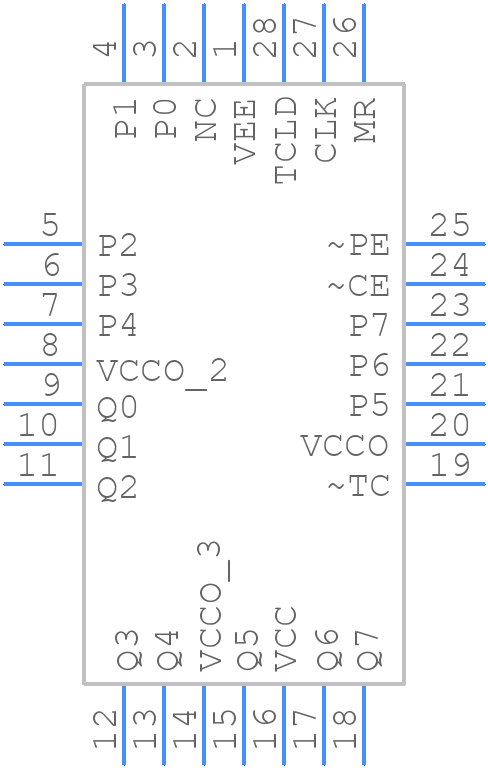

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC100E016FNG by onsemi
Results Overview of MC100E016FNG by onsemi
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Computing and Data Storage
Automotive
MC100E016FNG Information
MC100E016FNG by onsemi is a Counter.
Counters are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC100E016FNG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-MC100E016FNG-ND
|
DigiKey | IC COUNTER 8BIT SYNC ECL 28PLCC Min Qty: 50 Lead time: 50 Weeks Container: Bulk MARKETPLACE PRODUCT |
2118 In Stock |
|
$6.0700 | Buy Now |
|
DISTI #
86005619
|
Verical | Counter Single 8-Bit Sync Binary UP 28-Pin PLCC Tube RoHS: Compliant Min Qty: 52 Package Multiple: 1 Date Code: 1701 | Americas - 555 |
|
$5.8375 / $7.3000 | Buy Now |
|
DISTI #
85996047
|
Verical | Counter Single 8-Bit Sync Binary UP 28-Pin PLCC Tube RoHS: Compliant Min Qty: 52 Package Multiple: 1 Date Code: 1201 | Americas - 277 |
|
$5.8375 / $7.3000 | Buy Now |
|
DISTI #
85994839
|
Verical | Counter Single 8-Bit Sync Binary UP 28-Pin PLCC Tube RoHS: Compliant Min Qty: 52 Package Multiple: 1 Date Code: 1001 | Americas - 71 |
|
$5.8375 / $7.3000 | Buy Now |
|
|
Bristol Electronics | 26 |
|
RFQ | ||
|
|
Bristol Electronics | 10 |
|
RFQ | ||
|
|
Rochester Electronics | Binary Counter, 100E Series, Synchronous, Positive Edge Triggered, 8-Bit, Up Direction, ECL, PQCC28 RoHS: Compliant Status: Obsolete Min Qty: 1 | 2118 |
|
$4.6700 / $5.8400 | Buy Now |
|
|
ComSIT USA | 5V ECL 8-BIT SYNCHRONOUS BINARY UP COUNTER Binary Counter, 100E Series, Synchronous, Positive Edge Triggered, 8-Bit, Up Direction, ECL, PQCC28 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ |
Part Details for MC100E016FNG
MC100E016FNG CAD Models
MC100E016FNG Part Data Attributes
|
|
MC100E016FNG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC100E016FNG
onsemi
ECL 8-Bit Up Synchronous Binary Counter, 28 LEAD PLCC, 37-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | QLCC | |
| Package Description | LCC-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | 776-02 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | NECL MODE: VCC = 0V WITH VEE = -4.2V TO -5.7V | |
| Count Direction | UP | |
| Family | 100E | |
| JESD-30 Code | S-PQCC-J28 | |
| JESD-609 Code | e3 | |
| Length | 11.505 mm | |
| Logic IC Type | BINARY COUNTER | |
| Max Frequency@Nom-Sup | 700000000 Hz | |
| Mode of Operation | SYNCHRONOUS | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Output Characteristics | OPEN-EMITTER | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QCCJ | |
| Package Equivalence Code | LDCC28,.5SQ | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 208 mA | |
| Propagation Delay (tpd) | 0.9 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 4.57 mm | |
| Supply Voltage-Max (Vsup) | 5.7 V | |
| Supply Voltage-Min (Vsup) | 4.2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | ECL | |
| Temperature Grade | OTHER | |
| Terminal Finish | TIN | |
| Terminal Form | J BEND | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | QUAD | |
| Trigger Type | POSITIVE EDGE | |
| Width | 11.505 mm | |
| fmax-Min | 700 MHz |
Alternate Parts for MC100E016FNG
This table gives cross-reference parts and alternative options found for MC100E016FNG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC100E016FNG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SY100E016JITR | Micrel Inc | Check for Price | Binary Counter, 100E Series, Synchronous, Positive Edge Triggered, 8-Bit, Up Direction, ECL, PQCC28, PLASTIC, LCC-28 | MC100E016FNG vs SY100E016JITR |
| MC100E016FNR2 | onsemi | Check for Price | 100E SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT UP BINARY COUNTER, PQCC28, PLASTIC, LCC-28 | MC100E016FNG vs MC100E016FNR2 |
| SY100E016JYTR | Microchip Technology Inc | Check for Price | 100E SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT UP BINARY COUNTER, PQCC28, LEAD FREE, PLASTIC, LCC-28 | MC100E016FNG vs SY100E016JYTR |
| SY100E016JITR | Microchip Technology Inc | Check for Price | Binary Counter, 100E Series, Synchronous, Positive Edge Triggered, 8-Bit, Up Direction, ECL, PQCC28, PLASTIC, LCC-28 | MC100E016FNG vs SY100E016JITR |
| MC100E016FN | Motorola Mobility LLC | Check for Price | 100E SERIES, SYN POSITIVE EDGE TRIGGERED 8-BIT UP BINARY COUNTER, PQCC28, PLASTIC, LCC-28 | MC100E016FNG vs MC100E016FN |
MC100E016FNG Frequently Asked Questions (FAQ)
-
A good PCB layout for the MC100E016FNG involves keeping the input and output traces short and matched, using a solid ground plane, and placing bypass capacitors close to the device. It's also recommended to use a low-impedance power supply and to minimize the number of vias and layer changes.
-
Proper termination of the MC100E016FNG involves using a combination of series and parallel resistors to match the impedance of the transmission line. The datasheet provides guidelines for termination, but it's also recommended to consult with a signal integrity expert or use simulation tools to ensure optimal termination.
-
The MC100E016FNG has an operating temperature range of -40°C to 125°C, but it's recommended to derate the device for temperatures above 85°C to ensure reliable operation.
-
The MC100E016FNG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding straps, and ionizers to minimize the risk of damage.
-
The recommended power-up sequence for the MC100E016FNG involves applying the power supply voltage (VCC) before the input signals. This ensures that the device is properly biased and configured before the input signals are applied.
