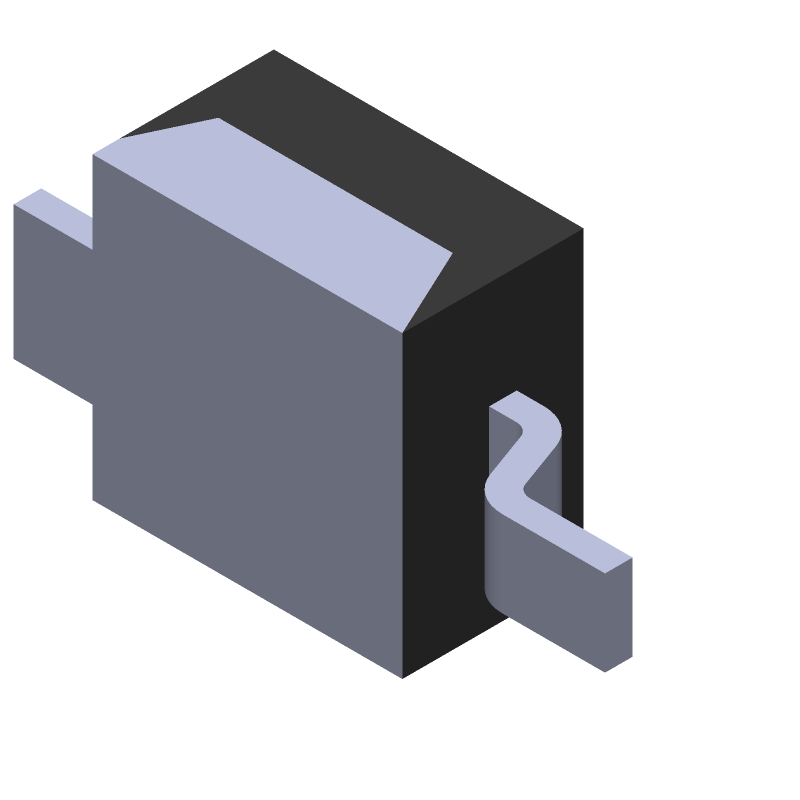

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MBRM110LT1G by onsemi
Results Overview of MBRM110LT1G by onsemi
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MBRM110LT1G Information
MBRM110LT1G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MBRM110LT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26K3688
|
Newark | Schottky Rectifier, 1A, 10V, 457, Repetitive Peak Reverse Voltage:10V, Average Forward Current:1A, Diode Configuration:Single, Diode Case Style:Do-216Aa, No. Of Pins:2Pins, Forward Voltage Max:365Mv, Forward Surge Current:50A Rohs Compliant: Yes |Onsemi MBRM110LT1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.0480 | Buy Now |
|
DISTI #
70339710
|
RS | ON Semi MBRM110LT1G, SMT Schottky Diode, 10V 2A, 2-Pin Powermite Min Qty: 20 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4530 | RFQ |
|
|
Bristol Electronics | 3292 |
|
RFQ | ||
|
|
Bristol Electronics | 748 |
|
RFQ | ||
|
|
Quest Components | 1 A, 10 V, SILICON, SIGNAL DIODE, DO-216AA | 2633 |
|
$0.3500 / $1.0000 | Buy Now |
|
|
Quest Components | 1 A, 10 V, SILICON, SIGNAL DIODE, DO-216AA | 598 |
|
$0.3720 / $0.9300 | Buy Now |
|
|
Quest Components | 1 A, 10 V, SILICON, SIGNAL DIODE, DO-216AA | 8 |
|
$0.7744 / $0.9680 | Buy Now |
|
|
Rochester Electronics | Rectifier Diode, Schottky, 1A, 10V, DO-216AA RoHS: Compliant Status: Obsolete Min Qty: 1 | 3451 |
|
$0.2188 / $0.3529 | Buy Now |
|
DISTI #
MBRM110LT1G
|
Avnet Silica | Diode Schottky 10V 1A 2Pin1Tab Power Mite TR (Alt: MBRM110LT1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MBRM110LT1G
|
EBV Elektronik | Diode Schottky 10V 1A 2Pin1Tab Power Mite TR (Alt: MBRM110LT1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for MBRM110LT1G
MBRM110LT1G CAD Models
MBRM110LT1G Part Data Attributes
|
|
MBRM110LT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MBRM110LT1G
onsemi
1.0 A, 10 V, Schottky Power Rectifier, Surface Mount, POWERMITE, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | POWERMITE | |
| Pin Count | 2 | |
| Manufacturer Package Code | 457-04 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Application | GENERAL PURPOSE | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.175 V | |
| JEDEC-95 Code | DO-216AA | |
| JESD-30 Code | R-PSSO-G1 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 50 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 10 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for MBRM110LT1G
This table gives cross-reference parts and alternative options found for MBRM110LT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MBRM110LT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MBRM110LT3G | onsemi | Check for Price | 1.0 A, 10 V, Schottky Power Rectifier, Surface Mount, POWERMITE, 12000-REEL | MBRM110LT1G vs MBRM110LT3G |
| MBRM110LT1 | onsemi | Check for Price | 1.0 A, 10 V, Schottky Power Rectifier, Surface Mount, POWERMITE, 3000-REEL | MBRM110LT1G vs MBRM110LT1 |
| MBRM110LT3 | onsemi | Check for Price | 1.0 A, 10 V, Schottky Power Rectifier, Surface Mount, POWERMITE, 12000-REEL | MBRM110LT1G vs MBRM110LT3 |
MBRM110LT1G Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MBRM110LT1G is -55°C to 150°C.
-
Yes, the MBRM110LT1G is designed for high-reliability applications and is qualified to aerospace and defense standards.
-
The typical forward voltage drop for the MBRM110LT1G is around 0.35V at 1A.
-
Yes, the MBRM110LT1G can be used in switching power supplies due to its fast switching times and low reverse recovery time.
-
Yes, the MBRM110LT1G is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
