Diodes / Rectifier Diodes / MBR60H100CTG
Datasheets
MBR60H100CTG by:

Schottky Barrier Rectifier, H-Series, 100 V, 60 A, TO-220 3 LEAD STANDARD, 50-TUBE

Part Details for MBR60H100CTG by onsemi

Results Overview of MBR60H100CTG by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Renewable Energy

MBR60H100CTG Information

MBR60H100CTG by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for MBR60H100CTG

Part # Distributor Description Stock Price Buy
DISTI # 58M8811
Newark Rectifier Diode, Dual Common Cathode, 100 V, 60 A, To-220, 3, 980 Mv Rohs Compliant: Yes |Onsemi MBR60H100CTG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $3.4100
  • 10 $3.0400
  • 100 $1.9900
  • 500 $1.8500
$1.8500 / $3.4100 Buy Now
DISTI # MBR60H100CTGOS-ND
DigiKey DIODE ARR SCHOTT 100V 30A TO-220 Min Qty: 1 Lead time: 9 Weeks Container: Tube 693
In Stock
  • 1 $2.8700
  • 50 $1.5100
  • 100 $1.3328
  • 500 $1.1960
  • 1,000 $1.1460
  • 2,000 $1.0771
  • 5,000 $1.0770
$1.0770 / $2.8700 Buy Now
DISTI # MBR60H100CTG
Avnet Americas Diode Schottky 100V 60A 3-Pin(3+Tab) TO-220AB Rail - Rail/Tube (Alt: MBR60H100CTG) RoHS: Compliant Min Qty: 600 Package Multiple: 50 Lead time: 9 Weeks, 0 Days Container: Tube 607 Factory Stock
  • 600 $1.2135
  • 700 $1.1884
  • 1,300 $1.1643
  • 3,000 $1.1337
  • 6,000 $1.1117
$1.1117 / $1.2135 Buy Now
DISTI # 863-MBR60H100CTG
Mouser Electronics Schottky Diodes & Rectifiers 60A 100V H-Series RoHS: Compliant 908
  • 1 $2.8500
  • 10 $2.7400
  • 50 $1.5100
  • 100 $1.2800
  • 250 $1.1900
  • 600 $1.1300
  • 1,200 $1.0700
$1.0700 / $2.8500 Buy Now
Onlinecomponents.com MBR60H100CT Series 60 A 100 V SWITCHMODE Schottky Rectifier - TO-220-3 RoHS: Compliant 0
  • 50 $1.2900
  • 250 $1.1800
  • 500 $1.1600
  • 1,000 $1.1000
  • 2,500 $1.0600
  • 5,000 $1.0500
  • 7,500 $1.0300
$1.0300 / $1.2900 Buy Now
DISTI # 88038183
Verical Diode Schottky 100V 60A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 50 Package Multiple: 50 Americas - 1050
  • 50 $1.0838
$1.0838 Buy Now
DISTI # 87893031
Verical Diode Schottky 100V 60A 3-Pin(3+Tab) TO-220AB Tube Min Qty: 24 Package Multiple: 1 Americas - 259
  • 24 $2.7200
  • 50 $2.5300
  • 100 $1.4400
$1.4400 / $2.7200 Buy Now
Bristol Electronics   158
RFQ
Bristol Electronics   Min Qty: 2 50
  • 2 $3.2760
  • 9 $2.1294
  • 25 $1.6380
$1.6380 / $3.2760 Buy Now
Quest Components RECTIFIER DIODE, SCHOTTKY, 1 PHASE, 2 ELEMENT, 30A, 100V V(RRM), SILICON, TO-220AB 89
  • 1 $2.3750
  • 12 $1.9000
  • 40 $1.4250
$1.4250 / $2.3750 Buy Now
Quest Components RECTIFIER DIODE, SCHOTTKY, 1 PHASE, 2 ELEMENT, 30A, 100V V(RRM), SILICON, TO-220AB 40
  • 1 $4.3875
  • 3 $2.9250
  • 10 $2.1938
$2.1938 / $4.3875 Buy Now
Rochester Electronics Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 100V, TO-220AB RoHS: Not Compliant Status: Active Min Qty: 1 109
  • 100 $1.4600
  • 500 $1.3100
  • 1,000 $1.2100
  • 10,000 $1.0800
  • 100,000 $0.9047
$0.9047 / $1.4600 Buy Now
DISTI # MBR60H100CTG
TME Diode: Schottky rectifying, THT, 100V, 30Ax2, TO220-3, Ufmax: 0.81V Min Qty: 1 0
  • 1 $2.2900
  • 3 $2.0600
  • 10 $1.8200
  • 50 $1.6400
  • 250 $1.5200
$1.5200 / $2.2900 RFQ
DISTI # MBR60H100CTG
IBS Electronics MBR60H100CT SERIES 60 A 100 V SWITCHMODE SCHOTTKY RECTIFIER - TO-220-3 Min Qty: 50 Package Multiple: 1 950
  • 50 $1.3910
  • 150 $1.3650
  • 250 $1.3650
  • 1,000 $1.3390
  • 1,500 $1.3260
$1.3260 / $1.3910 Buy Now
DISTI # MBR60H100CTG
Richardson RFPD RECTIFIER MODULE - SCHOTTKY RoHS: Compliant Min Qty: 600 0
  • 600 $1.0800
$1.0800 Buy Now
DISTI # MBR60H100CTG
Avnet Asia Diode Schottky 100V 60A 3-Pin(3+Tab) TO-220AB Rail (Alt: MBR60H100CTG) RoHS: Compliant Min Qty: 600 Package Multiple: 50 Lead time: 9 Weeks, 0 Days 0
  • 600 $1.1337
  • 1,200 $1.1190
  • 1,800 $1.1046
  • 3,000 $1.0906
  • 6,000 $1.0637
  • 15,000 $1.0381
  • 30,000 $1.0136
$1.0136 / $1.1337 Buy Now
DISTI # MBR60H100CTG
Avnet Silica Diode Schottky 100V 60A 3Pin3Tab TO220AB Rail (Alt: MBR60H100CTG) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 10 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MBR60H100CTG
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 259
  • 1 $2.7200
  • 10 $2.5300
  • 50 $1.4400
  • 100 $1.2700
  • 3,200 $1.1200
  • 12,800 $1.1100
$1.1100 / $2.7200 Buy Now
Cytech Systems Limited DIODE ARR SCHOTT 100V 30A TO220 5000
RFQ
DISTI # MBR60H100CTG
EBV Elektronik Diode Schottky 100V 60A 3Pin3Tab TO220AB Rail (Alt: MBR60H100CTG) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 11 Weeks, 0 Days EBV - 0
Buy Now
New Advantage Corporation TO220-3/60 A, 100 V H-SERIES SCHOTTKY RECTIFIER RoHS: Compliant Min Qty: 1 Package Multiple: 50 150
  • 150 $1.8100
$1.8100 Buy Now
Vyrian Diodes 915
RFQ
Win Source Electronics DIODE ARRAY SCHOTTKY 100V TO220 1310
  • 35 $1.8643
  • 80 $1.5297
  • 120 $1.4820
  • 165 $1.4342
  • 210 $1.3864
  • 280 $1.2429
$1.2429 / $1.8643 Buy Now

Part Details for MBR60H100CTG

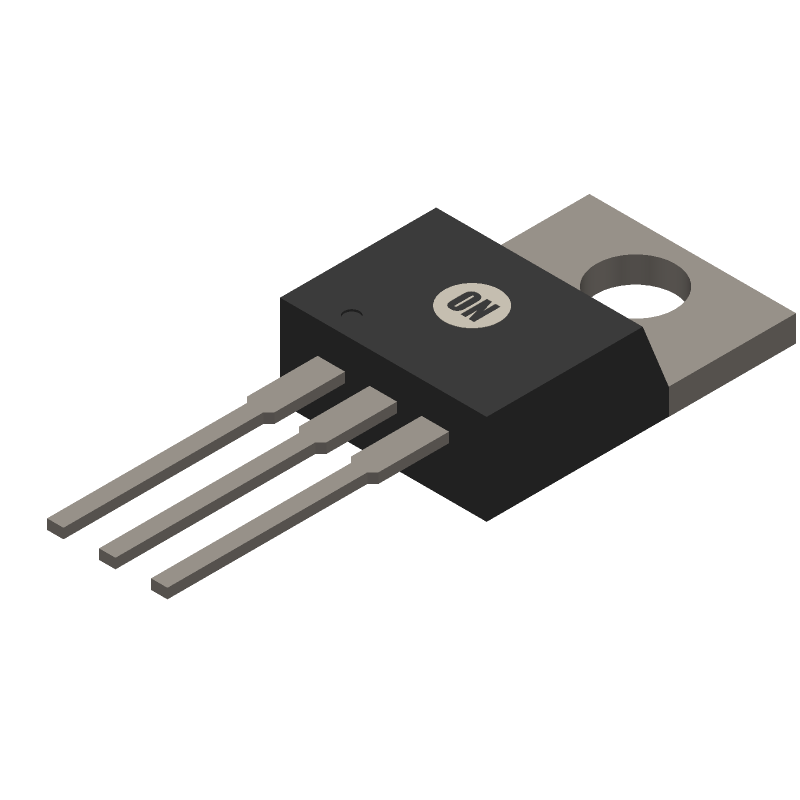

MBR60H100CTG CAD Models
