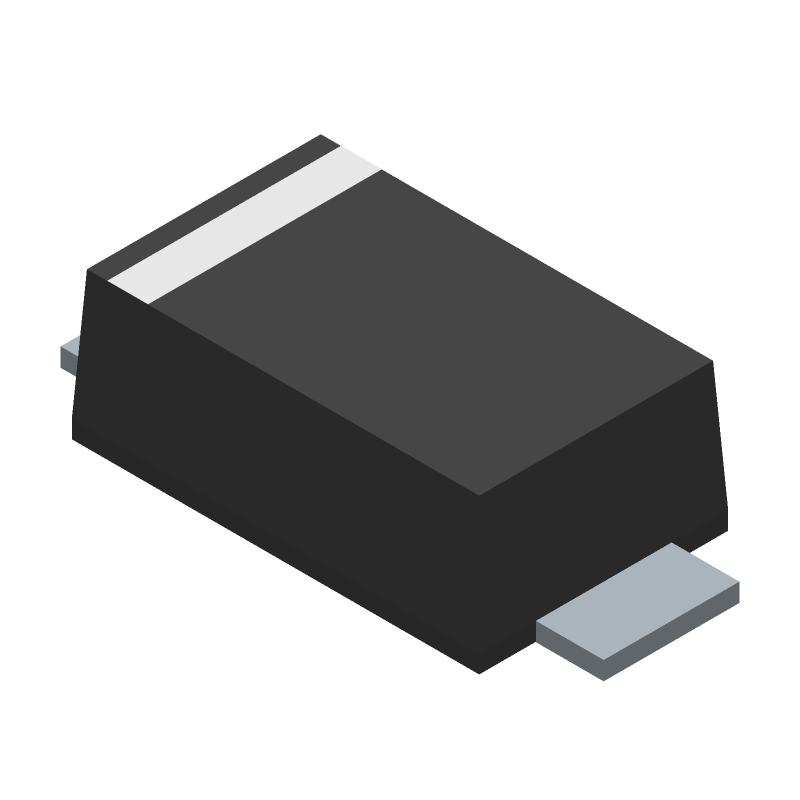

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MBR140SFT1 by onsemi
Results Overview of MBR140SFT1 by onsemi
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MBR140SFT1 Information
MBR140SFT1 by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MBR140SFT1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MBR140SFT1
|
Avnet Americas | - Tape and Reel (Alt: MBR140SFT1) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
|
Bristol Electronics | 1436 |
|
RFQ | ||
|
|
Quest Components | 1 A, 40 V, SILICON, SIGNAL DIODE | 8 |
|
$0.8220 / $1.0275 | Buy Now |
|
|
Vyrian | Diodes | 485 |
|
RFQ | |
|
|
Win Source Electronics | Surface Mount Schottky Power Rectifier | DIODE SCHOTTKY 40V 1A SOD123L | 90000 |
|
$0.1085 / $0.1625 | Buy Now |
Part Details for MBR140SFT1
MBR140SFT1 CAD Models
MBR140SFT1 Part Data Attributes
|
|
MBR140SFT1
onsemi
Buy Now
Datasheet
|
Compare Parts:
MBR140SFT1
onsemi
1.0 A, 40 V, Schottky Power Rectifier, Surface Mount, SOD-123FL 2 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-123FL 2 LEAD | |
| Package Description | PLASTIC, CASE 498-01, SOD-123FL, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 498-01 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.3 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for MBR140SFT1
This table gives cross-reference parts and alternative options found for MBR140SFT1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MBR140SFT1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MBR140SFT3G | onsemi | $0.0811 | 1.0 A, 40 V, Schottky Power Rectifier, Surface Mount, SOD-123FL 2 LEAD, 10000-REEL | MBR140SFT1 vs MBR140SFT3G |
| MBR140SFT1G | onsemi | $0.0969 | 1.0 A, 40 V, Schottky Power Rectifier, Surface Mount, SOD-123FL 2 LEAD, 3000-REEL | MBR140SFT1 vs MBR140SFT1G |
| MBR140ESFT1G | onsemi | $0.1291 | 1.0 A, 40 V, Schottky Rectifier Low Leakage, SOD-123FL 2 LEAD, 3000-REEL | MBR140SFT1 vs MBR140ESFT1G |
| NRVB140ESFT3G | onsemi | $0.1905 | 1.0 A, 40 V, Schottky Rectifier Low Leakage, SOD-123FL 2 LEAD, 10000-REEL, Automotive Qualified | MBR140SFT1 vs NRVB140ESFT3G |
| NRVB140ESFT1G | onsemi | $0.2334 | 1.0 A, 40 V, Schottky Rectifier Low Leakage, SOD-123FL 2 LEAD, 3000-REEL, Automotive Qualified | MBR140SFT1 vs NRVB140ESFT1G |
| MBR140ESFT3G | onsemi | Check for Price | 1.0 A, 40 V, Schottky Rectifier Low Leakage, SOD-123FL 2 LEAD, 10000-REEL | MBR140SFT1 vs MBR140ESFT3G |
| MBR140SFT3 | onsemi | Check for Price | 1.0 A, 40 V, Schottky Power Rectifier, Surface Mount, SOD-123FL 2 LEAD, 10000-REEL | MBR140SFT1 vs MBR140SFT3 |
| SS1040_R2_00001 | PanJit Semiconductor | Check for Price | Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2 | MBR140SFT1 vs SS1040_R2_00001 |
MBR140SFT1 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MBR140SFT1 is -55°C to 150°C.
-
Yes, the MBR140SFT1 is designed for high-reliability applications and is qualified to aerospace and defense standards.
-
The typical forward voltage drop of the MBR140SFT1 is around 0.35V at 1A and 25°C.
-
Yes, the MBR140SFT1 can be used in switching applications due to its fast switching speed and low reverse recovery time.
-
Yes, the MBR140SFT1 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
