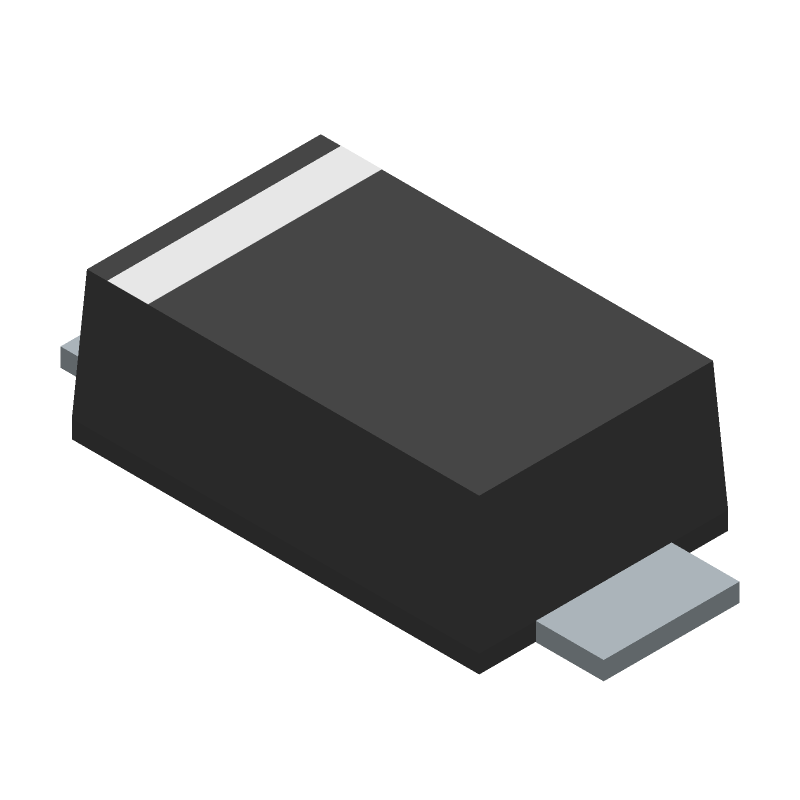

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MBR120VLSFT1G by onsemi
Results Overview of MBR120VLSFT1G by onsemi
- Distributor Offerings: (41 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
MBR120VLSFT1G Information
MBR120VLSFT1G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MBR120VLSFT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31Y2491
|
Newark | Rectifier Diode, Single, 20 V, 1 A, Sod-123Fl, 2, 340 Mv Rohs Compliant: Yes |Onsemi MBR120VLSFT1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 36000 |
|
$0.0920 / $0.1000 | Buy Now |
|
DISTI #
58M8778
|
Newark | Schottky Rectifier, 20V, 1A, Sod-123Fl, Repetitive Peak Reverse Voltage:20V, Average Forward Current:1A, Diode Configuration:Single, Diode Case Style:Sod-123Fl, No. Of Pins:2Pins, Forward Voltage Max:340Mv, Forward Surge Current:45A Rohs Compliant: Yes |Onsemi MBR120VLSFT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 519 |
|
$0.1120 / $0.1320 | Buy Now |
|
DISTI #
MBR120VLSFT1GOSCT-ND
|
DigiKey | DIODE SCHOTTKY 20V 1A SOD123FL Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
31344 In Stock |
|
$0.0892 / $0.4100 | Buy Now |
|
DISTI #
MBR120VLSFT1G
|
Avnet Americas | Diode Schottky 20V 1A 2-Pin SOD-123FL T/R - Tape and Reel (Alt: MBR120VLSFT1G) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0921 / $0.1006 | Buy Now |
|
DISTI #
863-MBR120VLSFT1G
|
Mouser Electronics | Schottky Diodes & Rectifiers 1A 20V RoHS: Compliant | 36094 |
|
$0.0890 / $0.4100 | Buy Now |
|
DISTI #
E02:0323_00017698
|
Arrow Electronics | Diode Schottky Si 20V 1A 2-Pin SOD-123FL T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2510 | Europe - 285000 |
|
$0.0898 | Buy Now |
|
DISTI #
V36:1790_07317925
|
Arrow Electronics | Diode Schottky Si 20V 1A 2-Pin SOD-123FL T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2411 | Americas - 138000 |
|
$0.0793 | Buy Now |
|
DISTI #
V72:2272_07317925
|
Arrow Electronics | Diode Schottky Si 20V 1A 2-Pin SOD-123FL T/R Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2412 Container: Cut Strips | Americas - 4054 |
|
$0.0913 / $0.3772 | Buy Now |
|
|
Future Electronics | MBR Series 1 A 20 V Surface Mount Schottky Power Rectifier - SOD-123FL RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Container: Reel | 261000Reel |
|
$0.0822 / $0.0871 | Buy Now |
|
|
Future Electronics | MBR Series 1 A 20 V Surface Mount Schottky Power Rectifier - SOD-123FL RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Container: Reel | 9000Reel |
|
$0.0822 / $0.0871 | Buy Now |
Part Details for MBR120VLSFT1G
MBR120VLSFT1G CAD Models
MBR120VLSFT1G Part Data Attributes
|
|
MBR120VLSFT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MBR120VLSFT1G
onsemi
1.0 A, 20 V, Schottky Power Rectifier, Surface Mount, SOD-123FL 2 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-123FL 2 LEAD | |
| Pin Count | 2 | |
| Manufacturer Package Code | 498-01 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.205 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 45 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 20 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for MBR120VLSFT1G
This table gives cross-reference parts and alternative options found for MBR120VLSFT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MBR120VLSFT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MBR120VLSFT3G | onsemi | $0.0718 | 1.0 A, 20 V, Schottky Power Rectifier, Surface Mount, SOD-123FL 2 LEAD, 10000-REEL | MBR120VLSFT1G vs MBR120VLSFT3G |
| MBR120VLSFT1 | onsemi | Check for Price | 1.0 A, 20 V, Schottky Power Rectifier, Surface Mount, SOD-123FL 2 LEAD, 3000-REEL | MBR120VLSFT1G vs MBR120VLSFT1 |
MBR120VLSFT1G Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MBR120VLSFT1G is -55°C to 150°C.
-
Yes, the MBR120VLSFT1G is designed for high-reliability applications and is qualified to aerospace and defense standards.
-
The typical forward voltage drop for the MBR120VLSFT1G is around 0.35V at 1A.
-
Yes, the MBR120VLSFT1G can be used in parallel to increase current handling, but it's essential to ensure that the devices are properly matched and thermally coupled to prevent current imbalance.
-
The recommended storage temperature range for the MBR120VLSFT1G is -55°C to 150°C.
