MBR1045G Information
MBR1045G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MBR1045G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
38K4495
|
Newark | Rectifier Diode, Single, 45 V, 10 A, 570 Mv, 150 A, 175 C Rohs Compliant: Yes |Onsemi MBR1045G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 12373 |
|
$0.7590 / $1.5700 | Buy Now |
|
DISTI #
MBR1045GOS-ND
|
DigiKey | DIODE SCHOTTKY 45V 10A TO2202 Min Qty: 1 Lead time: 9 Weeks Container: Tube |
1200 In Stock |
|
$0.4429 / $1.3600 | Buy Now |
|
DISTI #
MBR1045G
|
Avnet Americas | Schottky Rectifier, 45 V, 10 A, Single, TO-220AC, 2 Pins, 570 mV - Rail/Tube (Alt: MBR1045G) RoHS: Compliant Min Qty: 50 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Tube | 750 Factory Stock |
|
$0.4572 / $0.4990 | Buy Now |
|
DISTI #
863-MBR1045G
|
Mouser Electronics | Schottky Diodes & Rectifiers 10A 45V RoHS: Compliant | 12233 |
|
$0.4550 / $1.0000 | Buy Now |
|
DISTI #
E02:0323_00017681
|
Arrow Electronics | Diode Schottky 45V 10A 2-Pin(2+Tab) TO-220AC Rail Min Qty: 50 Package Multiple: 50 Lead time: 9 Weeks Date Code: 2448 | Europe - 2850 |
|
$0.4452 / $0.5414 | Buy Now |
|
DISTI #
V36:1790_07278488
|
Arrow Electronics | Diode Schottky 45V 10A 2-Pin(2+Tab) TO-220AC Rail Min Qty: 50 Package Multiple: 50 Lead time: 9 Weeks Date Code: 2418 | Americas - 2776 |
|
$0.3909 / $0.4754 | Buy Now |
|
DISTI #
70099819
|
RS | ON Semi MBR1045G, Schottky Diode, 45V 10A, 2-Pin TO-220AC Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$1.0800 / $1.2700 | RFQ |
|
|
Future Electronics | MBR Series 10 A 45 V Flange Mount SWITCHMODE™ Power Rectifier - TO-220AC RoHS: Compliant pbFree: Yes Min Qty: 50 Package Multiple: 50 Lead time: 9 Weeks Container: Tube | 2450Tube |
|
$0.4000 / $0.4400 | Buy Now |
|
|
Future Electronics | MBR Series 10 A 45 V Flange Mount SWITCHMODE™ Power Rectifier - TO-220AC RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Container: Tube | 1620Tube |
|
$0.4150 / $0.4700 | Buy Now |
|
|
Onlinecomponents.com | Diode Schottky 45V 10A 2-Pin(2+Tab) TO-220AC Rail RoHS: Compliant | 0 |
|
$0.4244 / $0.5290 | Buy Now |
Part Details for MBR1045G

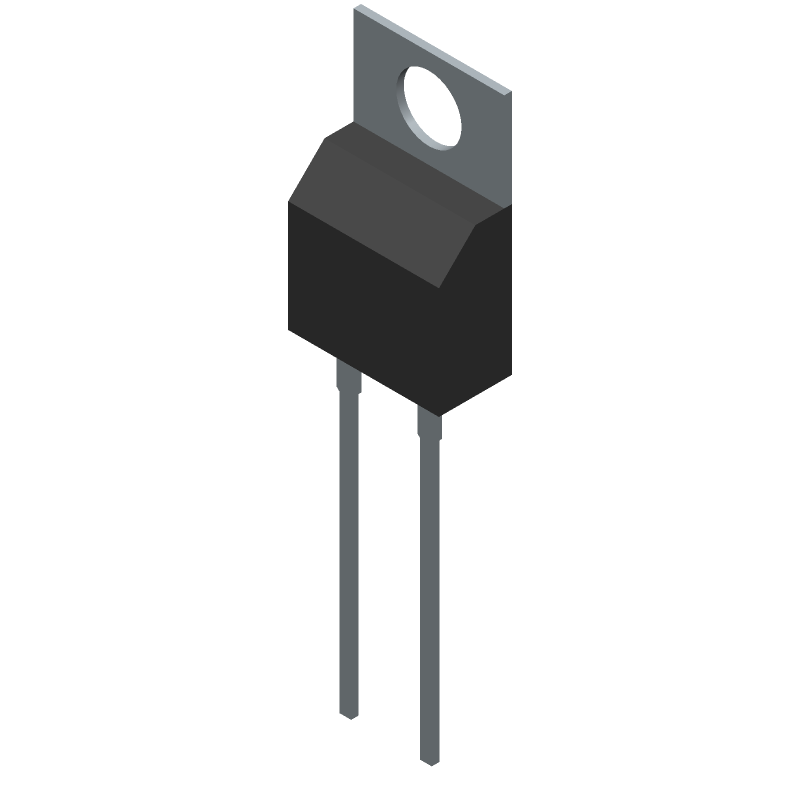

MBR1045G CAD Models
MBR1045G Part Data Attributes
|
|
MBR1045G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MBR1045G
onsemi
Schottky Barrier Rectifier, 10 A, 45 V, TO-220AC 2 LEAD, 50-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-220AC 2 LEAD | |
| Package Description | LEAD FREE, PLASTIC, CASE 221B-04, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 221B-04 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | LOW POWER LOSS | |
| Application | EFFICIENCY | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.84 V | |
| JEDEC-95 Code | TO-220AC | |
| JESD-30 Code | R-PSFM-T2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 150 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 10 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 45 V | |
| Surface Mount | NO | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE |
Alternate Parts for MBR1045G
This table gives cross-reference parts and alternative options found for MBR1045G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MBR1045G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MBR1045-E3/45 | Vishay Intertechnologies | $0.5519 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 45V V(RRM), Silicon, TO-220AC, ROHS COMPLIANT, PLASTIC PACKAGE-2 | MBR1045G vs MBR1045-E3/45 |
| MBR10H45-E3/45 | Vishay Semiconductors | Check for Price | DIODE 10 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AC, ROHS COMPLIANT, PLASTIC PACKAGE-2, Rectifier Diode | MBR1045G vs MBR10H45-E3/45 |
| MBR1045D0 | Taiwan Semiconductor | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 10A, 45V V(RRM), Silicon, TO-220AC, | MBR1045G vs MBR1045D0 |
MBR1045G Frequently Asked Questions (FAQ)
-
The MBR1045G can operate from -55°C to 150°C, but the recommended operating temperature range is -40°C to 125°C.
-
To ensure proper biasing, connect the anode to a voltage source through a current-limiting resistor, and connect the cathode to a voltage source or ground through a current-limiting resistor. Consult the datasheet for specific biasing requirements.
-
The MBR1045G can withstand a maximum reverse voltage of 45V.
-
To prevent electrostatic discharge (ESD) damage, handle the MBR1045G with an anti-static wrist strap or mat, and ensure that all equipment and tools are properly grounded.
-
Store the MBR1045G in a dry, cool place, away from direct sunlight and moisture. Avoid storing the device in a humid or high-temperature environment.
