Diodes / Rectifier Diodes / MBR0530
Datasheets

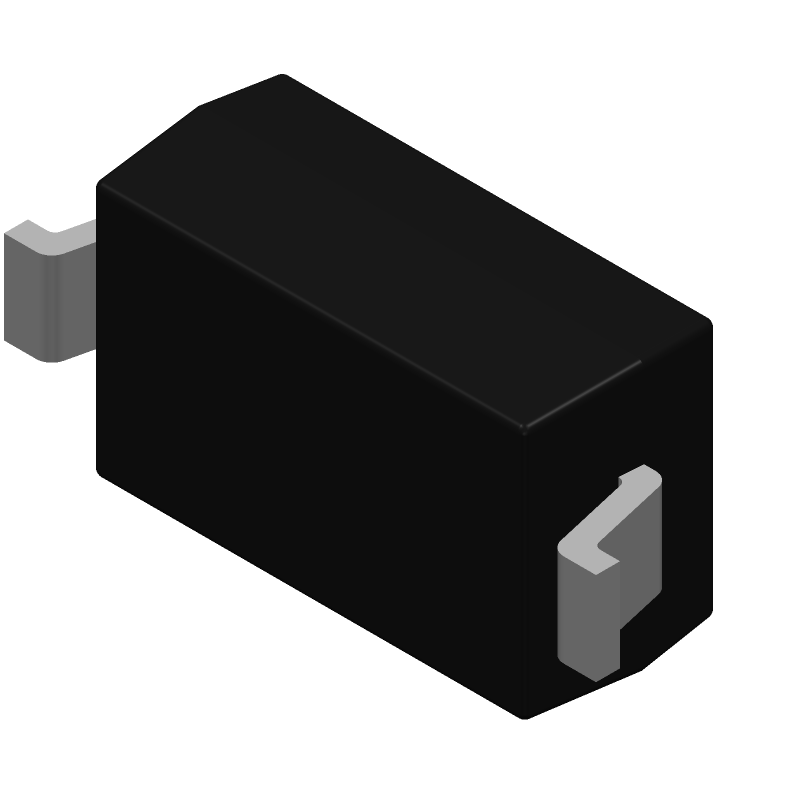

MBR0530 by:

Rectifier Diode, Schottky, 1 Element, 0.5A, 30V V(RRM), Silicon, PLASTIC PACKAGE-2

Part Details for MBR0530 by Micro Commercial Components

Results Overview of MBR0530 by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MBR0530 Information

MBR0530 by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Part Details for MBR0530

MBR0530 Part Data Attributes

Parametric Data
MBR0530 Micro Commercial Components
Buy Now Datasheet
Compare Parts:
MBR0530 Micro Commercial Components Rectifier Diode, Schottky, 1 Element, 0.5A, 30V V(RRM), Silicon, PLASTIC PACKAGE-2
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Package Description PLASTIC PACKAGE-2
Pin Count 2
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8541.10.00.70
Samacsys Manufacturer MCC
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 0.55 V
JESD-30 Code R-PDSO-G2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 5.5 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Output Current-Max 0.5 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 30 V
Reverse Current-Max 100 µA
Surface Mount YES
Technology SCHOTTKY
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 3

Alternate Parts for MBR0530

This table gives cross-reference parts and alternative options found for MBR0530. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MBR0530, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MBR0520LT3G onsemi $0.0623 500 mA, 20 V, Schottky Power Rectifier, Surface Mount, SOD-123 2 LEAD, 10000-REEL MBR0530 vs MBR0520LT3G
B0530WS Lite-On Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 0.5A, 30V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2 MBR0530 vs B0530WS
MBR0520LT1 Motorola Mobility LLC Check for Price 0.5A, 20V, SILICON, SIGNAL DIODE, PLASTIC, 425-04, 2 PIN MBR0530 vs MBR0520LT1
MBR0520L_NL Fairchild Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, LEAD FREE PACKAGE-2 MBR0530 vs MBR0520L_NL
MBR0520L Motorola Semiconductor Products Check for Price Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, CASE 425-04, 2 PIN MBR0530 vs MBR0520L
B0530W Viking Tech Corp Check for Price Rectifier Diode, Schottky, 1 Element, 0.5A, 30V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 MBR0530 vs B0530W
MBR0520LL99Z Fairchild Semiconductor Corporation Check for Price Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, D6, 2 PIN MBR0530 vs MBR0520LL99Z
MBR0520L Sensitron Semiconductors Check for Price Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, PLASTIC, SOD-123, 2 PIN MBR0530 vs MBR0520L
B0520LW-7 Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, PLASTIC PACKAGE-2 MBR0530 vs B0520LW-7
Part Number Manufacturer Composite Price Description Compare
B0520LW-7-F Diodes Incorporated $0.0778 Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2 MBR0530 vs B0520LW-7-F
B0530W-7-F Diodes Incorporated $0.0788 Rectifier Diode, Schottky, 1 Element, 0.5A, 30V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2 MBR0530 vs B0530W-7-F
MBR0530 Vishay Intertechnologies Check for Price Rectifier Diode, Schottky, 1 Element, 0.5A, 30V V(RRM), Silicon, SOD-123, 2 PIN MBR0530 vs MBR0530
MBR0530T3 onsemi Check for Price 0.5A, 30V, SILICON, SIGNAL DIODE, PLASTIC, CASE 425-04, 2 PIN MBR0530 vs MBR0530T3
B0540W Viking Tech Corp Check for Price Rectifier Diode, Schottky, 1 Element, 0.5A, 40V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 MBR0530 vs B0540W
MBR0530 onsemi Check for Price Schottky Power Rectifier, Surface Mount, 0.5 A, 30 V Schottky Rectifier, 0.5A, 30V in SOD-123 Package, SOD-123, 3000-REEL MBR0530 vs MBR0530
B0530WS-13 Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Element, 0.5A, 30V V(RRM), Silicon, PLASTIC PACKAGE-2 MBR0530 vs B0530WS-13
B0520LW-13 Diodes Incorporated Check for Price Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, PLASTIC PACKAGE-2 MBR0530 vs B0520LW-13
MURX0515-TP Micro Commercial Components Check for Price Rectifier Diode, 1 Element, 0.5A, Silicon, SOD-123, 2 PIN MBR0530 vs MURX0515-TP
STPS0520Z10K STMicroelectronics Check for Price 0.5A, 20V, SILICON, SIGNAL DIODE MBR0530 vs STPS0520Z10K
