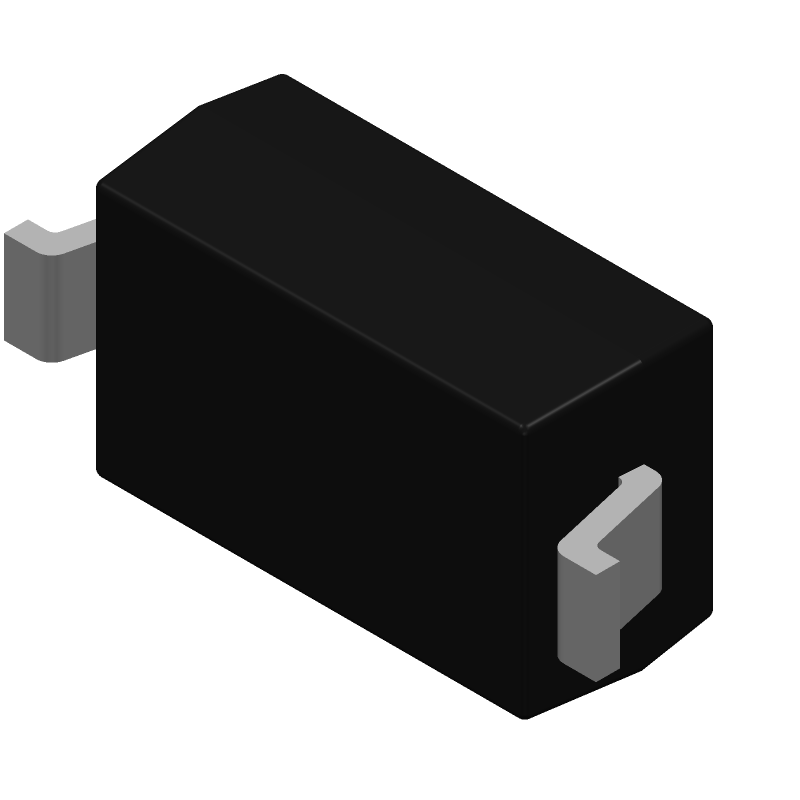

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MBR0530-TP by Micro Commercial Components
Results Overview of MBR0530-TP by Micro Commercial Components
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MBR0530-TP Information
MBR0530-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for MBR0530-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
21AM9687
|
Newark | Schottky Diode, 30V, 0.5A, Sod-123 Rohs Compliant: Yes |Micro Commercial Components MBR0530-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 8600 |
|
$0.0410 / $0.1500 | Buy Now |
|
DISTI #
MBR0530TPMSCT-ND
|
DigiKey | DIODE SCHOTTKY 30V 500MA SOD123 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
234752 In Stock |
|
$0.0339 / $0.1500 | Buy Now |
|
DISTI #
833-MBR0530-TP
|
Mouser Electronics | Schottky Diodes & Rectifiers 30Vr 14Vrms 20V 5.5A 0.55V 30pF RoHS: Compliant | 171088 |
|
$0.0360 / $0.1500 | Buy Now |
|
DISTI #
V36:1790_06836074
|
Arrow Electronics | Diode Schottky 30V 0.5A 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Date Code: 2437 | Americas - 3000 |
|
$0.0264 / $0.0343 | Buy Now |
|
DISTI #
87512294
|
Verical | Diode Schottky 30V 0.5A 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2437 | Americas - 3000 |
|
$0.0264 / $0.0343 | Buy Now |
|
|
Bristol Electronics | 1198 |
|
RFQ | ||
|
|
Bristol Electronics | 500 |
|
RFQ | ||
|
|
Quest Components | 0.5 A, 30 V, SILICON, SIGNAL DIODE | 958 |
|
$0.0900 / $0.3000 | Buy Now |
|
|
Quest Components | 0.5 A, 30 V, SILICON, SIGNAL DIODE | 400 |
|
$0.1125 / $0.3750 | Buy Now |
|
DISTI #
MBR0530-TP
|
TME | Diode: Schottky switching, SOD123, SMD, 30V, 500mA, reel,tape Min Qty: 25 | 549 |
|
$0.0249 / $0.0374 | Buy Now |
Part Details for MBR0530-TP
MBR0530-TP CAD Models
MBR0530-TP Part Data Attributes
|
|
MBR0530-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
MBR0530-TP
Micro Commercial Components
Rectifier Diode, Schottky, 1 Element, 0.5A, 30V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | MCC | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.55 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 5.5 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.41 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Current-Max | 100 µA | |
| Reverse Test Voltage | 30 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for MBR0530-TP
This table gives cross-reference parts and alternative options found for MBR0530-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MBR0530-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MBR0520LT3G | onsemi | $0.0623 | 500 mA, 20 V, Schottky Power Rectifier, Surface Mount, SOD-123 2 LEAD, 10000-REEL | MBR0530-TP vs MBR0520LT3G |
| B0530WS | Lite-On Semiconductor Corporation | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.5A, 30V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2 | MBR0530-TP vs B0530WS |
| MBR0520LT1 | Motorola Mobility LLC | Check for Price | 0.5A, 20V, SILICON, SIGNAL DIODE, PLASTIC, 425-04, 2 PIN | MBR0530-TP vs MBR0520LT1 |
| MBR0520L_NL | Fairchild Semiconductor Corporation | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, LEAD FREE PACKAGE-2 | MBR0530-TP vs MBR0520L_NL |
| MBR0520L | Motorola Semiconductor Products | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, CASE 425-04, 2 PIN | MBR0530-TP vs MBR0520L |
| B0530W | Viking Tech Corp | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.5A, 30V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 | MBR0530-TP vs B0530W |
| MBR0520LL99Z | Fairchild Semiconductor Corporation | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, D6, 2 PIN | MBR0530-TP vs MBR0520LL99Z |
| MBR0520L | Sensitron Semiconductors | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, PLASTIC, SOD-123, 2 PIN | MBR0530-TP vs MBR0520L |
| B0520LW-7 | Diodes Incorporated | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, PLASTIC PACKAGE-2 | MBR0530-TP vs B0520LW-7 |
MBR0530-TP Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MBR0530-TP is -55°C to 150°C.
-
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder to the leads. Avoid applying excessive heat or force, which can damage the component.
-
Store the MBR0530-TP in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, with a relative humidity of 60% or less.
-
Yes, the MBR0530-TP is suitable for high-frequency switching applications due to its low forward voltage drop and fast switching time. However, ensure that the component is properly cooled and the operating frequency is within the recommended range.
-
Handle the MBR0530-TP with an anti-static wrist strap or mat, and avoid touching the component's leads or body. Use an ESD-safe workstation and follow proper ESD handling procedures to prevent damage.
