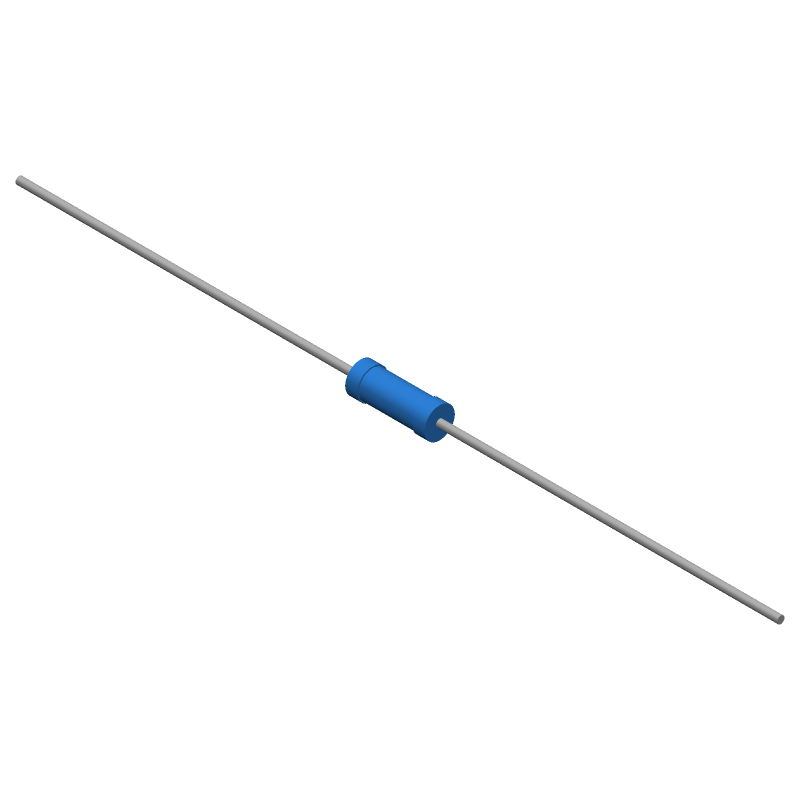

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MBB02070C2740FCT00 by Vishay Intertechnologies
Results Overview of MBB02070C2740FCT00 by Vishay Intertechnologies
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
MBB02070C2740FCT00 Information
MBB02070C2740FCT00 by Vishay Intertechnologies is a Metal Film Resistor.
Metal Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MBB02070C2740FCT00
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53R7496
|
Newark | Mbb/Sma 0207-50 1% Ct 274R |Vishay MBB02070C2740FCT00 RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.0360 | Buy Now |
|
DISTI #
MBB02070C2740FCT00
|
Avnet Americas | MBB/SMA 0207-50 1% CT 274R (Alt: MBB02070C2740FCT00) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks, 0 Days | 0 |
|
$0.0346 / $0.0353 | Buy Now |
|
DISTI #
594-MBB02070C2740FCT
|
Mouser Electronics | Metal Film Resistors - Through Hole MBB/SMA 0207-50 1% CT 274R RoHS: Compliant | 4490 |
|
$0.0410 / $0.1000 | Buy Now |
|
|
Quest Components | 8000 |
|
$0.0450 / $0.3000 | Buy Now | |
|
DISTI #
MBB02070C2740FCT00
|
Avnet Abacus | MBBSMA 020750 1 CT 274R (Alt: MBB02070C2740FCT00) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 13 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for MBB02070C2740FCT00
MBB02070C2740FCT00 CAD Models
MBB02070C2740FCT00 Part Data Attributes
|
|
MBB02070C2740FCT00
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
MBB02070C2740FCT00
Vishay Intertechnologies
Fixed Resistor, Metal Film, 0.4W, 274ohm, 350V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE(V):350 | |
| Construction | Tubular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.6 mm | |
| Lead Length | 28 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 2.5 mm | |
| Package Length | 6.5 mm | |
| Package Style | Axial | |
| Packing Method | AMMO PACK | |
| Rated Power Dissipation (P) | 0.4 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 274 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | METAL FILM | |
| Temperature Coefficient | 50 ppm/°C | |
| Terminal Finish | TIN | |
| Terminal Shape | WIRE | |
| Tolerance | 1% | |
| Working Voltage | 350 V |
MBB02070C2740FCT00 Frequently Asked Questions (FAQ)
-
The thermal resistance (Rth) of the MBB02070C2740FCT00 is 250°C/W, which is not explicitly stated in the datasheet but can be found in Vishay's application notes or by contacting their support team.
-
While the datasheet doesn't provide explicit information on high-frequency performance, the MBB02070C2740FCT00 is a thick-film resistor, which generally has a self-resonant frequency in the range of 100 MHz to 1 GHz. However, it's recommended to consult with Vishay's application engineers or perform your own testing to ensure suitability for your specific high-frequency application.
-
According to Vishay's general guidelines for thick-film resistors, the recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 10 seconds. However, it's essential to consult the specific soldering guidelines for your assembly process and ensure that they meet the requirements of the MBB02070C2740FCT00.
-
While the datasheet doesn't provide explicit information on vibration or shock resistance, Vishay's thick-film resistors are generally designed to withstand moderate levels of vibration and shock. However, it's recommended to consult with Vishay's application engineers or perform your own testing to ensure the MBB02070C2740FCT00 meets the specific requirements of your application.
-
Yes, the MBB02070C2740FCT00 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, as stated in Vishay's product documentation and compliance statements.
