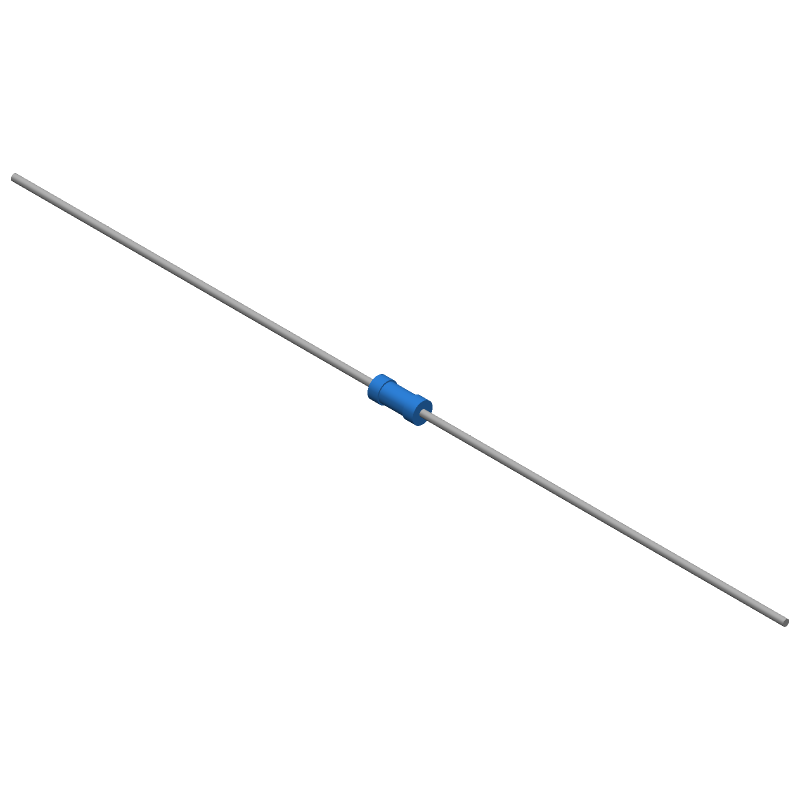

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MBA02040C2150FRP00 by Vishay Intertechnologies
Results Overview of MBA02040C2150FRP00 by Vishay Intertechnologies
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
MBA02040C2150FRP00 Information
MBA02040C2150FRP00 by Vishay Intertechnologies is a Metal Alloy Resistor.
Metal Alloy Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MBA02040C2150FRP00
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
94C3417
|
Newark | Resistor, Metal Film, 215 Ohm, 400Mw, 1%, Full Reel, Resistance:215Ohm, Product Range:Mba Series, Power Rating:400Mw, Resistance Tolerance:± 1%, Resistor Case/Package:Axial Leaded, Voltage Rating:200V Rohs Compliant: Yes |Vishay MBA02040C2150FRP00 RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0410 / $0.0470 | Buy Now |
|
DISTI #
MBA02040C2150FRP00
|
Avnet Americas | MBA/SMA 0204-50 1% RP 215R - Tape and Reel (Alt: MBA02040C2150FRP00) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 5 Weeks, 0 Days Container: Reel | 0 |
|
$0.0403 / $0.0420 | Buy Now |
|
DISTI #
594-5063JD215R0FT
|
Mouser Electronics | Metal Film Resistors - Through Hole .4watt 215ohms 1% 1/8watt body size RoHS: Compliant | 8243 |
|
$0.0420 / $0.4000 | Buy Now |
Part Details for MBA02040C2150FRP00
MBA02040C2150FRP00 CAD Models
MBA02040C2150FRP00 Part Data Attributes
|
|
MBA02040C2150FRP00
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
MBA02040C2150FRP00
Vishay Intertechnologies
Fixed Resistor, Metal Alloy, 0.4W, 215ohm, 200V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED, LEAD FREE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.90 | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | RATED AC VOLTAGE (V):200 | |
| Construction | Tubular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.5 mm | |
| Lead Length | 29 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 1.6 mm | |
| Package Length | 3.6 mm | |
| Package Style | Axial | |
| Packing Method | TR, 10 INCH | |
| Rated Power Dissipation (P) | 0.25 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 215 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | METAL FILM | |
| Temperature Coefficient | 50 ppm/°C | |
| Terminal Finish | MATTE TIN | |
| Terminal Shape | WIRE | |
| Tolerance | 1% | |
| Working Voltage | 200 V |
