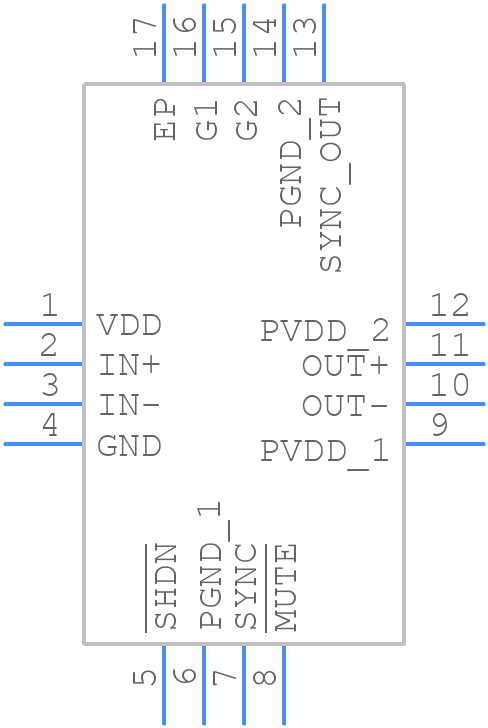

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX9759ETE+T by Analog Devices Inc
Results Overview of MAX9759ETE+T by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Price & Stock for MAX9759ETE+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX9759ETE+T
|
Mouser Electronics | Audio Amplifiers 3.2W, High-Efficiency, Low-EMI, Filterle RoHS: Compliant | 9992 |
|
$1.2100 / $2.5600 | Buy Now |
|
|
Analog Devices Inc | 3.2W, High-Efficiency, Low-EMI Min Qty: 1 Package Multiple: 1 | 251 |
|
$1.2125 / $3.8000 | Buy Now |
Part Details for MAX9759ETE+T
MAX9759ETE+T CAD Models
MAX9759ETE+T Part Data Attributes
|
|
MAX9759ETE+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX9759ETE+T
Analog Devices Inc
3.2W, High-Efficiency, Low-EMI, Filterless, Class D Audio Amplifier, 16-LFCSP-4X4X0.75, 16 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 16-LFCSP-4X4X0.75 | |
| Package Description | 4 X 4 MM, 0.80 MM HEIGHT, LEAD FREE, MO-220-WGGC, TQFN-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 16-LFCSP-4X4X0.75 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2005-05-17 | |
| Samacsys Manufacturer | Analog Devices | |
| Bandwidth-Nom | 22 kHz | |
| Consumer IC Type | CLASS D AUDIO AMPLIFIER | |
| Gain | 24 dB | |
| JESD-30 Code | S-XQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 4 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Power-Nom | 4.3 W | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC16,.16SQ,25 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Current-Max | 12 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4 mm |
Alternate Parts for MAX9759ETE+T
This table gives cross-reference parts and alternative options found for MAX9759ETE+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX9759ETE+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TAS2552YFFR | Texas Instruments | $0.9177 | 4-W, digital/analog input smart amp with I/V sense for speaker protection & integ. 8.5-V boost 30-DSBGA -40 to 85 | MAX9759ETE+T vs TAS2552YFFR |
| MAX9759ETE+ | Maxim Integrated Products | $1.4544 | Audio Amplifier, 4.3W, 1 Channel(s), 1 Func, BICMOS, 4 X 4 MM, 0.80 MM HEIGHT, LEAD FREE, MO-220-WGGC, TQFN-16 | MAX9759ETE+T vs MAX9759ETE+ |
| MAX9759ETE+T | Maxim Integrated Products | $1.7797 | Audio Amplifier, 4.3W, 1 Channel(s), 1 Func, BICMOS, 4 X 4 MM, 0.80 MM HEIGHT, LEAD FREE, MO-220-WGGC, TQFN-16 | MAX9759ETE+T vs MAX9759ETE+T |
| MAX9759ETE+ | Analog Devices Inc | Check for Price | 3.2W, High-Efficiency, Low-EMI, Filterless, Class D Audio Amplifier, 16-LFCSP-4X4X0.75, 16 Pins, -40 to 85C | MAX9759ETE+T vs MAX9759ETE+ |
