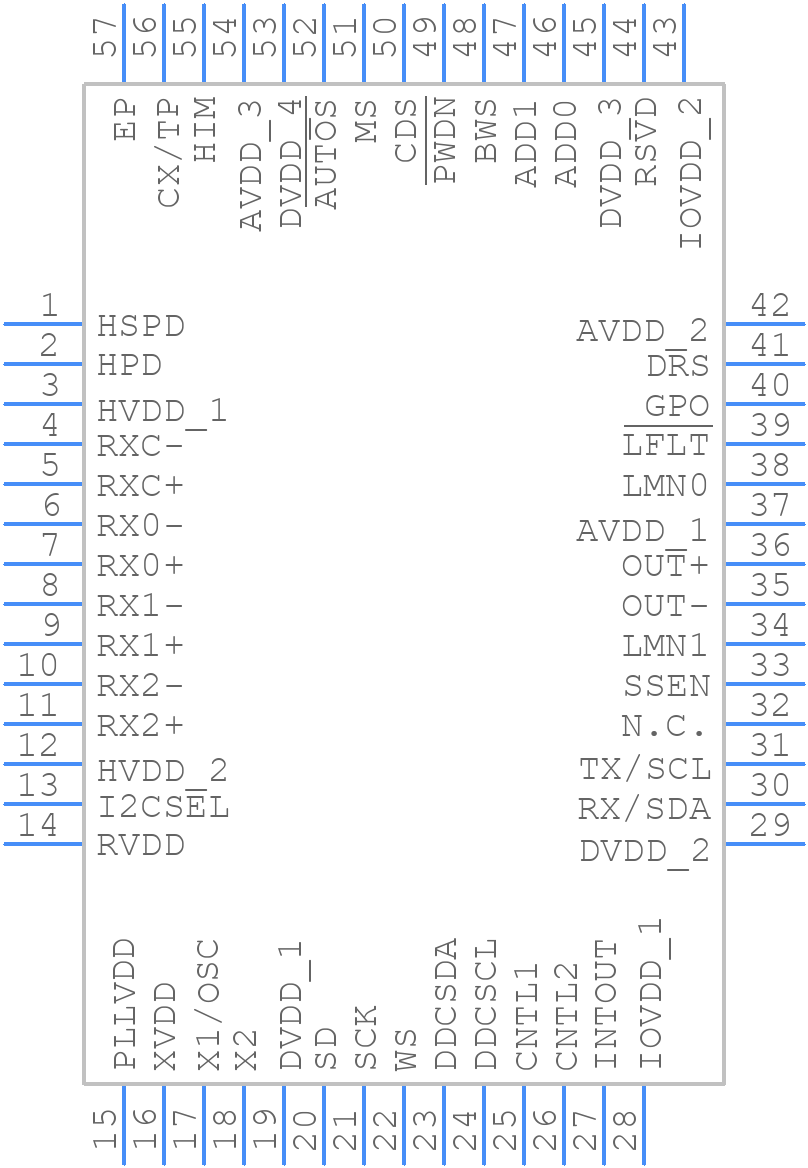

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
3.12Gbps GMSL Serializer for Coax or STP Output and HDMI Input, 56-LFCSP-8X8X0.75, 56 Pins, -40 to 105C
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
|
Analog Devices Inc | GMSL Serializer for Coax and S Package Multiple: 1 | 545 |
|
Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
MAX9291GTN/V+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX9291GTN/V+
Analog Devices Inc
3.12Gbps GMSL Serializer for Coax or STP Output and HDMI Input, 56-LFCSP-8X8X0.75, 56 Pins, -40 to 105C
|
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | ANALOG DEVICES INC | |
Part Package Code | 56-LFCSP-8X8X0.75 | |
Package Description | TQFN-56 | |
Pin Count | 56 | |
Manufacturer Package Code | 56-LFCSP-8X8X0.75 | |
Reach Compliance Code | compliant | |
Date Of Intro | 2015-11-14 | |
Samacsys Manufacturer | Analog Devices | |
Consumer IC Type | CONSUMER CIRCUIT | |
JESD-30 Code | S-XQCC-N56 | |
JESD-609 Code | e3 | |
Length | 8 mm | |
Moisture Sensitivity Level | 3 | |
Number of Functions | 1 | |
Number of Terminals | 56 | |
Operating Temperature-Max | 105 °C | |
Operating Temperature-Min | -40 °C | |
Package Body Material | UNSPECIFIED | |
Package Code | HVQCCN | |
Package Equivalence Code | LCC56,.31SQ,20 | |
Package Shape | SQUARE | |
Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
Peak Reflow Temperature (Cel) | 260 | |
Seated Height-Max | 0.8 mm | |
Supply Voltage-Max (Vsup) | 1.9 V | |
Supply Voltage-Min (Vsup) | 1.7 V | |
Surface Mount | YES | |
Technology | CMOS | |
Temperature Grade | INDUSTRIAL | |
Terminal Finish | Matte Tin (Sn) | |
Terminal Form | NO LEAD | |
Terminal Pitch | 0.5 mm | |
Terminal Position | QUAD | |
Time@Peak Reflow Temperature-Max (s) | 30 | |
Width | 8 mm |
This table gives cross-reference parts and alternative options found for MAX9291GTN/V+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX9291GTN/V+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Manufacturer | Composite Price | Description | Compare |
---|---|---|---|---|
MAX9291GTN/V+T | Maxim Integrated Products | Check for Price | IC DESERIALIZER GMSL | MAX9291GTN/V+ vs MAX9291GTN/V+T |
A good PCB layout for the MAX9291GTN/V+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device should be placed near the connector to minimize the length of the input traces.
To ensure proper power-up and configuration, the MAX9291GTN/V+ requires a power-on reset (POR) circuit to generate a reset signal during power-up. The POR circuit should be designed to provide a minimum reset pulse width of 10ms. Additionally, the device's configuration pins (e.g., ADDR, MODE) should be tied to a fixed voltage level or a pull-up/pull-down resistor to ensure proper configuration during startup.
The maximum cable length supported by the MAX9291GTN/V+ depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 10 meters (33 feet) for HDMI 2.0 applications and up to 15 meters (49 feet) for HDMI 1.4 applications, assuming a high-quality cable with minimal signal attenuation.
To troubleshoot issues with the MAX9291GTN/V+, start by verifying the power supply and clock signals to the device. Check the device's configuration pins to ensure they are properly set. Use an oscilloscope to verify the signal integrity and quality at the input and output of the device. Additionally, use a logic analyzer to verify the device's control signals and data transmission. If issues persist, consult the device's datasheet and application notes for further guidance.
Yes, the MAX9291GTN/V+ is AEC-Q100 qualified and can be used in automotive applications. However, it is essential to ensure that the device is used within its specified operating temperature range and that the system design meets the required automotive standards and specifications.
