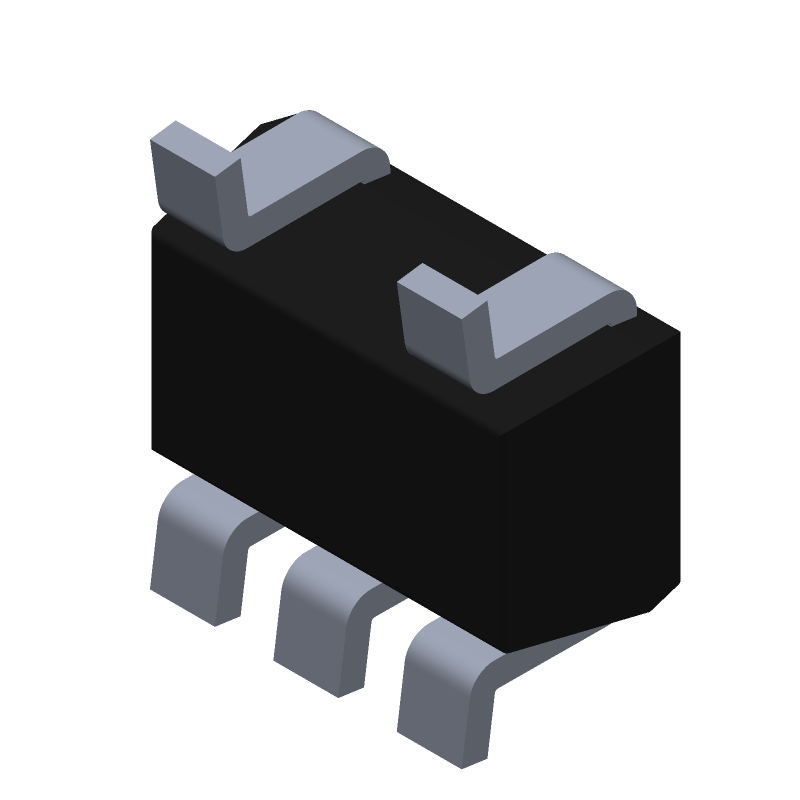

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX823TEUK+T by Analog Devices Inc
Results Overview of MAX823TEUK+T by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX823TEUK+T Information
MAX823TEUK+T by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX823TEUK+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX823TEUKT
|
Mouser Electronics | Supervisory Circuits 5-Pin Microprocessor Supervisory Circuit RoHS: Compliant | 3840 |
|
$3.2300 / $5.9900 | Buy Now |
|
DISTI #
V72:2272_26358379
|
Arrow Electronics | Processor Supervisor 3.08V 1 Active Low/Push-Pull 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2206 Container: Cut Strips | Americas - 2152 |
|
$3.2060 / $5.9190 | Buy Now |
|
|
Analog Devices Inc | 5-Pin Microprocessor Superviso Min Qty: 1 Package Multiple: 1 | 726 |
|
$2.5000 / $7.5400 | Buy Now |
|
DISTI #
61189529
|
Verical | Processor Supervisor 3.08V 1 Active Low/Push-Pull 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2206 | Americas - 2152 |
|
$3.2060 / $5.9190 | Buy Now |
|
DISTI #
MAX823TEUK+T
|
TME | IC: supervisor circuit, power on reset monitor (PoR), push-pull Min Qty: 2500 | 0 |
|
$2.7500 | RFQ |
Part Details for MAX823TEUK+T
MAX823TEUK+T CAD Models
MAX823TEUK+T Part Data Attributes
|
|
MAX823TEUK+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX823TEUK+T
Analog Devices Inc
5-Pin Microprocessor Supervisory Circuits with Watchdog Timer and Manual Reset, 5-SOT_23-N/A, 5 Pins, -40 to 125C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 5-SOT_23-N/A | |
| Package Description | SOT-23,5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | 5-SOT_23-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1996-03-07 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Supply Current-Max (Isup) | 0.012 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3.15 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +3.08V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.625 mm |
Alternate Parts for MAX823TEUK+T
This table gives cross-reference parts and alternative options found for MAX823TEUK+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX823TEUK+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| APX823-31W5G-7 | Diodes Incorporated | $0.2585 | Power Supply Management Circuit, Fixed, 1 Channel, PDSO5, GREEN, SOT-25, 5 PIN | MAX823TEUK+T vs APX823-31W5G-7 |
| MAX823TEUK-T | Maxim Integrated Products | Check for Price | Power Supply Management Circuit, Fixed, 1 Channel, BICMOS, PDSO5, MO-178AA, SOT-23, 5 PIN | MAX823TEUK+T vs MAX823TEUK-T |
| MAX823TEUK+ | Maxim Integrated Products | Check for Price | Power Supply Management Circuit, Fixed, 1 Channel, BICMOS, PDSO5, SOT-23, 5 PIN | MAX823TEUK+T vs MAX823TEUK+ |
MAX823TEUK+T Frequently Asked Questions (FAQ)
-
The MAX823TEUK+T requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate. Additionally, it is recommended to use a 10uF capacitor between the VIN and GND pins to filter out noise.
-
The MAX823TEUK+T requires a proper power-up sequence to ensure reliable operation. It is recommended to power up the device with a slow ramp-up of the input voltage (VIN) to avoid voltage spikes and ensure the internal voltage regulators are properly initialized. Additionally, it is recommended to add a 1uF capacitor between the EN and GND pins to filter out noise and ensure proper enablement of the device.
-
The MAX823TEUK+T can handle input voltages up to 5.5V, but it is recommended to operate the device within the specified operating range of 2.7V to 5.5V to ensure optimal performance and reliability. Exceeding the maximum input voltage can damage the device or affect its performance.
-
To troubleshoot issues with the MAX823TEUK+T, it is recommended to check the input voltage, output voltage, and enable pin (EN) to ensure they are within the specified operating range. Additionally, check the device's thermal performance and ensure it is operating within the specified temperature range. If the issue persists, consult the datasheet and application notes for further guidance or contact Analog Devices Inc. support.
-
The MAX823TEUK+T is rated for operation up to 125°C, but it is recommended to derate the device's performance and ensure proper thermal management to prevent overheating. Exceeding the maximum operating temperature can affect the device's performance, reliability, and lifespan.
