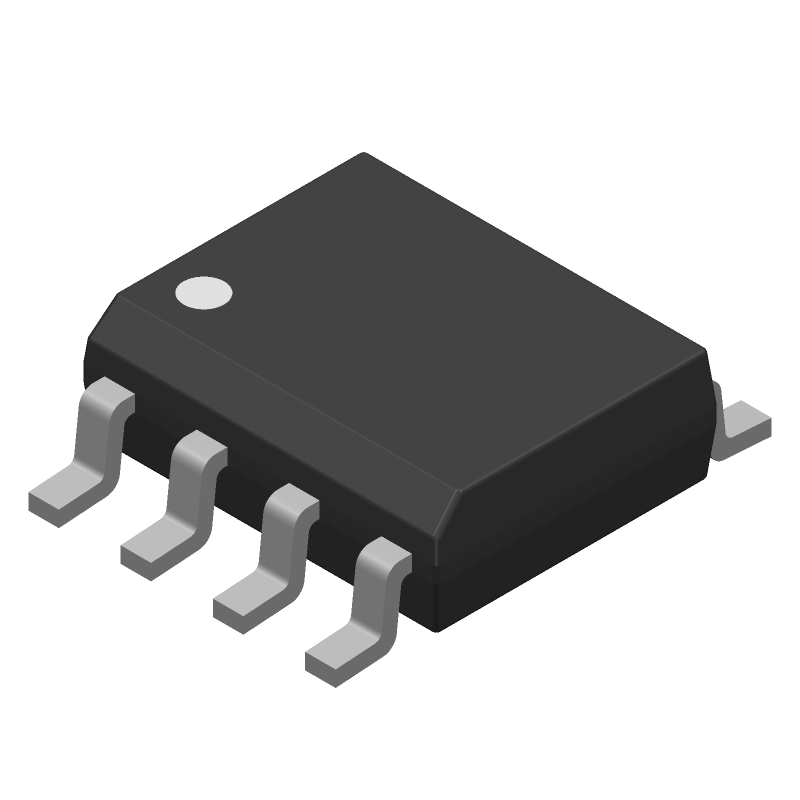

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX7500MSA+T by Analog Devices Inc
Results Overview of MAX7500MSA+T by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Audio and Video Systems
Aerospace and Defense
Entertainment and Gaming
Communication and Networking
MAX7500MSA+T Information
MAX7500MSA+T by Analog Devices Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for MAX7500MSA+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73Y5962
|
Newark | Temperature Sensor, 2Deg C, Nsoic-8, Sensor Output Type:Digital, Accuracy:± 2°C, Sensor Case/Package:Nsoic, No. Of Pins:8Pins, Supply Voltage Min:3V, Supply Voltage Max:5.5V, No. Of Channels:1Channels, Resolution:9 Bits Rohs Compliant: Yes |Analog Devices MAX7500MSA+T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1279 |
|
$0.9900 | Buy Now |
|
DISTI #
700-MAX7500MSAT
|
Mouser Electronics | Board Mount Temperature Sensors Digital Temperature Sensors and Thermal RoHS: Compliant | 9544 |
|
$1.4700 / $2.8600 | Buy Now |
|
|
Analog Devices Inc | Digital Temperature Sensors an Min Qty: 1 Package Multiple: 1 | 24964 |
|
$1.4750 / $2.7800 | Buy Now |
Part Details for MAX7500MSA+T
MAX7500MSA+T CAD Models
MAX7500MSA+T Part Data Attributes
|
|
MAX7500MSA+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX7500MSA+T
Analog Devices Inc
Digital Temperature Sensors and Thermal Watchdog with Bus Lockup Protection, 8-SOIC_N-150_MIL, 8 Pins, -55 to 125C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | 0.150 INCH, ROHS COMPLIANT, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2004-08-10 | |
| Samacsys Manufacturer | Analog Devices | |
| Accuracy-Max (Cel) | 3 Cel | |
| Additional Feature | THERMAL WATCHDOG | |
| Body Breadth | 3.9 mm | |
| Body Height | 1.55 mm | |
| Body Length or Diameter | 4.9 mm | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Bits | 9 | |
| Number of Terminals | 8 | |
| Operating Current-Max | 0.25 mA | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Interface Type | 2-WIRE INTERFACE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | SOLDER |
Alternate Parts for MAX7500MSA+T
This table gives cross-reference parts and alternative options found for MAX7500MSA+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX7500MSA+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX7500MSA+ | Analog Devices Inc | $1.8452 | Digital Temperature Sensors and Thermal Watchdog with Bus Lockup Protection, 8-SOIC_N-150_MIL, 8 Pins, -55 to 125C | MAX7500MSA+T vs MAX7500MSA+ |
| MAX7500MSA-T | Maxim Integrated Products | Check for Price | Serial Switch/Digital Sensor, 9 Bit(s), 3Cel, CMOS, Rectangular, 8 Pin, Surface Mount, 0.150 INCH, MS-012AA, SOIC-8 | MAX7500MSA+T vs MAX7500MSA-T |
| MAX7500MSA+ | Maxim Integrated Products | Check for Price | Serial Switch/Digital Sensor, 9 Bit(s), 3Cel, CMOS, Rectangular, 8 Pin, Surface Mount, SOIC-8 | MAX7500MSA+T vs MAX7500MSA+ |
MAX7500MSA+T Frequently Asked Questions (FAQ)
-
The MAX7500MSA+T requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and improve thermal performance.
-
The selection of input and output capacitors for the MAX7500MSA+T depends on the specific application requirements. In general, it is recommended to use low-ESR capacitors with a value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor. The datasheet provides more detailed guidance on capacitor selection.
-
The MAX7500MSA+T is rated for operation over a temperature range of -40°C to +125°C. However, the device may not operate within specifications at the extreme ends of this range, and derating may be necessary for high-temperature applications.
-
The MAX7500MSA+T requires a controlled power-up and power-down sequence to ensure proper operation. It is recommended to follow the power-up and power-down sequences outlined in the datasheet, including ramping up the input voltage slowly and ensuring that the enable pin is properly controlled.
-
The typical startup time for the MAX7500MSA+T is around 1ms to 2ms, depending on the input voltage and output load. However, this time can vary depending on the specific application and operating conditions.
