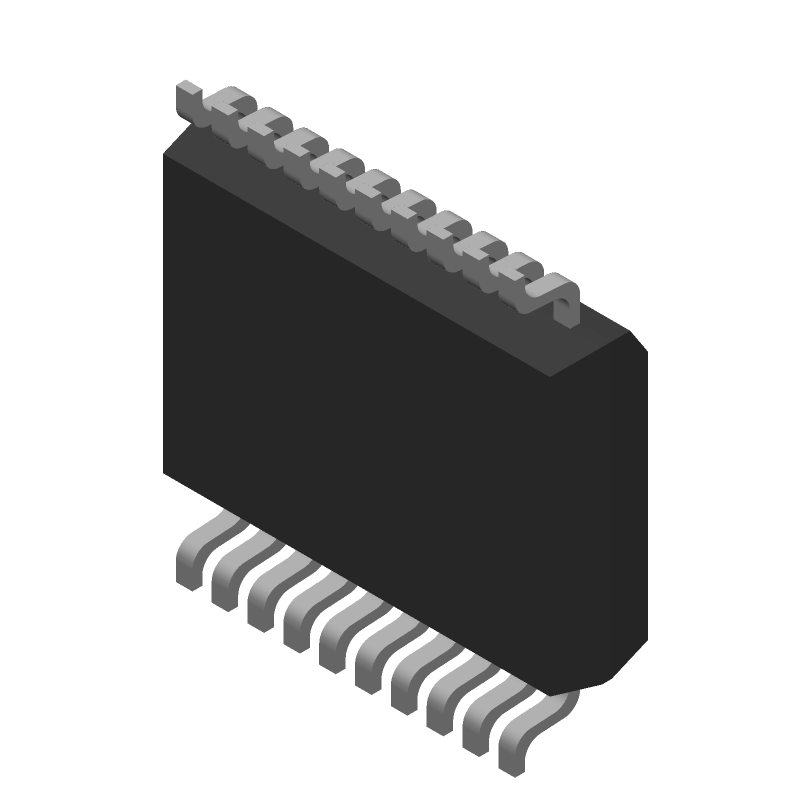

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX6818EAP+T by Analog Devices Inc
Results Overview of MAX6818EAP+T by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MAX6818EAP+T Information
MAX6818EAP+T by Analog Devices Inc is an Other Logic IC.
Other Logic ICs are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MAX6818EAP+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX6818EAPT
|
Mouser Electronics | Supervisory Circuits 15kV ESD-Protected, Single/Dual/Octal, CMOS Switch Debouncers RoHS: Compliant | 1867 |
|
$5.9100 / $10.3500 | Buy Now |
|
DISTI #
V72:2272_26379635
|
Arrow Electronics | Switch Debouncer 20-Pin SSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2507 Container: Cut Strips | Americas - 298 |
|
$5.8730 / $10.2400 | Buy Now |
|
|
Analog Devices Inc | ±15kV ESD-Protected, Single/Du Min Qty: 1 Package Multiple: 1 | 908 |
|
$6.1503 / $10.3500 | Buy Now |
Part Details for MAX6818EAP+T
MAX6818EAP+T CAD Models
MAX6818EAP+T Part Data Attributes
|
|
MAX6818EAP+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX6818EAP+T
Analog Devices Inc
±15kV ESD-Protected, Single/Dual/Octal, CMOS Switch Debouncers, 20-SSOP-5.3_MM, 20 Pins, -40 to 125C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 20-SSOP-5.3_MM | |
| Package Description | SSOP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | 20-SSOP-5.3_MM | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1999-01-03 | |
| Samacsys Manufacturer | Analog Devices | |
| Family | 6816 | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 7.2 mm | |
| Logic IC Type | LOGIC CIRCUIT | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.99 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.29 mm |
Alternate Parts for MAX6818EAP+T
This table gives cross-reference parts and alternative options found for MAX6818EAP+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX6818EAP+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX6818EAP+T | Maxim Integrated Products | $6.0212 | Logic Circuit, CMOS, PDSO20, 5.30 X 6.50 MM, SSOP-20 | MAX6818EAP+T vs MAX6818EAP+T |
| MAX6818EAP/GG8 | Analog Devices Inc | Check for Price | ±15kV ESD-Protected, Single/Dual/Octal, CMOS Switch Debouncers, N/A, 20 Pins, -40 to 125C | MAX6818EAP+T vs MAX6818EAP/GG8 |
| MAX6818EAP/GG8 | Maxim Integrated Products | Check for Price | Logic Circuit, BICMOS, PDSO20, SSOP-20 | MAX6818EAP+T vs MAX6818EAP/GG8 |
| MAX6818EAP | Maxim Integrated Products | Check for Price | Logic Circuit, BICMOS, PDSO20, SSOP-20 | MAX6818EAP+T vs MAX6818EAP |
| MAX6818EAP+ | Analog Devices Inc | Check for Price | ±15kV ESD-Protected, Single/Dual/Octal, CMOS Switch Debouncers, 20-SSOP-5.3_MM, 20 Pins, -40 to 125C | MAX6818EAP+T vs MAX6818EAP+ |
MAX6818EAP+T Frequently Asked Questions (FAQ)
-
A good PCB layout for the MAX6818EAP+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
-
The sense resistor value depends on the current range you want to measure and the desired accuracy. A smaller sense resistor value provides higher accuracy but may saturate at higher currents, while a larger value provides a wider current range but may be less accurate. Typically, a value between 1mΩ and 10mΩ is suitable for most applications.
-
The MAX6818EAP+T has a maximum voltage rating of 36V, but it's recommended to operate it within the specified operating voltage range of 4.5V to 28V to ensure reliable operation and accuracy.
-
No, the MAX6818EAP+T is designed to measure unidirectional currents. If you need to measure bidirectional currents, you'll need to use a different device or add additional circuitry to handle the reverse current direction.
-
Calibration involves trimming the internal offset and gain of the device to match your specific application. You can use the device's built-in calibration registers or perform an external calibration using a known current source and a precision resistor.
