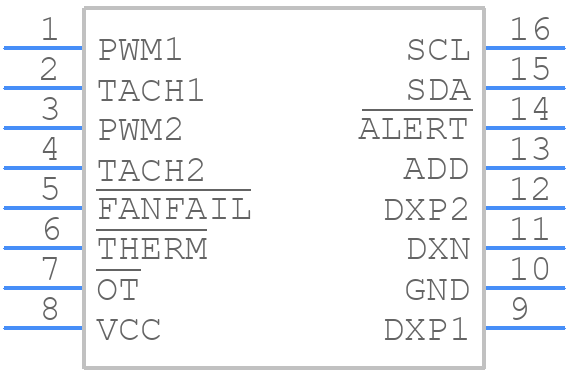

Part Symbol
-
Footprint
-

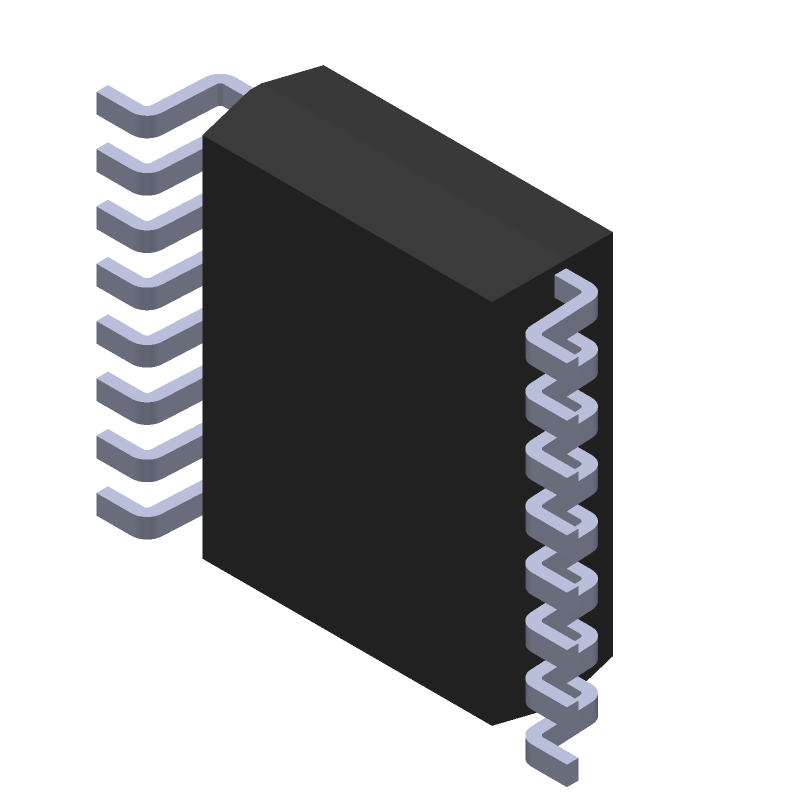

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX6639FAEE+ by Analog Devices Inc
Results Overview of MAX6639FAEE+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX6639FAEE+ Information
MAX6639FAEE+ by Analog Devices Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for MAX6639FAEE+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX6639FAEE
|
Mouser Electronics | Board Mount Temperature Sensors 2-Channel Temperature Monitor with Dual, RoHS: Compliant | 5600 |
|
$3.1200 / $6.3700 | Buy Now |
|
|
Analog Devices Inc | 2-Channel Temperature Monitor Package Multiple: 1 | 542 |
|
$1.7375 / $4.9200 | Buy Now |
Part Details for MAX6639FAEE+
MAX6639FAEE+ CAD Models
MAX6639FAEE+ Part Data Attributes
|
|
MAX6639FAEE+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX6639FAEE+
Analog Devices Inc
2-Channel Temperature Monitor with Dual, Automatic, PWM Fan-Speed Controller, 16-QSOP-150_MIL, 16 Pins, -40 to 125C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 16-QSOP-150_MIL | |
| Package Description | ROHS COMPLIANT, QSOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 16-QSOP-150_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2005-05-19 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 4.89 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 1 mA | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for MAX6639FAEE+
This table gives cross-reference parts and alternative options found for MAX6639FAEE+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX6639FAEE+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX6639FAEE+ | Maxim Integrated Products | $2.8568 | Analog Circuit, 1 Func, BICMOS, PDSO16, ROHS COMPLIANT, QSOP-16 | MAX6639FAEE+ vs MAX6639FAEE+ |
| MAX6639AEE+ | Maxim Integrated Products | $3.2327 | Analog Circuit, 1 Func, BICMOS, PDSO16, ROHS COMPLIANT, QSOP-16 | MAX6639FAEE+ vs MAX6639AEE+ |
| MAX6639AEE+T | Analog Devices Inc | Check for Price | 2-Channel Temperature Monitor with Dual, Automatic, PWM Fan-Speed Controller, 16-QSOP-150_MIL, 16 Pins, -40 to 125C | MAX6639FAEE+ vs MAX6639AEE+T |
| MAX6639YAEE+ | Maxim Integrated Products | Check for Price | Analog Circuit, 1 Func, BICMOS, PDSO16, 0.150 INCH, 0.025 INCH PITCH, ROHS COMPLIANT, MO-137AB, QSOP-16 | MAX6639FAEE+ vs MAX6639YAEE+ |
| MAX6639AEE-T | Maxim Integrated Products | Check for Price | Analog Circuit, 1 Func, BICMOS, PDSO16, 0.150 INCH, 0.025 INCH PITCH, MO-137AB, QSOP-16 | MAX6639FAEE+ vs MAX6639AEE-T |
| MAX6639AEE+ | Analog Devices Inc | Check for Price | 2-Channel Temperature Monitor with Dual, Automatic, PWM Fan-Speed Controller, 16-QSOP-150_MIL, 16 Pins, -40 to 125C | MAX6639FAEE+ vs MAX6639AEE+ |
| MAX6639YAEE+T | Maxim Integrated Products | Check for Price | Analog Circuit, 1 Func, BICMOS, PDSO16, 0.150 INCH, 0.025 INCH PITCH, ROHS COMPLIANT, MO-137AB, QSOP-16 | MAX6639FAEE+ vs MAX6639YAEE+T |
