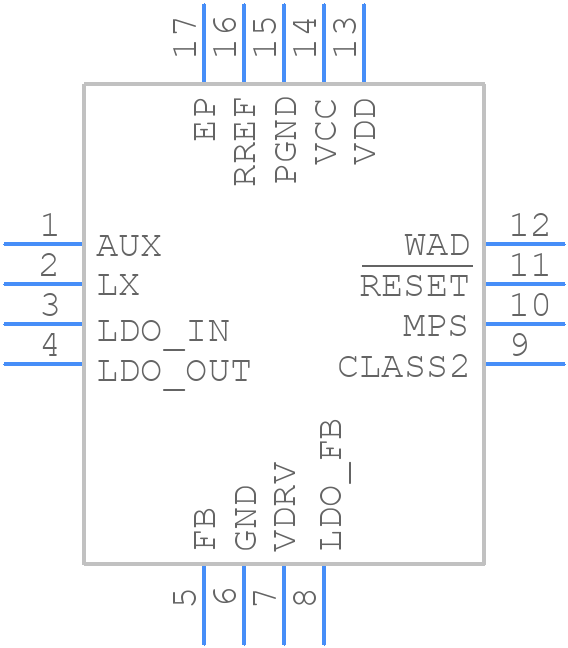

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX5987AETE+T by Analog Devices Inc
Results Overview of MAX5987AETE+T by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX5987AETE+T Information
MAX5987AETE+T by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX5987AETE+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX5987AETE+T
|
Mouser Electronics | Switching Voltage Regulators IEEE802.3 af High Efficiency Powered Dev RoHS: Compliant | 2474 |
|
$5.7200 / $10.3500 | Buy Now |
|
|
Analog Devices Inc | IEEE802.3 af High Efficiency P Min Qty: 1 Package Multiple: 1 | 491 |
|
$5.7250 / $10.3500 | Buy Now |
Part Details for MAX5987AETE+T
MAX5987AETE+T CAD Models
MAX5987AETE+T Part Data Attributes
|
|
MAX5987AETE+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX5987AETE+T
Analog Devices Inc
IEEE 802.3af-Compliant, High-Efficiency, Class 1/Class 2, Powered Devices with Integrated DC-DC Converter, 16-LFCSP-5X5X0.75, 16 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 16-LFCSP-5X5X0.75 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 16-LFCSP-5X5X0.75 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2012-05-02 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| JESD-30 Code | S-PQCC-N16 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QCCN | |
| Package Equivalence Code | LCC16,.2SQ,32 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Supply Current-Max (Isup) | 4.5 mA | |
| Supply Voltage-Nom (Vsup) | 48 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
