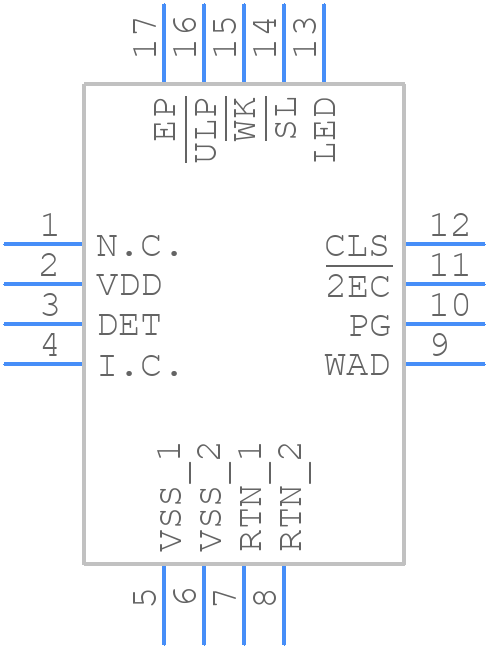

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX5982AETE+ by Analog Devices Inc
Results Overview of MAX5982AETE+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX5982AETE+ Information
MAX5982AETE+ by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX5982AETE+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX5982AETE+
|
Mouser Electronics | Hot Swap Voltage Controllers IEEE 802.3af/at-Compliant, Powered Devic RoHS: Compliant | 0 |
|
$6.1000 / $6.1300 | Order Now |
|
|
Analog Devices Inc | IEEE 802.3af/at-Compliant, Pow Package Multiple: 1 | 1699 |
|
$4.4800 / $10.9900 | Buy Now |
Part Details for MAX5982AETE+
MAX5982AETE+ CAD Models
MAX5982AETE+ Part Data Attributes
|
|
MAX5982AETE+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX5982AETE+
Analog Devices Inc
IEEE 802.3af/at-Compliant, Powered Device Interface Controllers with Integrated 70W High-Power MOSFET, 16-LFCSP-5X5X0.75, 16 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 16-LFCSP-5X5X0.75 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 16-LFCSP-5X5X0.75 | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2011-07-20 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | RESET THRESHOLD VOLTAGE IS 3.8V | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | S-XQCC-N16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC16,.2SQ,32 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Current-Max (Isup) | 0.55 mA | |
| Supply Voltage-Max (Vsup) | 60 V | |
| Supply Voltage-Nom (Vsup) | 48 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | QUAD | |
| Threshold Voltage-Nom | +3.8V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
