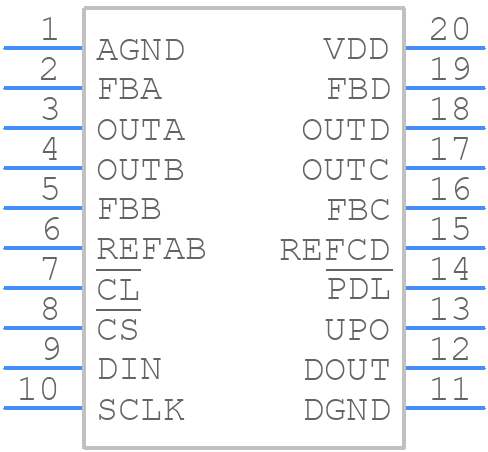

Part Symbol
-

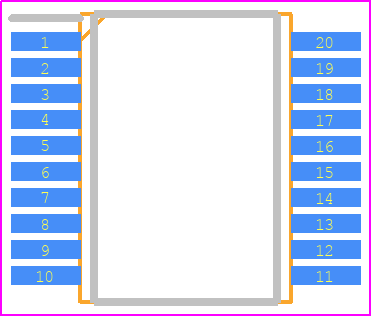

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX5253BEAP+T by Analog Devices Inc
Results Overview of MAX5253BEAP+T by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Entertainment and Gaming
Automotive
MAX5253BEAP+T Information
MAX5253BEAP+T by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for MAX5253BEAP+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX5253BEAPT
|
Mouser Electronics | Digital to Analog Converters - DAC +3V, Quad, 12-Bit Voltage-Output DAC wit RoHS: Compliant | 0 |
|
$22.0700 | Order Now |
|
|
Analog Devices Inc | +3V, Quad, 12-Bit Voltage-Outp Min Qty: 2000 Package Multiple: 1 | 0 |
|
$17.6600 / $23.1973 | Buy Now |
|
|
Vyrian | Peripheral ICs | 786 |
|
RFQ |
Part Details for MAX5253BEAP+T
MAX5253BEAP+T CAD Models
MAX5253BEAP+T Part Data Attributes
|
|
MAX5253BEAP+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX5253BEAP+T
Analog Devices Inc
+3V, Quad, 12-Bit Voltage-Output DAC with Serial Interface, 20-SSOP-5.3_MM, 20 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 20-SSOP-5.3_MM | |
| Package Description | SSOP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | 20-SSOP-5.3_MM | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1996-09-23 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog Output Voltage-Max | 3 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY, OFFSET BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 7.2 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.99 mm | |
| Settling Time-Nom (tstl) | 16 µs | |
| Supply Current-Max | 0.98 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.29 mm |
Alternate Parts for MAX5253BEAP+T
This table gives cross-reference parts and alternative options found for MAX5253BEAP+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX5253BEAP+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX5253BCAP+ | Maxim Integrated Products | $18.3523 | D/A Converter, 1 Func, Serial Input Loading, 16us Settling Time, PDSO20, SSOP-20 | MAX5253BEAP+T vs MAX5253BCAP+ |
| MAX5253BEAP+ | Maxim Integrated Products | Check for Price | D/A Converter, 1 Func, Serial Input Loading, 16us Settling Time, PDSO20, SSOP-20 | MAX5253BEAP+T vs MAX5253BEAP+ |
| MAX5253BCAP-T | Maxim Integrated Products | Check for Price | D/A Converter, 1 Func, Serial Input Loading, 16us Settling Time, PDSO20, SSOP-20 | MAX5253BEAP+T vs MAX5253BCAP-T |
