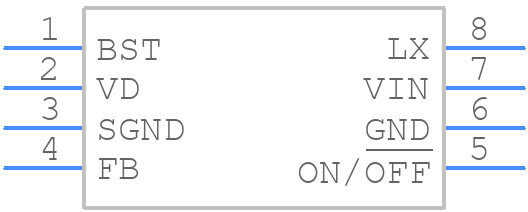

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX5033DUSA+ by Analog Devices Inc
Results Overview of MAX5033DUSA+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX5033DUSA+ Information
MAX5033DUSA+ by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX5033DUSA+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX5033DUSA
|
Mouser Electronics | Switching Voltage Regulators 500mA, 76V, High-Efficiency, MAXPower St RoHS: Compliant | 500 |
|
$2.5400 / $4.9000 | Buy Now |
|
|
Analog Devices Inc | 500mA, 76V, High-Efficiency, M Package Multiple: 1 | 824 |
|
$2.5003 / $6.4000 | Buy Now |
Part Details for MAX5033DUSA+
MAX5033DUSA+ CAD Models
MAX5033DUSA+ Part Data Attributes
|
|
MAX5033DUSA+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX5033DUSA+
Analog Devices Inc
500mA, 76V, High-Efficiency, MAXPower Step-Down DC-DC Converter, 8-SOIC_N-150_MIL, 8 Pins, 0 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | ROHS COMPLIANT, SOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2003-11-05 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO OPERATES IN ADJUSTABLE MODE FROM 1.25 TO 13.2V; PFM CONTROL TECHNIQUE ALSO POSSIBLE | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 76 V | |
| Input Voltage-Min | 7.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 2.1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 135 kHz | |
| Technology | BICMOS | |
| Temperature Grade | OTHER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for MAX5033DUSA+
This table gives cross-reference parts and alternative options found for MAX5033DUSA+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX5033DUSA+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX5033DUSA+ | Maxim Integrated Products | $3.0097 | Switching Regulator, Voltage-mode, 2.1A, 135kHz Switching Freq-Max, BICMOS, PDSO8, ROHS COMPLIANT, SOP-8 | MAX5033DUSA+ vs MAX5033DUSA+ |
| MAX5033DUSA-T | Maxim Integrated Products | Check for Price | Switching Regulator, Voltage-mode, 2.1A, 135kHz Switching Freq-Max, BICMOS, PDSO8, SOP-8 | MAX5033DUSA+ vs MAX5033DUSA-T |
| MAX5033DUSA+T | Analog Devices Inc | Check for Price | 500mA, 76V, High-Efficiency, MAXPower Step-Down DC-DC Converter, 8-SOIC_N-150_MIL, 8 Pins, 0 to 85C | MAX5033DUSA+ vs MAX5033DUSA+T |
MAX5033DUSA+ Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the MAX5033DUSA+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a solid ground plane is recommended. Refer to the application note AN-1149 for more details.
-
To ensure stability, make sure to follow the recommended component values and layout guidelines. Also, ensure that the input and output capacitors have a low equivalent series resistance (ESR) and are placed close to the device. Additionally, the device's feedback loop should be properly compensated to prevent oscillation.
-
The maximum input voltage that the MAX5033DUSA+ can handle is 28V. However, the recommended maximum input voltage is 24V to ensure reliable operation and to prevent damage to the device.
-
The MAX5033DUSA+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output current and input voltage at high temperatures to ensure reliable operation.
-
To troubleshoot issues with the MAX5033DUSA+, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the recommended component values are used. Check for any signs of overheating, such as excessive temperature or current consumption. Use an oscilloscope to check for oscillations or other anomalies in the output voltage.
