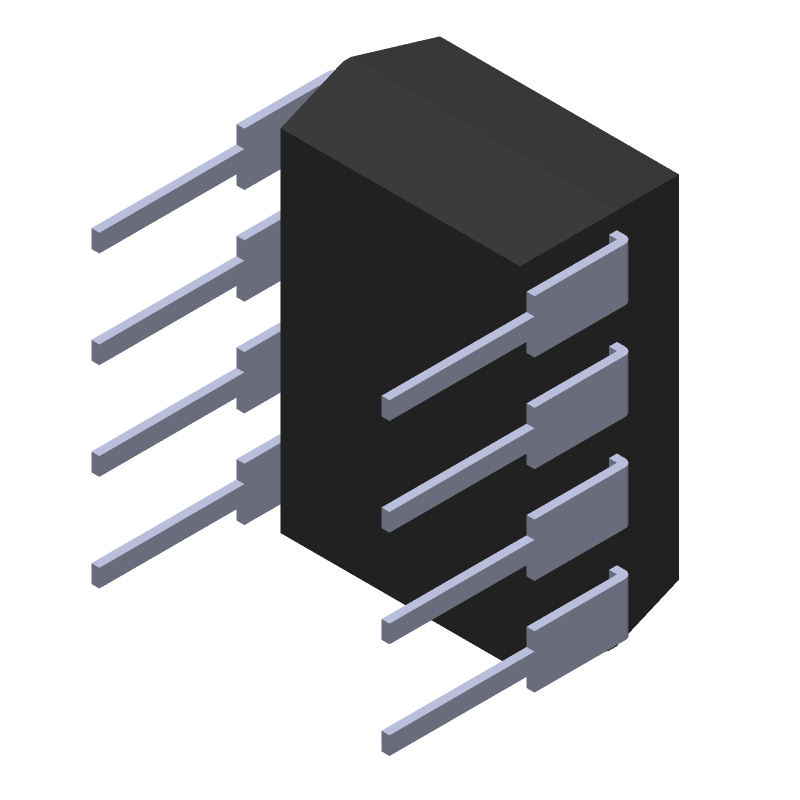

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX488EPA+ by Analog Devices Inc
Results Overview of MAX488EPA+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (9 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX488EPA+ Information
MAX488EPA+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX488EPA+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX488EPA
|
Mouser Electronics | RS-422/RS-485 Interface IC Low-Power, Slew-Rate-Limited RS-485/RS-4 RoHS: Compliant | 175 |
|
$4.1900 / $7.5400 | Buy Now |
|
|
Analog Devices Inc | Low-Power, Slew-Rate-Limited R Package Multiple: 1 | 12413 |
|
$4.4581 / $7.5400 | Buy Now |
Part Details for MAX488EPA+
MAX488EPA+ CAD Models
MAX488EPA+ Part Data Attributes
|
|
MAX488EPA+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX488EPA+
Analog Devices Inc
Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceivers, 8-PDIP-300_MIL, 8 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-PDIP-300_MIL | |
| Package Description | PLASTIC, DIP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-PDIP-300_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2000-01-13 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | 1 RECEIVER ACTIVE UNDER SHUTDOWN; TRISTATABLE RECEIVER | |
| Differential Output | YES | |
| Driver Number of Bits | 1 | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-422; EIA-485 | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 9.375 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 1.5 V | |
| Output Characteristics | TOTEM-POLE | |
| Output Low Current-Max | 0.004 A | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 2000 ns | |
| Receiver Number of Bits | 1 | |
| Seated Height-Max | 4.572 mm | |
| Supply Current-Max | 0.25 mA | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 2000 ns | |
| Width | 7.62 mm |
Alternate Parts for MAX488EPA+
This table gives cross-reference parts and alternative options found for MAX488EPA+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX488EPA+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADM488AN | Rochester Electronics LLC | Check for Price | Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, BICMOS, PDIP8, PLASTIC, MS-001BA, DIP-8 | MAX488EPA+ vs ADM488AN |
| ADM488ANZ | Rochester Electronics LLC | Check for Price | Line Transceiver, 1 Func, 1 Driver, 1 Rcvr, BICMOS, PDIP8, LEAD FREE, PLASTIC, MS-001BA, DIP-8 | MAX488EPA+ vs ADM488ANZ |
| ADM488AN | Analog Devices Inc | Check for Price | 5 V, Slew-Rate Limited, Low Power, 250 kbps, Full Duplex EIA RS-485 Transceiver | MAX488EPA+ vs ADM488AN |
MAX488EPA+ Frequently Asked Questions (FAQ)
-
A good layout and routing practice for the MAX488EPA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the signal sources. Additionally, it's recommended to use a shielded cable for the RS-485 bus and to keep the cable away from noise sources.
-
To ensure reliable communication in a noisy industrial environment, it's recommended to use a shielded cable, twisted pair wiring, and a common-mode choke to reduce electromagnetic interference (EMI). Additionally, implementing error-checking mechanisms such as CRC or checksum can help detect and correct errors caused by noise.
-
The maximum cable length supported by the MAX488EPA+ depends on the data rate, cable characteristics, and noise environment. As a general guideline, the maximum cable length is approximately 4000 feet (1219 meters) at a data rate of 10 Mbps. However, it's recommended to consult the datasheet and perform tests to determine the maximum cable length for a specific application.
-
The MAX488EPA+ can be configured for half-duplex or full-duplex operation by controlling the DE (driver enable) and RE (receiver enable) pins. For half-duplex operation, the DE and RE pins are toggled to switch between transmit and receive modes. For full-duplex operation, the DE pin is held high and the RE pin is held low to enable simultaneous transmission and reception.
-
The recommended termination scheme for the RS-485 bus involves using a 120-ohm termination resistor at each end of the bus to reduce reflections and improve signal integrity. Additionally, it's recommended to use a biasing network to maintain a stable common-mode voltage and improve noise immunity.
