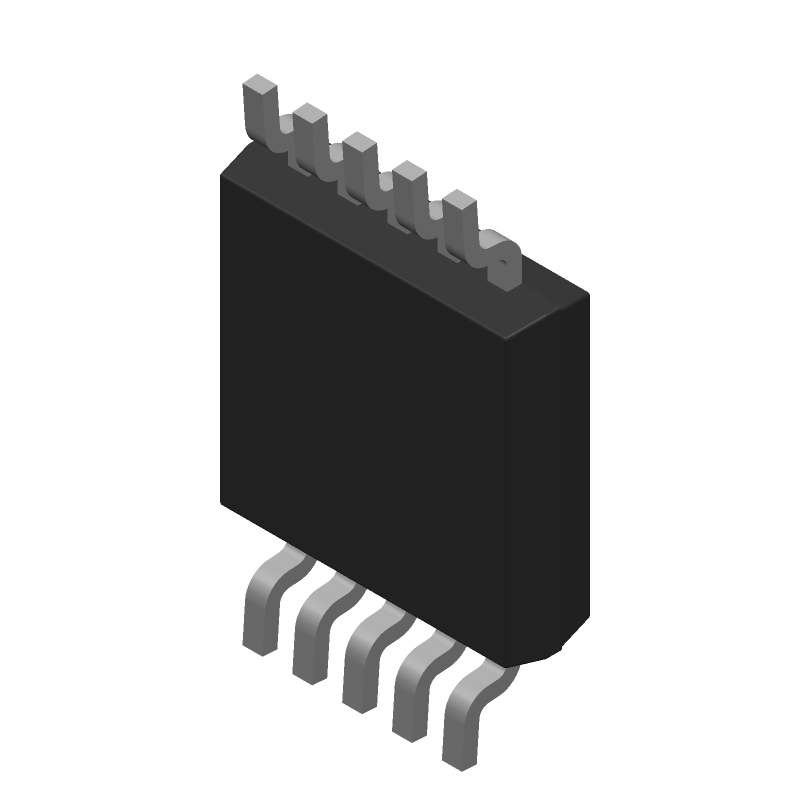

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX4684EUB+T by Analog Devices Inc
Results Overview of MAX4684EUB+T by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Entertainment and Gaming
Communication and Networking
Automotive
MAX4684EUB+T Information
MAX4684EUB+T by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for MAX4684EUB+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX4684EUB+T
|
Mouser Electronics | Analog Switch ICs 0.5Ohm/0.8Ohm Low-Voltage, Dual SPDT Ana RoHS: Compliant | 2323 |
|
$3.0900 / $5.5500 | Buy Now |
|
DISTI #
V36:1790_26380537
|
Arrow Electronics | Analog Switch Dual SPDT 10-Pin uMAX T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks Date Code: 2446 | Americas - 2500 |
|
$2.8490 / $2.9890 | Buy Now |
|
|
Analog Devices Inc | 0.5Ohm/0.8Ohm Low-Voltage, Dua Min Qty: 1 Package Multiple: 1 | 444 |
|
$3.1110 / $5.5500 | Buy Now |
Part Details for MAX4684EUB+T
MAX4684EUB+T CAD Models
MAX4684EUB+T Part Data Attributes
|
|
MAX4684EUB+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX4684EUB+T
Analog Devices Inc
0.5Ω/0.8Ω Low-Voltage, Dual SPDT Analog Switches in UCSP, 10-MINI_SO-N/A, 10 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 10-MINI_SO-N/A | |
| Package Description | ROHS COMPLIANT, UMAX-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | 10-MINI_SO-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2001-01-03 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SPDT | |
| JESD-30 Code | S-PDSO-G10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Off-state Isolation-Nom | 64 dB | |
| On-state Resistance Match-Nom | 0.06 Ω | |
| On-state Resistance-Max (Ron) | 0.8 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | SEPARATE OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 3.3 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 40 ns | |
| Switch-on Time-Max | 60 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for MAX4684EUB+T
This table gives cross-reference parts and alternative options found for MAX4684EUB+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX4684EUB+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX4684EUB+T | Maxim Integrated Products | $3.8509 | SPDT, 1 Func, 2 Channel, BICMOS, PDSO10, ROHS COMPLIANT, UMAX-10 | MAX4684EUB+T vs MAX4684EUB+T |
MAX4684EUB+T Frequently Asked Questions (FAQ)
-
A good PCB layout for the MAX4684EUB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
-
The MAX4684EUB+T requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. Power sequencing is not critical, but it's recommended to power the device after the input signals are stable to prevent unwanted switching.
-
The MAX4684EUB+T has an operating temperature range of -40°C to +125°C. The device's performance may degrade at higher temperatures, with a decrease in switching frequency and an increase in propagation delay. It's recommended to operate the device within the specified temperature range for optimal performance.
-
To troubleshoot issues with the MAX4684EUB+T, start by verifying the power supply and input signals. Check for proper power sequencing, input signal integrity, and output loading. Use an oscilloscope to monitor the input and output signals, and check for any signs of noise or oscillation. If the issue persists, consult the datasheet and application notes for guidance.
-
The MAX4684EUB+T is a commercial-grade device, but it can be used in high-reliability applications with proper design and testing. The device is compliant with various industry standards, including RoHS, REACH, and WEEE. However, it's recommended to consult with Analog Devices Inc for specific certification and compliance information for safety-critical applications.
