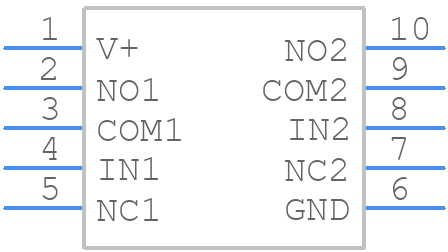

Part Symbol
-
Footprint
-

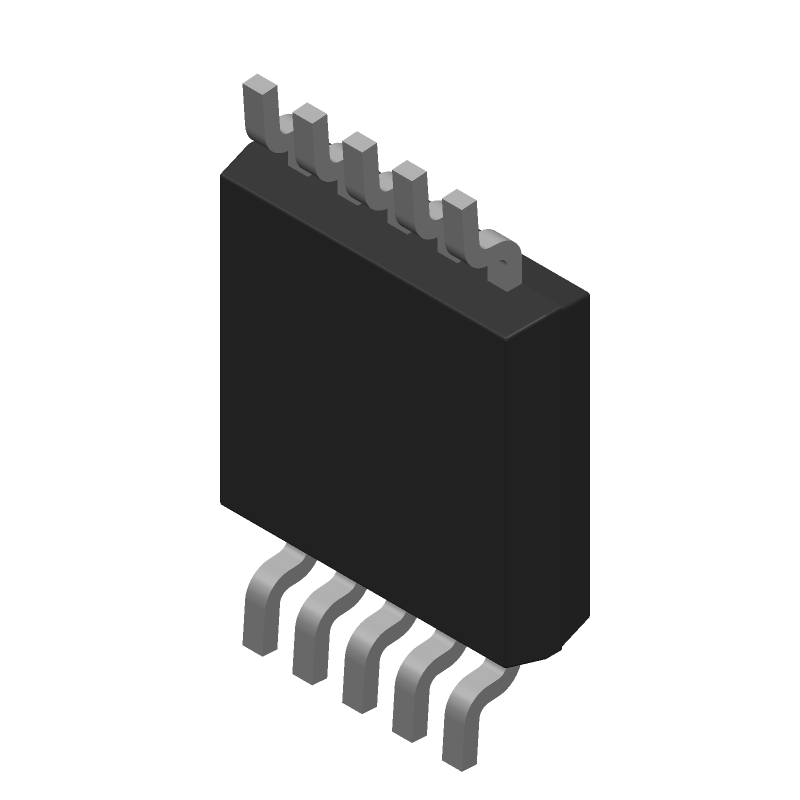

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX4684EUB+ by Analog Devices Inc
Results Overview of MAX4684EUB+ by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Entertainment and Gaming
Communication and Networking
Automotive
MAX4684EUB+ Information
MAX4684EUB+ by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for MAX4684EUB+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX4684EUB
|
Mouser Electronics | Analog Switch ICs 0.5Ohm/0.8Ohm Low-Voltage, Dual SPDT Ana RoHS: Compliant | 2661 |
|
$3.2800 / $6.0600 | Buy Now |
|
|
Analog Devices Inc | 0.5Ohm/0.8Ohm Low-Voltage, Dua Package Multiple: 1 | 881 |
|
$3.4157 / $6.0500 | Buy Now |
|
DISTI #
MAX4684EUB+
|
TME | IC: analog switch, SPDT, Ch: 2, uMAX10, 1.8÷5.5VDC Min Qty: 1 | 0 |
|
$2.9300 / $4.3000 | RFQ |
Part Details for MAX4684EUB+
MAX4684EUB+ CAD Models
MAX4684EUB+ Part Data Attributes
|
|
MAX4684EUB+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX4684EUB+
Analog Devices Inc
0.5Ω/0.8Ω Low-Voltage, Dual SPDT Analog Switches in UCSP, 10-MINI_SO-N/A, 10 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 10-MINI_SO-N/A | |
| Package Description | MICRO, SOP-10 | |
| Pin Count | 10 | |
| Manufacturer Package Code | 10-MINI_SO-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2001-01-03 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SPDT | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e3 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 10 | |
| Off-state Isolation-Nom | 64 dB | |
| On-state Resistance Match-Nom | 0.06 Ω | |
| On-state Resistance-Max (Ron) | 0.8 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output | SEPARATE OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSON | |
| Package Equivalence Code | TSSOP10,.19,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.8 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 30 ns | |
| Switch-on Time-Max | 50 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
Alternate Parts for MAX4684EUB+
This table gives cross-reference parts and alternative options found for MAX4684EUB+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX4684EUB+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX4684EUB+T | Maxim Integrated Products | $3.8509 | SPDT, 1 Func, 2 Channel, BICMOS, PDSO10, ROHS COMPLIANT, UMAX-10 | MAX4684EUB+ vs MAX4684EUB+T |
MAX4684EUB+ Frequently Asked Questions (FAQ)
-
A good PCB layout for the MAX4684EUB+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a shielded enclosure and to keep the device away from high-frequency sources.
-
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by VEE. Also, ensure that the input voltage is within the recommended range and that the device is properly bypassed. Finally, check that the EN pin is properly driven to enable the device.
-
The MAX4684EUB+ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
-
To troubleshoot issues with the MAX4684EUB+, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly powered and initialized, and check for any signs of overheating. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
-
The MAX4684EUB+ is a high-reliability device, but it's essential to follow proper design and manufacturing practices to ensure the device operates safely and reliably in a safety-critical application. Consult the datasheet and relevant industry standards, such as IEC 61508 or ISO 26262, for guidance on designing and verifying safety-critical systems.
