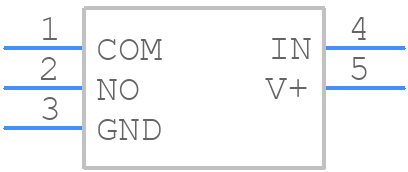

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX4514EUK+T by Analog Devices Inc
Results Overview of MAX4514EUK+T by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Communication and Networking
Automotive
MAX4514EUK+T Information
MAX4514EUK+T by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for MAX4514EUK+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX4514EUKT
|
Mouser Electronics | Analog Switch ICs Low-Voltage, Low-On-Resistance, SPST, CM RoHS: Compliant | 5038 |
|
$1.4300 / $2.8200 | Buy Now |
|
|
Analog Devices Inc | Low-Voltage, Low-On-Resistance Min Qty: 1 Package Multiple: 1 | 3066 |
|
$1.4549 / $2.8200 | Buy Now |
Part Details for MAX4514EUK+T
MAX4514EUK+T CAD Models
MAX4514EUK+T Part Data Attributes
|
|
MAX4514EUK+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX4514EUK+T
Analog Devices Inc
Low-Voltage, Low-On-Resistance, SPST, CMOS Analog Switches, 5-SOT_23-N/A, 5 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 5-SOT_23-N/A | |
| Package Description | SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Manufacturer Package Code | 5-SOT_23-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1996-06-01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | SPST | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Normal Position | NO | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| On-state Resistance-Max (Ron) | 10 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Supply Current-Max (Isup) | 0.02 mA | |
| Supply Voltage-Max (Vsup) | 12 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 100 ns | |
| Switch-on Time-Max | 150 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.625 mm |
Alternate Parts for MAX4514EUK+T
This table gives cross-reference parts and alternative options found for MAX4514EUK+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX4514EUK+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX4514EUK+ | Analog Devices Inc | Check for Price | Low-Voltage, Low-On-Resistance, SPST, CMOS Analog Switches, 5-SOT_23-N/A, 5 Pins, -40 to 85C | MAX4514EUK+T vs MAX4514EUK+ |
| MAX4514EUK+ | Maxim Integrated Products | Check for Price | SPST, 1 Func, 1 Channel, CMOS, PDSO5, SOT-23, 5 PIN | MAX4514EUK+T vs MAX4514EUK+ |
| MAX4514EUK+G55 | Maxim Integrated Products | Check for Price | SPST, 1 Func, 1 Channel, CMOS, PDSO5, SOT-23, 5 PIN | MAX4514EUK+T vs MAX4514EUK+G55 |
| MAX4514CUK | Maxim Integrated Products | Check for Price | SPST, 1 Func, 1 Channel, CMOS, PDSO5, SOT-23, 5 PIN | MAX4514EUK+T vs MAX4514CUK |
| ISL84514IH-T | Intersil Corporation | Check for Price | 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO5, PLASTIC, SOT-23, 5 PIN | MAX4514EUK+T vs ISL84514IH-T |
| ISL84514IH-T | Rochester Electronics LLC | Check for Price | 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO5, PLASTIC, SOT-23, 5 PIN | MAX4514EUK+T vs ISL84514IH-T |
| ISL84514IHZ-T | Intersil Corporation | Check for Price | Low-Voltage, Single Supply, SPST, Analog Switches; SOT5; Temp Range: -40° to 85°C | MAX4514EUK+T vs ISL84514IHZ-T |
| MAX4514CUK-T | Maxim Integrated Products | Check for Price | SPST, 1 Func, 1 Channel, CMOS, PDSO5, SOT-23, 5 PIN | MAX4514EUK+T vs MAX4514CUK-T |
| ISL84514IHZ-T | Renesas Electronics Corporation | Check for Price | Low-Voltage, Single Supply, SPST, Analog Switches, SOT23, /Reel | MAX4514EUK+T vs ISL84514IHZ-T |
MAX4514EUK+T Frequently Asked Questions (FAQ)
-
A good PCB layout for the MAX4514EUK+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VCC bypass and to keep the input traces as short as possible.
-
To ensure the accuracy of the MAX4514EUK+T's output voltage, it's essential to follow proper PCB layout guidelines, use a low-ESR capacitor for the VCC bypass, and keep the device at a stable temperature. Additionally, the output voltage can be trimmed using an external resistor network to achieve higher accuracy.
-
The MAX4514EUK+T can source up to 10mA and sink up to 2mA of current. However, it's recommended to limit the output current to 5mA or less to ensure the device operates within its specified temperature range.
-
The MAX4514EUK+T is specified to operate from -40°C to +125°C, but its accuracy and stability may degrade at higher temperatures. It's recommended to derate the device's performance and consider using a more temperature-stable voltage reference if operating in high-temperature environments.
-
To protect the MAX4514EUK+T from overvoltage and ESD damage, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode on the input pins. Additionally, following proper ESD handling procedures and using ESD-protective packaging can help prevent damage during handling and storage.
