MAX398ESE+ by:

Precision, 8-Channel/Dual 4-Channel, Low-Voltage, CMOS Analog Multiplexers, 16-SOIC_N-150_MIL, 16 Pins, -40 to 85C

Part Details for MAX398ESE+ by Analog Devices Inc

Results Overview of MAX398ESE+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Environmental Monitoring Internet of Things (IoT) Industrial Automation Computing and Data Storage Aerospace and Defense Healthcare Agriculture Technology Medical Imaging Telecommunications Communication and Networking Automotive

MAX398ESE+ Information

MAX398ESE+ by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Price & Stock for MAX398ESE+

Part # Distributor Description Stock Price Buy
DISTI # 2513755
Farnell ANALOGUE MUX, SINGLE, 8: 1, NSOIC-16 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each 122
  • 1 $15.3286
  • 10 $10.6530
  • 50 $8.6738
  • 100 $8.0495
  • 250 $7.9167
  • 500 $7.7573
$7.7573 / $15.3286 Buy Now
DISTI # 700-MAX398ESE
Mouser Electronics Multiplexer Switch ICs Precision, 8-Channel/Dual 4-Channel, Low RoHS: Compliant 8
  • 1 $13.0100
  • 10 $10.0700
  • 50 $8.5300
  • 100 $7.6400
  • 1,000 $7.3600
$7.3600 / $13.0100 Buy Now
DISTI # V36:1790_26376186
Arrow Electronics Analog Multiplexer Single 8:1 16-Pin SOIC N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2326 Americas - 180
  • 100 $6.8720
$6.8720 Buy Now
Analog Devices Inc Precision, 8-Channel/Dual 4-Ch Package Multiple: 1 87
  • 1 $13.0100
  • 10 $10.2360
  • 100 $8.7828
  • 250 $8.4201
  • 500 $8.2015
  • 1,000 $8.0216
$8.0216 / $13.0100 Buy Now

Part Details for MAX398ESE+

MAX398ESE+ CAD Models

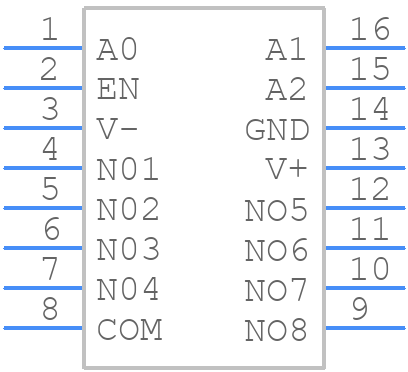

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX398ESE+ Part Data Attributes

Parametric Data
MAX398ESE+ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX398ESE+ Analog Devices Inc Precision, 8-Channel/Dual 4-Channel, Low-Voltage, CMOS Analog Multiplexers, 16-SOIC_N-150_MIL, 16 Pins, -40 to 85C
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 16-SOIC_N-150_MIL
Package Description SO-16
Pin Count 16
Manufacturer Package Code 16-SOIC_N-150_MIL
Reach Compliance Code compliant
Date Of Intro 2000-12-20
Samacsys Manufacturer Analog Devices
Analog IC - Other Type SINGLE-ENDED MULTIPLEXER
JESD-30 Code R-PDSO-G16
JESD-609 Code e3
Length 9.9 mm
Moisture Sensitivity Level 1
Neg Supply Voltage-Max (Vsup) -8 V
Neg Supply Voltage-Min (Vsup) -3 V
Neg Supply Voltage-Nom (Vsup) -5 V
Number of Channels 8
Number of Functions 1
Number of Terminals 16
Off-state Isolation-Nom 75 dB
On-state Resistance Match-Nom 6 Ω
On-state Resistance-Max (Ron) 100 Ω
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Signal Current-Max 0.03 A
Supply Voltage-Max (Vsup) 8 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Switch-off Time-Max 150 ns
Switch-on Time-Max 150 ns
Switching BREAK-BEFORE-MAKE
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm

Alternate Parts for MAX398ESE+

This table gives cross-reference parts and alternative options found for MAX398ESE+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX398ESE+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX398ESE+ Maxim Integrated Products $7.4329 Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, SO-16 MAX398ESE+ vs MAX398ESE+
MAX398CSE Rochester Electronics LLC Check for Price 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, 0.150 INCH, MS-012AC, SOIC-16 MAX398ESE+ vs MAX398CSE
MAX398CSE Maxim Integrated Products Check for Price Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, 0.150 INCH, MS-012AC, SOIC-16 MAX398ESE+ vs MAX398CSE
MAX398CSE-T Maxim Integrated Products Check for Price Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, 0.150 INCH, MS-012AC, SOIC-16 MAX398ESE+ vs MAX398CSE-T
MAX398ESE Maxim Integrated Products Check for Price Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, 0.150 INCH, MS-012AC, SOIC-16 MAX398ESE+ vs MAX398ESE
MAX398CSE+T Maxim Integrated Products Check for Price Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, SO-16 MAX398ESE+ vs MAX398CSE+T
MAX398CSE+TG55 Maxim Integrated Products Check for Price Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, SO-16 MAX398ESE+ vs MAX398CSE+TG55
MAX398ESE+T Analog Devices Inc Check for Price Precision, 8-Channel/Dual 4-Channel, Low-Voltage, CMOS Analog Multiplexers, 16-SOIC_N-150_MIL, 16 Pins, -40 to 85C MAX398ESE+ vs MAX398ESE+T
MAX398ESE-T Maxim Integrated Products Check for Price Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16, 0.150 INCH, MS-012AC, SOIC-16 MAX398ESE+ vs MAX398ESE-T
Part Number Manufacturer Composite Price Description Compare
DG412EUE Maxim Integrated Products Check for Price SPST, 4 Func, 1 Channel, CMOS, PDSO16, 4.40 MM, 0.65 MM PITCH, TSSOP-16 MAX398ESE+ vs DG412EUE
MAX4552CPE+ Maxim Integrated Products Check for Price SPST, 4 Func, 1 Channel, CMOS, PDIP16, 0.300 INCH, PLASTIC, MS-058AB, MS-001AA, DIP-16 MAX398ESE+ vs MAX4552CPE+
ADG211AKR-REEL Rochester Electronics LLC Check for Price SPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, SOIC-16 MAX398ESE+ vs ADG211AKR-REEL
DG445CY+T Maxim Integrated Products Check for Price SPST, 4 Func, 1 Channel, CMOS, PDSO16, SO-16 MAX398ESE+ vs DG445CY+T
DG442DY Intersil Corporation Check for Price QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16 MAX398ESE+ vs DG442DY
DG413FDY-T Maxim Integrated Products Check for Price SPST, 4 Func, 1 Channel, CMOS, PDSO16, SOIC-16 MAX398ESE+ vs DG413FDY-T
ADG511BRZ-REEL7 Analog Devices Inc Check for Price ±5V, 30 Ohm, Quad SPST (4NC) Switch MAX398ESE+ vs ADG511BRZ-REEL7
DG445CY+ Maxim Integrated Products Check for Price SPST, 4 Func, 1 Channel, CMOS, PDSO16, SO-16 MAX398ESE+ vs DG445CY+
LF11201D/883 National Semiconductor Corporation Check for Price IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CDIP16, SIDE BRAZED, CERAMIC, DIP-16, Multiplexer or Switch MAX398ESE+ vs LF11201D/883
ADG201AKR-REEL7 Analog Devices Inc Check for Price 60 Ohm, Quad SPST Switch MAX398ESE+ vs ADG201AKR-REEL7
