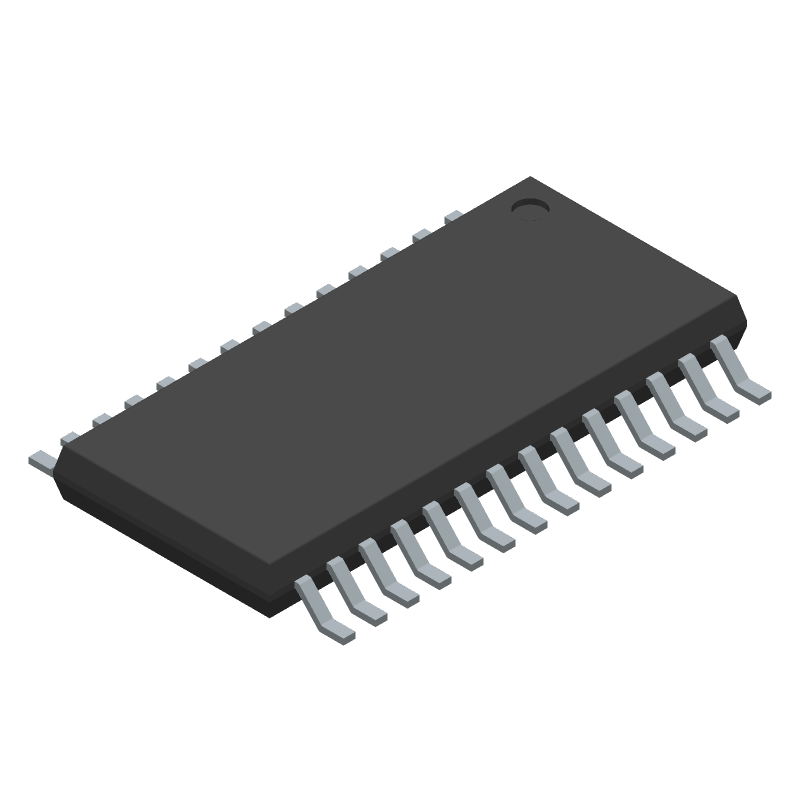

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX3244EEUI+ by Analog Devices Inc
Results Overview of MAX3244EEUI+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MAX3244EEUI+ Information
MAX3244EEUI+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX3244EEUI+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX3244EEUI
|
Mouser Electronics | RS-232 Interface IC 15kV ESD-Protected, 1 A, 1Mbps, 3.0V to 5.5V, RS-232 Transceivers with AutoShutdown Plus RoHS: Compliant | 200 |
|
$13.9900 / $22.4400 | Buy Now |
|
|
Analog Devices Inc | ±15kV ESD-Protected, 1µA, 1Mbp Package Multiple: 1 | 8292 |
|
$10.6800 / $22.5500 | Buy Now |
Part Details for MAX3244EEUI+
MAX3244EEUI+ CAD Models
MAX3244EEUI+ Part Data Attributes
|
|
MAX3244EEUI+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX3244EEUI+
Analog Devices Inc
±15kV ESD-Protected, 1µA, 1Mbps, 3.0V to 5.5V, RS-232 Transceivers with AutoShutdown Plus, 28-TSSOP_4.4-4.4_MM, 28 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 28-TSSOP_4.4-4.4_MM | |
| Package Description | TSSOP-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | 28-TSSOP_4.4-4.4_MM | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1998-01-03 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | NO | |
| Driver Number of Bits | 3 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232; TIA-232; V.24; V.28 | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 9.7 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 3 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.0016 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP28,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receiver Number of Bits | 5 | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 1 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for MAX3244EEUI+
This table gives cross-reference parts and alternative options found for MAX3244EEUI+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX3244EEUI+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX3243ECPWR | Texas Instruments | $0.8694 | 3- to 5.5-V multichannel 500kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection 28-TSSOP 0 to 70 | MAX3244EEUI+ vs MAX3243ECPWR |
| SN65C3243PWR | Texas Instruments | $1.4024 | 3- to 5.5-V multichannel 1Mbps RS-232 line driver/receiver with +/-15-kV ESD protection 28-TSSOP -40 to 85 | MAX3244EEUI+ vs SN65C3243PWR |
| MAX3243CPWRE4 | Texas Instruments | Check for Price | 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver With +/-15kV ESD (HBM) Protection 28-TSSOP 0 to 70 | MAX3244EEUI+ vs MAX3243CPWRE4 |
| ST3243CTR | STMicroelectronics | Check for Price | TRIPLE LINE TRANSCEIVER, PDSO28, LEAD FREE, TSSOP-28 | MAX3244EEUI+ vs ST3243CTR |
| MAX3244ECUI | Maxim Integrated Products | Check for Price | Line Transceiver, 3 Func, 3 Driver, 5 Rcvr, BICMOS, PDSO28, 4.40 MM, MO-153AE, TSSOP-28 | MAX3244EEUI+ vs MAX3244ECUI |
| MAX3244EEUI | Maxim Integrated Products | Check for Price | Line Transceiver, 3 Func, 3 Driver, 5 Rcvr, BICMOS, PDSO28, 4.40 MM, MO-153AE, TSSOP-28 | MAX3244EEUI+ vs MAX3244EEUI |
| MAX3245ECUI+ | Maxim Integrated Products | Check for Price | Line Driver/Receiver, 3 Driver, BICMOS, PDSO28, | MAX3244EEUI+ vs MAX3245ECUI+ |
MAX3244EEUI+ Frequently Asked Questions (FAQ)
-
The MAX3244EEUI+ can support data rates up to 1 Mbps, making it suitable for high-speed serial communication applications.
-
The MAX3244EEUI+ has built-in electromagnetic interference (EMI) and radio-frequency interference (RFI) filters, which help to reduce noise and improve signal integrity.
-
Yes, the MAX3244EEUI+ is designed to operate in industrial temperature ranges (-40°C to +85°C) and can withstand high levels of humidity and vibration, making it suitable for use in harsh environments.
-
The MAX3244EEUI+ has a low power consumption of 5mA (typical) when operating at 3.3V, making it suitable for battery-powered or low-power applications.
-
Yes, the MAX3244EEUI+ is 5V tolerant, meaning it can accept 5V logic inputs and operate correctly, even though its recommended operating voltage is 3.3V.
