MAX3232MDBREP by: Texas Instruments

Enhanced Product 3- to 5.5-V 250kbps RS-232 line driver/receiver with +/-15-kV ESD protection 16-SSOP -55 to 125

Part Details for MAX3232MDBREP by Texas Instruments

Results Overview of MAX3232MDBREP by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MAX3232MDBREP Information

MAX3232MDBREP by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for MAX3232MDBREP

Part # Distributor Description Stock Price Buy
DISTI # 296-19873-1-ND
DigiKey IC TRANSCEIVER FULL 2/2 16SSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 4227
In Stock
  • 1 $7.1400
  • 10 $5.5090
  • 25 $5.1012
  • 100 $4.6522
  • 250 $4.4383
  • 500 $4.3093
  • 1,000 $4.2032
  • 2,000 $4.1158
$4.1158 / $7.1400 Buy Now
DISTI # 595-MAX3232MDBREP
Mouser Electronics RS-232 Interface IC Enhanced Product 3- to 5.5-V 250kbps RS- RoHS: Compliant 1355
  • 1 $7.1400
  • 10 $5.5100
  • 25 $5.1100
  • 100 $4.6600
  • 250 $4.4400
  • 500 $4.3100
  • 1,000 $4.2900
  • 2,000 $3.9800
$3.9800 / $7.1400 Buy Now
DISTI # V72:2272_07298576
Arrow Electronics Dual Transmitter/Receiver RS-232 16-Pin SSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2121 Container: Cut Strips Americas - 907
  • 1 $4.1070
  • 10 $3.8030
  • 25 $3.6990
  • 100 $3.6610
  • 250 $3.6230
  • 500 $3.5850
$3.5850 / $4.1070 Buy Now
DISTI # 61202074
Verical Dual Transmitter/Receiver RS-232 16-Pin SSOP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2121 Americas - 907
  • 2 $4.1070
  • 10 $3.8030
  • 25 $3.6990
  • 100 $3.6610
  • 250 $3.6230
  • 500 $3.5850
$3.5850 / $4.1070 Buy Now
Rochester Electronics MAX3232-EP Enhanced Product 3-V To 5.5-V Multichannel Rs-232 Line Driver/Receiver W/Plus/-15-Kv Esd RoHS: Compliant Status: Active Min Qty: 1 3
  • 25 $3.6700
  • 100 $3.4900
  • 500 $3.3000
  • 1,000 $3.1200
  • 10,000 $2.9400
$2.9400 / $3.6700 Buy Now
DISTI # SMC-MAX3232MDBREP
Sensible Micro Corporation OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 80
RFQ
DISTI # MAX3232MDBREP
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 285
  • 1 $3.9400
  • 10 $3.6500
  • 50 $3.5500
  • 100 $3.5100
  • 200 $3.4400
  • 500 $3.0400
  • 2,000 $2.8600
  • 4,000 $2.8500
$2.8500 / $3.9400 Buy Now

Part Details for MAX3232MDBREP

MAX3232MDBREP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX3232MDBREP Part Data Attributes

Parametric Data
MAX3232MDBREP Texas Instruments
Buy Now Datasheet
Compare Parts:

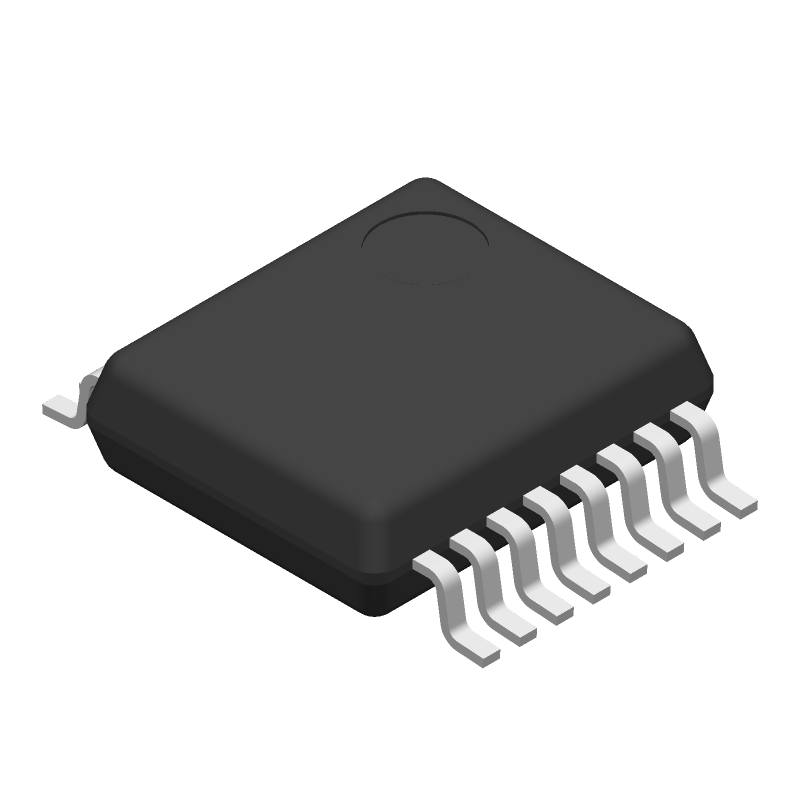

MAX3232MDBREP Texas Instruments Enhanced Product 3- to 5.5-V 250kbps RS-232 line driver/receiver with +/-15-kV ESD protection 16-SSOP -55 to 125
