Drivers And Interfaces / Line Driver or Receivers / MAX3232EEAE+
Datasheets
MAX3232EEAE+ by:

±15kV ESD-Protected, Down to 10nA, 3.0V to 5.5V, Up to 1Mbps, True RS-232 Transceivers, 16-SSOP-5.3_MM, 16 Pins, -40 to 85C

Part Details for MAX3232EEAE+ by Analog Devices Inc

Results Overview of MAX3232EEAE+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MAX3232EEAE+ Information

MAX3232EEAE+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for MAX3232EEAE+

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX3232EEAE
Mouser Electronics RS-232 Interface IC 15kV ESD-Protected, Down to 10nA, 3.0V to 5.5V, Up to 1Mbps, True RS-232 Transceivers RoHS: Compliant 2510
  • 1 $12.2000
  • 10 $9.4700
  • 25 $8.8000
  • 76 $7.3900
  • 228 $7.2700
  • 532 $7.2000
  • 1,064 $7.1600
$7.1600 / $12.2000 Buy Now
DISTI # V36:1790_21383717
Arrow Electronics Dual Transmitter/Receiver RS-232 16-Pin SSOP Tube RoHS: Compliant Min Qty: 76 Package Multiple: 76 Lead time: 10 Weeks Date Code: 2342 Americas - 2
  • 76 $6.5640
$6.5640 Buy Now
Analog Devices Inc ±15kV ESD-Protected, Down to 1 Package Multiple: 1 302
  • 1 $12.2000
  • 10 $9.5810
  • 1,000 $5.4900
$5.4900 / $12.2000 Buy Now
DISTI # 78968400
Verical Dual Transmitter/Receiver RS-232 16-Pin SSOP Tube RoHS: Compliant Min Qty: 2 Package Multiple: 2 Date Code: 2342 Americas - 2
  • 2 $6.5640
$6.5640 Buy Now
DISTI # MAX3232EEAE+
TME IC: interface, transceiver, full duplex,RS232, 250kbps, SSOP16 Min Qty: 1 151
  • 1 $7.5000
  • 3 $6.8100
  • 10 $5.9600
  • 25 $5.1900
$5.1900 / $7.5000 Buy Now

Part Details for MAX3232EEAE+

MAX3232EEAE+ CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

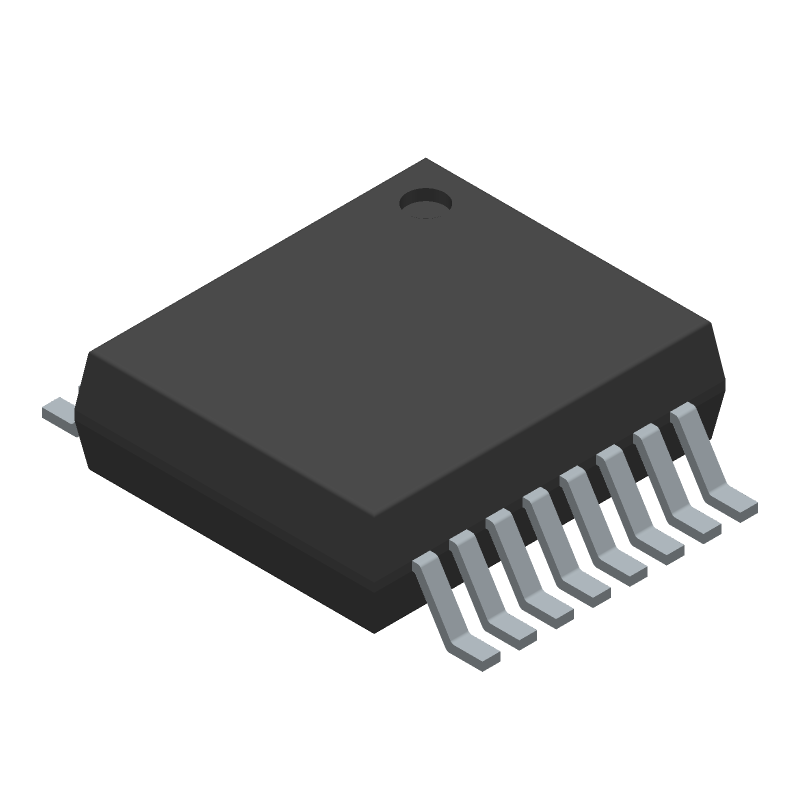

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX3232EEAE+ Part Data Attributes

Parametric Data
MAX3232EEAE+ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX3232EEAE+ Analog Devices Inc ±15kV ESD-Protected, Down to 10nA, 3.0V to 5.5V, Up to 1Mbps, True RS-232 Transceivers, 16-SSOP-5.3_MM, 16 Pins, -40 to 85C
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 16-SSOP-5.3_MM
Pin Count 16
Manufacturer Package Code 16-SSOP-5.3_MM
Reach Compliance Code compliant
Date Of Intro 2002-03-29
Samacsys Manufacturer Analog Devices
Differential Output NO
Driver Number of Bits 2
Input Characteristics SCHMITT TRIGGER
Interface IC Type LINE TRANSCEIVER
Interface Standard EIA-232; TIA-232; V.24; V.28
JESD-30 Code R-PDSO-G16
JESD-609 Code e3
Length 6.2 mm
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 16
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Out Swing-Min 10 V
Output Low Current-Max 0.0016 A
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP16,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Receiver Number of Bits 2
Seated Height-Max 1.99 mm
Supply Current-Max 1 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 5.29 mm

Alternate Parts for MAX3232EEAE+

This table gives cross-reference parts and alternative options found for MAX3232EEAE+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX3232EEAE+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX3232ECAE+ Maxim Integrated Products $3.7371 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO16, ROHS COMPLIANT, SSOP-16 MAX3232EEAE+ vs MAX3232ECAE+
MAX3232ECAE+T Maxim Integrated Products $6.3425 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO16, LEAD FREE, SSOP-16 MAX3232EEAE+ vs MAX3232ECAE+T
MAX3232ECAE+ Analog Devices Inc $6.5511 ±15kV ESD-Protected, Down to 10nA, 3.0V to 5.5V, Up to 1Mbps, True RS-232 Transceivers, 16-SSOP-5.3_MM, 16 Pins, 0 to 70C MAX3232EEAE+ vs MAX3232ECAE+
MAX3232EEAE+T Maxim Integrated Products $6.8484 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO16, LEAD FREE, SSOP-16 MAX3232EEAE+ vs MAX3232EEAE+T
MAX3232EEAE+ Maxim Integrated Products $7.9503 Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO16, ROHS COMPLIANT, SSOP-16 MAX3232EEAE+ vs MAX3232EEAE+
MAX3232ECAE Maxim Integrated Products Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO16, 5.30 MM, MO-150, SSOP-16 MAX3232EEAE+ vs MAX3232ECAE
TRSF3232IDBG4 Texas Instruments Check for Price DUAL LINE TRANSCEIVER, PDSO16, GREEN, PLASTIC, SSOP-16 MAX3232EEAE+ vs TRSF3232IDBG4
TRSF3232IDBRG4 Texas Instruments Check for Price DUAL LINE TRANSCEIVER, PDSO16, GREEN, PLASTIC, SSOP-16 MAX3232EEAE+ vs TRSF3232IDBRG4
MAX3232EEAE-T Maxim Integrated Products Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO16, 5.30 MM, MO-150, SSOP-16 MAX3232EEAE+ vs MAX3232EEAE-T
TRSF3232IDBR Texas Instruments Check for Price DUAL LINE TRANSCEIVER, PDSO16, GREEN, PLASTIC, SSOP-16 MAX3232EEAE+ vs TRSF3232IDBR
Part Number Manufacturer Composite Price Description Compare
MAX3232CSE+T Analog Devices Inc $3.1924 3.0V to 5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers, 16-SOIC_N-150_MIL, 16 Pins, 0 to 70C MAX3232EEAE+ vs MAX3232CSE+T
TRSF3232ECDW Texas Instruments Check for Price 3-V to 5.5-V Two-Channel RS-232 1-Mbit/s Line Driver/Receiver 16-SOIC 0 to 70 MAX3232EEAE+ vs TRSF3232ECDW
SN75C3222EPWG4 Texas Instruments Check for Price 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver With +/-15-kV ESD (HBM) Protection 20-TSSOP 0 to 70 MAX3232EEAE+ vs SN75C3222EPWG4
TRS3222EIPWG4 Texas Instruments Check for Price 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver With +/-15-kV ESD Protection 20-TSSOP -40 to 85 MAX3232EEAE+ vs TRS3222EIPWG4
ICL3223EIA Intersil Corporation Check for Price DUAL LINE TRANSCEIVER, PDSO20, PLASTIC, MO-150AE, SSOP-20 MAX3232EEAE+ vs ICL3223EIA
MAX3232ESE+ Analog Devices Inc Check for Price 3.0V to 5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers, 16-SOIC_N-150_MIL, 16 Pins, -40 to 85C MAX3232EEAE+ vs MAX3232ESE+
MAX3222EEAP Maxim Integrated Products Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20, 5.30 MM, MO-150, SSOP-20 MAX3232EEAE+ vs MAX3222EEAP
MAX3222ECAP Maxim Integrated Products Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO20, 5.30 MM, MO-150, SSOP-20 MAX3232EEAE+ vs MAX3222ECAP
MAX3222EUP+ Analog Devices Inc Check for Price 3.0V to 5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers, 20-TSSOP_4.4-4.4_MM, 20 Pins, -40 to 85C MAX3232EEAE+ vs MAX3222EUP+
TRS3222ECDW Texas Instruments Check for Price 3- to 5.5-V dual channel 500kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection 20-SOIC 0 to 70 MAX3232EEAE+ vs TRS3222ECDW

MAX3232EEAE+ Related Parts

MAX3232EEAE+ Frequently Asked Questions (FAQ)

  • The MAX3232EEAE+ can support data rates up to 250 kbps.

  • Yes, the MAX3232EEAE+ is designed to operate in harsh environments with temperatures ranging from -40°C to +85°C and is suitable for industrial and automotive applications.

  • The MAX3232EEAE+ has built-in ESD protection on the RS-232 inputs, which can withstand up to ±15 kV of electrostatic discharge.

  • The MAX3232EEAE+ has a low power consumption of 5mA (typical) and can operate from a single 3.3V or 5V supply.

  • Yes, the MAX3232EEAE+ is pin-compatible with other RS-232 transceivers, making it a drop-in replacement in many applications.
