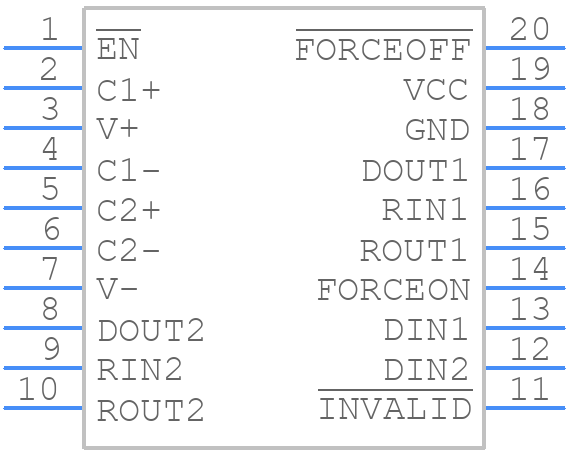

Part Symbol
-
Footprint
-

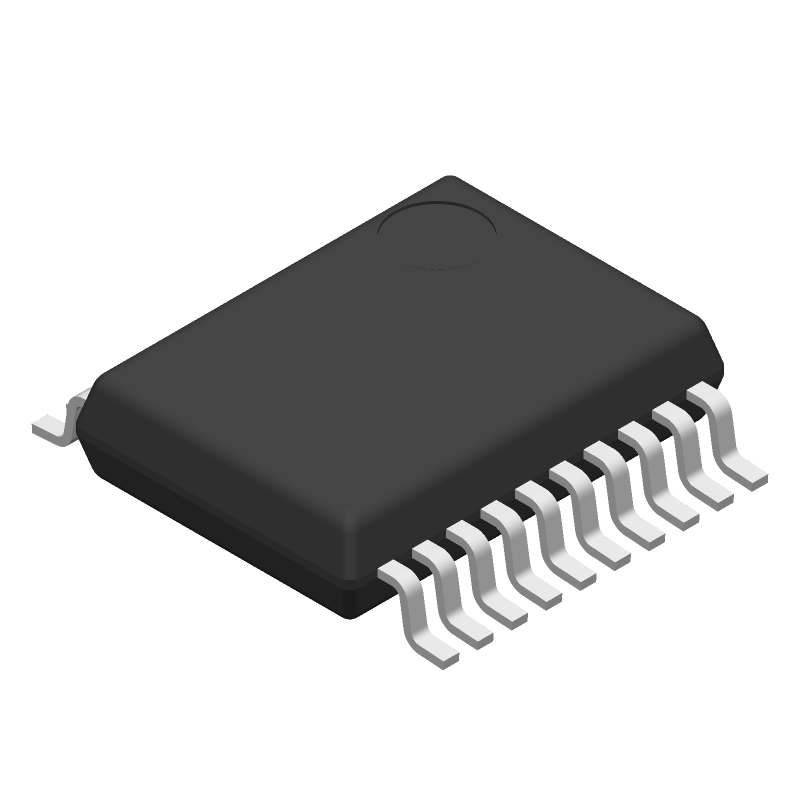

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX3223MDBREP by Texas Instruments
Results Overview of MAX3223MDBREP by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MAX3223MDBREP Information
MAX3223MDBREP by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX3223MDBREP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-22181-1-ND
|
DigiKey | IC TRANSCEIVER FULL 2/2 20SSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
6995 In Stock |
|
$4.5056 / $7.7600 | Buy Now |
|
DISTI #
595-MAX3223MDBREP
|
Mouser Electronics | RS-232 Interface IC 3-V to 5.5-V MultiCh RS-232 Ln Drvr/Recv RoHS: Compliant | 1162 |
|
$4.4300 / $7.7600 | Buy Now |
|
|
LCSC | 250Kbps transceiver SSOP-20-208mil RS232 ICs ROHS | 2 |
|
$10.2209 / $13.2161 | Buy Now |
|
|
Vyrian | Interface ICs | 3966 |
|
RFQ |
Part Details for MAX3223MDBREP
MAX3223MDBREP CAD Models
MAX3223MDBREP Part Data Attributes
|
|
MAX3223MDBREP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
MAX3223MDBREP
Texas Instruments
Enhanced Product 3- to 5.5-V 500kbps RS-232 line driver/receiver with +/-15-kV ESD protection 20-SSOP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | SSOP-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO OPERATES AT 5V SUPPLY | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| High Level Input Current-Max | 0.000001 A | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-F; TIA-232-F; V.28 | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 7.2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Out Swing-Min | 5 V | |
| Output Low Current-Max | 0.000001 A | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 2 mm | |
| Supply Current-Max | 2 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.6 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
Alternate Parts for MAX3223MDBREP
This table gives cross-reference parts and alternative options found for MAX3223MDBREP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX3223MDBREP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX3223CDBR | Texas Instruments | $0.9157 | 3- to 5.5-V dual channel 250kbps RS-232 line driver/receiver with +/-15-kV ESD protection 20-SSOP 0 to 70 | MAX3223MDBREP vs MAX3223CDBR |
| MAX3223CDB | Texas Instruments | $1.4370 | 3- to 5.5-V dual channel 250kbps RS-232 line driver/receiver with +/-15-kV ESD protection 20-SSOP 0 to 70 | MAX3223MDBREP vs MAX3223CDB |
| MAX3222CAP+ | Maxim Integrated Products | $4.1955 | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, LEAD FREE, SSOP-20 | MAX3223MDBREP vs MAX3222CAP+ |
| SN65C3222DBRE4 | Texas Instruments | Check for Price | DUAL LINE TRANSCEIVER, PDSO20, GREEN, PLASTIC, SSOP-20 | MAX3223MDBREP vs SN65C3222DBRE4 |
| MAX3222CAP+ | Analog Devices Inc | Check for Price | 3.0V to 5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers, 20-SSOP-5.3_MM, 20 Pins, 0 to 70C | MAX3223MDBREP vs MAX3222CAP+ |
| SN65C3222DBRG4 | Texas Instruments | Check for Price | DUAL LINE TRANSCEIVER, PDSO20, GREEN, PLASTIC, SSOP-20 | MAX3223MDBREP vs SN65C3222DBRG4 |
| MAX3223CDBG4 | Texas Instruments | Check for Price | 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver 20-SSOP 0 to 70 | MAX3223MDBREP vs MAX3223CDBG4 |
| SN65C3222DB | Texas Instruments | Check for Price | DUAL LINE TRANSCEIVER, PDSO20, GREEN, PLASTIC, SSOP-20 | MAX3223MDBREP vs SN65C3222DB |
MAX3223MDBREP Frequently Asked Questions (FAQ)
-
The MAX3223MDBREP can support data rates up to 1 Mbps.
-
Yes, the MAX3223MDBREP can operate in a multi-point configuration, allowing multiple devices to share the same bus.
-
The MAX3223MDBREP uses a non-destructive bit-wise arbitration mechanism to handle bus contention, ensuring that only one device can transmit at a time.
-
The MAX3223MDBREP can support cable lengths up to 100 meters, depending on the specific application and cable characteristics.
-
No, the MAX3223MDBREP has an internal oscillator and does not require an external crystal oscillator.
