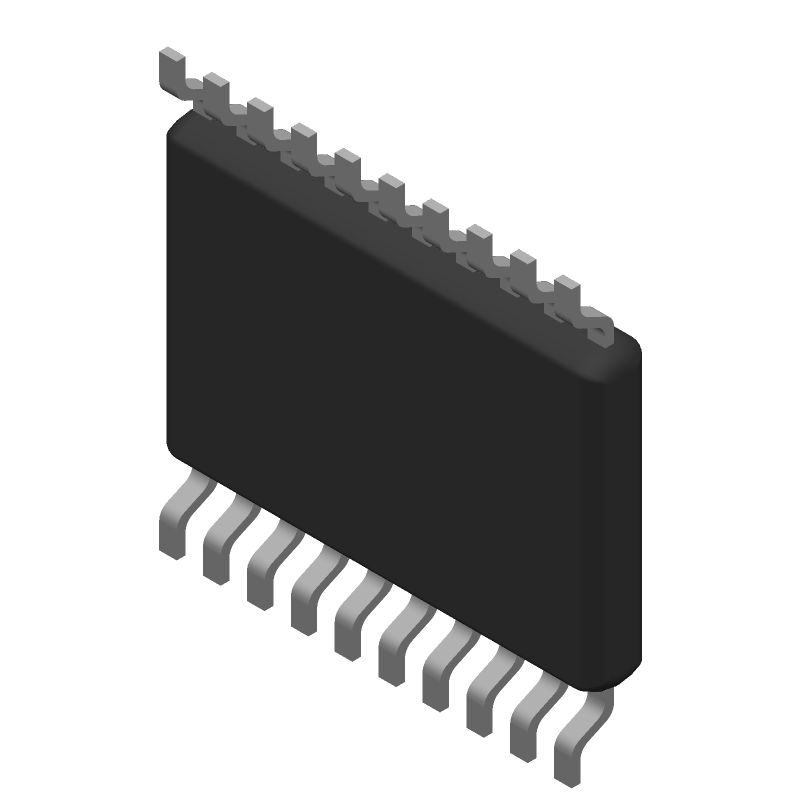

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX3223EEUP+ by Analog Devices Inc
Results Overview of MAX3223EEUP+ by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MAX3223EEUP+ Information
MAX3223EEUP+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX3223EEUP+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73Y3420
|
Newark | Rs232 Transceiver, 250Kbps, Tssop-20, Ic Type:Rs232 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:-, Data Rate Max:250Kbps, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Ic Case/Package:Tssoprohs Compliant: Yes |Analog Devices MAX3223EEUP+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 105 |
|
$7.2500 / $12.1600 | Buy Now |
|
DISTI #
700-MAX3223EEUP
|
Mouser Electronics | RS-232 Interface IC 15kV ESD-Protected, 1 A, 3.0V to 5.5V, 250kbps, RS-232 Transceivers with AutoShutdown RoHS: Compliant | 108 |
|
$7.1500 / $12.1600 | Buy Now |
|
DISTI #
V36:1790_26372372
|
Arrow Electronics | Dual Transmitter/Receiver RS-232 20-Pin TSSOP Tube RoHS: Compliant Min Qty: 74 Package Multiple: 74 Lead time: 10 Weeks Date Code: 2330 | Americas - 57 |
|
$6.9660 / $8.1180 | Buy Now |
|
|
Analog Devices Inc | ±15kV ESD-Protected, 1µA, 3.0V Package Multiple: 1 | 100 |
|
$5.4700 / $12.1600 | Buy Now |
|
DISTI #
87117970
|
Verical | Dual Transmitter/Receiver RS-232 20-Pin TSSOP Tube RoHS: Compliant Min Qty: 57 Package Multiple: 57 Date Code: 2330 | Americas - 57 |
|
$6.9660 / $8.1180 | Buy Now |
Part Details for MAX3223EEUP+
MAX3223EEUP+ CAD Models
MAX3223EEUP+ Part Data Attributes
|
|
MAX3223EEUP+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX3223EEUP+
Analog Devices Inc
±15kV ESD-Protected, 1µA, 3.0V to 5.5V, 250kbps, RS-232 Transceivers with AutoShutdown, 20-TSSOP_4.4-4.4_MM, 20 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 20-TSSOP_4.4-4.4_MM | |
| Package Description | ROHS COMPLIANT, TSSOP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | 20-TSSOP_4.4-4.4_MM | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1998-01-03 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232; TIA-232; V.24; V.28 | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.0016 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP20,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 1 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for MAX3223EEUP+
This table gives cross-reference parts and alternative options found for MAX3223EEUP+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX3223EEUP+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SP3223ECY-L/TR | MaxLinear Inc | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-153, TSSOP-20 | MAX3223EEUP+ vs SP3223ECY-L/TR |
| SP3223EEY/TR | Sipex Corporation | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, MO-153AC, TSSOP-20 | MAX3223EEUP+ vs SP3223EEY/TR |
| MAX3223EEUP/V+T | Maxim Integrated Products | Check for Price | Line Transceiver, | MAX3223EEUP+ vs MAX3223EEUP/V+T |
| SP3223UEY-L | Sipex Corporation | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, PLASTIC, TSSOP-20 | MAX3223EEUP+ vs SP3223UEY-L |
| MAX3223IPWE4 | Texas Instruments | Check for Price | 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver 20-TSSOP -40 to 85 | MAX3223EEUP+ vs MAX3223IPWE4 |
| MAX3223CPWRG4 | Texas Instruments | Check for Price | 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver 20-TSSOP 0 to 70 | MAX3223EEUP+ vs MAX3223CPWRG4 |
| SP3223ECY-L | MaxLinear Inc | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-153, TSSOP-20 | MAX3223EEUP+ vs SP3223ECY-L |
| TRS3223EIPWG4 | Texas Instruments | Check for Price | DUAL LINE TRANSCEIVER, PDSO20, GREEN, PLASTIC, TSSOP-20 | MAX3223EEUP+ vs TRS3223EIPWG4 |
| SP3223EEY-L | MaxLinear Inc | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO20, LEAD FREE, MO-153, TSSOP-20 | MAX3223EEUP+ vs SP3223EEY-L |
| SP3223EUEY-L/TR | Exar Corporation | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO20, LEAD FREE, MO-153AC, TSSOP-20 | MAX3223EEUP+ vs SP3223EUEY-L/TR |
MAX3223EEUP+ Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the MAX3223EEUP+ involves keeping the device close to the UART interface, using short traces, and avoiding vias under the device. Additionally, it's recommended to use a solid ground plane under the device and to keep the power supply decoupling capacitors close to the device.
-
To ensure reliable operation of the MAX3223EEUP+ in noisy environments, it's recommended to use a shielded cable, twisted pair wiring, and to add common-mode chokes or ferrite beads to the RS-232 lines. Additionally, using a low-pass filter on the receiver input can help to reject high-frequency noise.
-
The maximum cable length supported by the MAX3223EEUP+ depends on the baud rate and the cable characteristics. As a general rule, the maximum cable length is around 50 feet at 9600bps, 20 feet at 19200bps, and 10 feet at 38400bps. However, it's recommended to consult the datasheet and perform testing to determine the maximum cable length for a specific application.
-
The shutdown mode of the MAX3223EEUP+ can be controlled by applying a logic low to the SHDN pin. When in shutdown mode, the device consumes very low power and the RS-232 outputs are high-impedance. It's recommended to ensure that the SHDN pin is properly driven and that the device is in a stable state before entering shutdown mode.
-
The MAX3223EEUP+ has built-in ESD protection on the RS-232 inputs, but it's still recommended to take precautions to prevent ESD damage. This includes using ESD-safe handling and storage procedures, using ESD-protective packaging, and ensuring that the device is properly grounded during assembly and testing.
