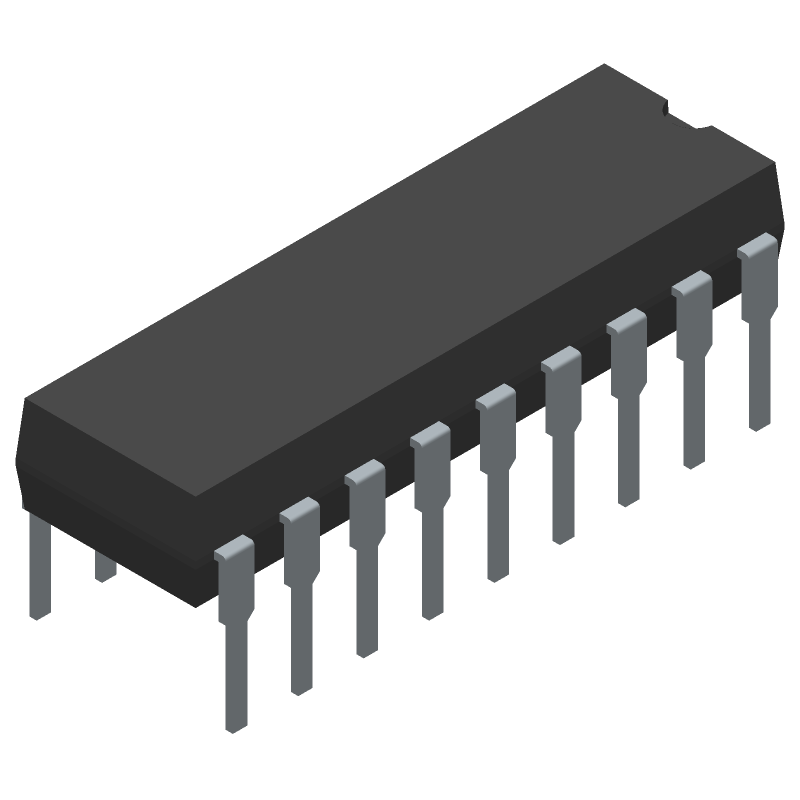

MAX3222CPN+ by:

3.0V to 5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers, 18-PDIP-300_MIL, 18 Pins, 0 to 70C

Part Details for MAX3222CPN+ by Analog Devices Inc

Results Overview of MAX3222CPN+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

MAX3222CPN+ Information

MAX3222CPN+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for MAX3222CPN+

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX3222CPN
Mouser Electronics RS-232 Interface IC 3.0V to 5.5V, Low-Power, up to 1Mbps, Tr RoHS: Compliant 90
  • 1 $9.3600
  • 10 $8.7800
  • 20 $6.3100
  • 100 $5.8100
  • 260 $5.3200
  • 1,000 $5.1200
$5.1200 / $9.3600 Buy Now
DISTI # V99:2348_26375205
Arrow Electronics Dual Transmitter/Receiver RS-232 18-Pin PDIP N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2126 Americas - 3
  • 0 $5.2734
  • 1 $1.4250
  • 10 $1.4120
$1.4120 / $5.2734 Buy Now
Analog Devices Inc 3.0V to 5.5V, Low-Power, up to Package Multiple: 1 23
  • 1 $10.8700
  • 100 $5.5039
  • 1,000 $4.1000
$4.1000 / $10.8700 Buy Now
DISTI # 61183948
Verical Dual Transmitter/Receiver RS-232 18-Pin PDIP N Tube RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2126 Americas - 3
  • 2 $6.1219
$6.1219 Buy Now
DISTI # MAX3222CPN+
TME IC: interface, transceiver, full duplex,RS232, 120kbps, DIP18 Min Qty: 1 0
  • 1 $7.7200
  • 20 $6.7900
  • 40 $6.4300
  • 100 $5.9200
  • 500 $5.5200
$5.5200 / $7.7200 RFQ

Part Details for MAX3222CPN+

MAX3222CPN+ CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX3222CPN+ Part Data Attributes

Parametric Data
MAX3222CPN+ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX3222CPN+ Analog Devices Inc 3.0V to 5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers, 18-PDIP-300_MIL, 18 Pins, 0 to 70C
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 18-PDIP-300_MIL
Package Description DIP-18
Pin Count 18
Manufacturer Package Code 18-PDIP-300_MIL
Reach Compliance Code compliant
Date Of Intro 1996-05-23
Samacsys Manufacturer Analog Devices
Additional Feature 2 RECEIVERS ACTIVE UNDER SHUTDOWN; TRISTATABLE RECEIVERS; EXTERNAL CHARGE PUMP
Differential Output NO
Driver Number of Bits 2
High Level Input Current-Max 0.000001 A
Input Characteristics SCHMITT TRIGGER
Interface IC Type LINE TRANSCEIVER
Interface Standard EIA-232; TIA-232
JESD-30 Code R-PDIP-T18
JESD-609 Code e3
Length 22.86 mm
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 18
Operating Temperature-Max 70 °C
Operating Temperature-Min
Out Swing-Min 10 V
Output Characteristics 3-STATE
Output Low Current-Max 0.0016 A
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP18,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Receiver Number of Bits 2
Seated Height-Max 4.572 mm
Supply Current-Max 1 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 7.62 mm

Alternate Parts for MAX3222CPN+

This table gives cross-reference parts and alternative options found for MAX3222CPN+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX3222CPN+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ADM3222ANZ Analog Devices Inc $3.2735 High-Speed, +3.3V, 2-Channel RS232/V.28 Interface Device with 460kBPS Data Rate and Shutdown and Enable Pins MAX3222CPN+ vs ADM3222ANZ
SP3222EHCP Sipex Corporation Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDIP18, PLASTIC, DIP-18 MAX3222CPN+ vs SP3222EHCP
SP3222EHCP Exar Corporation Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDIP18, PLASTIC, DIP-18 MAX3222CPN+ vs SP3222EHCP
SP3222EUCP-L Sipex Corporation Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP18, LEAD FREE, PLASTIC, DIP-18 MAX3222CPN+ vs SP3222EUCP-L
MAX3222EPN Maxim Integrated Products Check for Price Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDIP18, PLASTIC, DIP-18 MAX3222CPN+ vs MAX3222EPN
SP3222EBCP Sipex Corporation Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDIP18, PLASTIC, MS-001AC, DIP-18 PIN MAX3222CPN+ vs SP3222EBCP
ADM3222AN Rochester Electronics LLC Check for Price DUAL LINE TRANSCEIVER, PDIP18, PLASTIC, MS-001, DIP-18 MAX3222CPN+ vs ADM3222AN
MAX3222EPN+ Maxim Integrated Products Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP18, LEAD FREE, PLASTIC, DIP-18 MAX3222CPN+ vs MAX3222EPN+
MAX3222ECPN+ Maxim Integrated Products Check for Price Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDIP18, ROHS COMPLIANT, PLASTIC, DIP-18 MAX3222CPN+ vs MAX3222ECPN+
