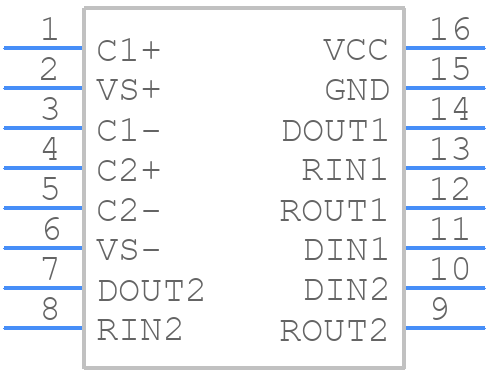

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX232EIPWG4 by Texas Instruments
Results Overview of MAX232EIPWG4 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Automotive
Robotics and Drones
MAX232EIPWG4 Information
MAX232EIPWG4 by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX232EIPWG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | MAX232E Dual RS-232 Driver/Receiver with IEC61000-4-2 Protection RoHS: Compliant Status: Obsolete Min Qty: 1 | 70 |
|
$0.4504 / $0.7265 | Buy Now |
|
|
Vyrian | Interface ICs | 70 |
|
RFQ |
Part Details for MAX232EIPWG4
MAX232EIPWG4 CAD Models
MAX232EIPWG4 Part Data Attributes
|
|
MAX232EIPWG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
MAX232EIPWG4
Texas Instruments
Dual RS-232 Driver/Receiver with IEC61000-4-2 Protection 16-TSSOP -40 to 85
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-F; TIA-232-F; V.28 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.0032 A | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 10 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Supply Voltage1-Max | 5.5 V | |
| Supply Voltage1-Min | 4.5 V | |
| Supply Voltage1-Nom | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for MAX232EIPWG4
This table gives cross-reference parts and alternative options found for MAX232EIPWG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX232EIPWG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX232IDWE4 | Rochester Electronics LLC | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, BICMOS, PDSO16, GREEN, PLASTIC, SOIC-16 | MAX232EIPWG4 vs MAX232IDWE4 |
| MAX232EIPWRG4 | Texas Instruments | Check for Price | DUAL LINE TRANSCEIVER, PDSO16, GREEN, PLASTIC, TSSOP-16 | MAX232EIPWG4 vs MAX232EIPWRG4 |
| LMS202EIM/NOPB | Texas Instruments | Check for Price | 15KV ESD Rated, 5V Single Supply TIA/EIA-232 Dual Transceivers 16-SOIC -40 to 85 | MAX232EIPWG4 vs LMS202EIM/NOPB |
| MAX232IDWE4 | Texas Instruments | Check for Price | DUAL LINE TRANSCEIVER, PDSO16, GREEN, PLASTIC, SOIC-16 | MAX232EIPWG4 vs MAX232IDWE4 |
| LMS202IMW | Texas Instruments | Check for Price | LINE TRANSCEIVER | MAX232EIPWG4 vs LMS202IMW |
| TRS232EIPWRG4 | Texas Instruments | Check for Price | Dual RS-232 Driver/Receiver With IEC61000-4-2 Protection 16-TSSOP -40 to 85 | MAX232EIPWG4 vs TRS232EIPWRG4 |
MAX232EIPWG4 Frequently Asked Questions (FAQ)
-
The MAX232EIPWG4 can support data rates up to 120 kbps.
-
The MAX232EIPWG4 requires a single 5V power supply, and it's recommended to use a decoupling capacitor of 0.1uF to 1uF between VCC and GND to ensure proper operation.
-
The null modem circuit in the MAX232EIPWG4 allows the device to connect two DTE (Data Terminal Equipment) devices directly, without the need for a modem or other intermediate device.
-
The MAX232EIPWG4 can be configured for half-duplex or full-duplex operation by connecting the RTS (Request to Send) and CTS (Clear to Send) signals appropriately. For half-duplex operation, connect RTS to CTS. For full-duplex operation, connect RTS to a separate output and CTS to a separate input.
-
The maximum cable length that can be used with the MAX232EIPWG4 depends on the baud rate and the type of cable used. As a general rule, the maximum cable length is 50 feet (15.24 meters) at 9600 bps, and 10 feet (3.05 meters) at 115.2 kbps.
