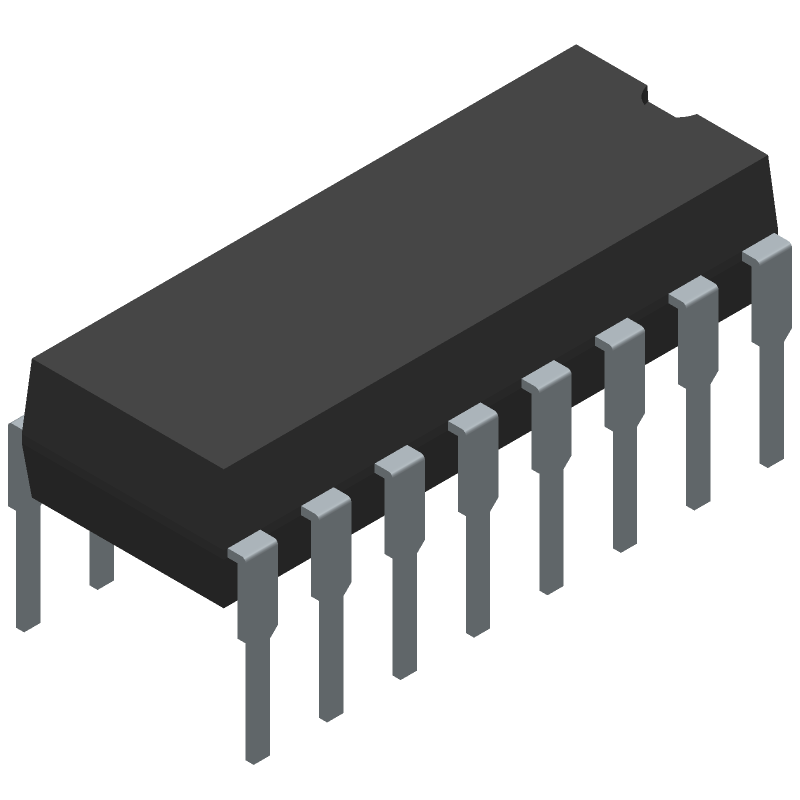

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX232ECPE+ by Analog Devices Inc
Results Overview of MAX232ECPE+ by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Automotive
Robotics and Drones
MAX232ECPE+ Information
MAX232ECPE+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX232ECPE+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX232ECPE
|
Mouser Electronics | RS-232 Interface IC 15kV ESD-Protected, +5V RS-232 Transceivers RoHS: Compliant | 51 |
|
$5.2500 / $9.3600 | Buy Now |
|
|
Analog Devices Inc | ±15kV ESD-Protected, +5V RS-23 Package Multiple: 1 | 206 |
|
$4.1000 / $10.8700 | Buy Now |
|
|
Rochester Electronics | MAX232 - 15kV ESD-Protected, +5V RS-232 Transceivers RoHS: Compliant Status: Active Min Qty: 1 | 11 |
|
$4.3100 / $5.3900 | Buy Now |
|
DISTI #
MAX232ECPE+
|
TME | IC: interface, transceiver, full duplex,RS232, 120kbps, DIP16 Min Qty: 1 | 13 |
|
$7.7700 / $9.7900 | Buy Now |
Part Details for MAX232ECPE+
MAX232ECPE+ CAD Models
MAX232ECPE+ Part Data Attributes
|
|
MAX232ECPE+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX232ECPE+
Analog Devices Inc
±15kV ESD-Protected, +5V RS-232 Transceivers, 16-PDIP-300_MIL, 16 Pins, 0 to 70C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 16-PDIP-300_MIL | |
| Package Description | 0.300 INCH, PLASTIC, MS-001AA, DIP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 16-PDIP-300_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1995-09-27 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | EXTERNAL CHARGE PUMP | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| High Level Input Current-Max | 0.0002 A | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-E; TIA-232-E; V.28 | |
| JESD-30 Code | R-PDIP-T16 | |
| JESD-609 Code | e3 | |
| Length | 19.175 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 10 V | |
| Output Characteristics | TOTEM-POLE | |
| Output Low Current-Max | 0.0032 A | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 10000 ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 4.572 mm | |
| Supply Current-Max | 10 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.62 mm |
Alternate Parts for MAX232ECPE+
This table gives cross-reference parts and alternative options found for MAX232ECPE+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX232ECPE+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX232EEWE+ | Analog Devices Inc | $5.5361 | ±15kV ESD-Protected, +5V RS-232 Transceivers, 16-SOIC_W-300_MIL, 16 Pins, -40 to 85C | MAX232ECPE+ vs MAX232EEWE+ |
| MAX232EEPE+ | Maxim Integrated Products | $6.4159 | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16, 0.300 INCH, PLASTIC, MS-001AA, DIP-16 | MAX232ECPE+ vs MAX232EEPE+ |
| MAX202EEWE | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16, 0.300 INCH, MS-013AA, SOIC-16 | MAX232ECPE+ vs MAX202EEWE |
| MAX232ECPE | Rochester Electronics LLC | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16, 0.300 INCH, PLASTIC, MS-001AA, DIP-16 | MAX232ECPE+ vs MAX232ECPE |
| 5962-8987702RX | Maxim Integrated Products | Check for Price | Line Transceiver, 5 Func, 5 Driver, 5 Rcvr, CMOS, CDIP20, 0.300 INCH, CERDIP-20 | MAX232ECPE+ vs 5962-8987702RX |
| MAX232EC/D | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, DIE-16 | MAX232ECPE+ vs MAX232EC/D |
| MAX232ECPE | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16, 0.300 INCH, PLASTIC, MS-001AA, DIP-16 | MAX232ECPE+ vs MAX232ECPE |
MAX232ECPE+ Frequently Asked Questions (FAQ)
-
The MAX232ECPE+ can support data rates up to 120 kbps, but it's recommended to limit the data rate to 100 kbps for reliable operation.
-
Yes, the MAX232ECPE+ can operate with a supply voltage as low as 3V, but the output voltage swing will be reduced, and the device may not meet all the specifications listed in the datasheet.
-
To ensure proper biasing, connect the VCC pin to a 5V supply, and the GND pin to ground. Also, make sure to decouple the VCC pin with a 0.1uF capacitor to ground to reduce noise and ensure stable operation.
-
The 0.1uF capacitors connected between the T1IN and T2IN pins and ground are used to filter out high-frequency noise and ensure that the device operates reliably in noisy environments.
-
No, the MAX232ECPE+ is designed for point-to-point RS-232 applications only. For multi-point applications, you'll need to use a different device, such as a RS-485 transceiver.
