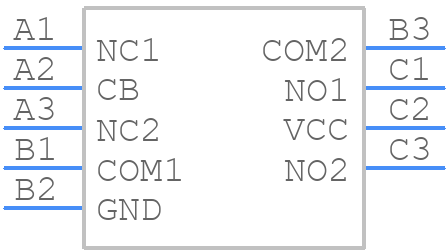

Part Symbol
-
Footprint
-

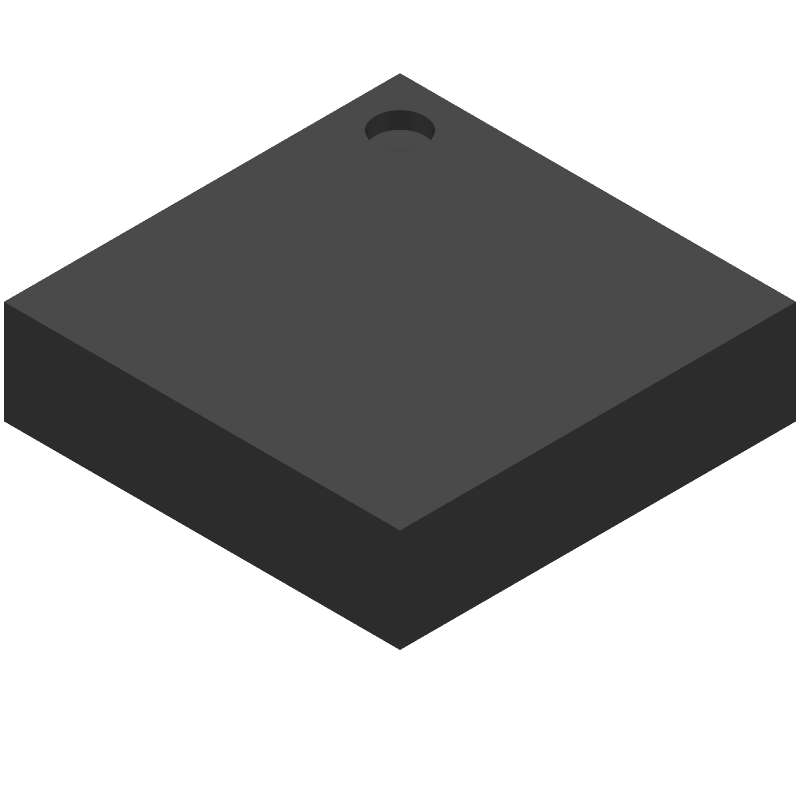

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
12V Capable, Low-RON, Beyond-the-Rails DPDT Analog Switches, 9-WLCSP-N/A, 9 Pins, -40 to 85C
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX20327EWL+T by Analog Devices Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
16AM6697
|
Newark | Analogue Sw, Dpdt, -40 To 85Deg C Rohs Compliant: Yes |Analog Devices MAX20327EWL+T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.7200 / $4.5700 | Buy Now |
DISTI #
700-MAX20327EWL+T
|
Mouser Electronics | Analog Switch ICs Ultra Small Low Ron DPDT Analog Switch RoHS: Compliant | 0 |
|
$1.7400 / $3.3500 | Order Now |
|
Analog Devices Inc | Ultra Small Low Ron DPDT Analo Min Qty: 2500 Package Multiple: 1 | 0 |
|
$1.6375 / $4.7100 | Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
MAX20327EWL+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX20327EWL+T
Analog Devices Inc
12V Capable, Low-RON, Beyond-the-Rails DPDT Analog Switches, 9-WLCSP-N/A, 9 Pins, -40 to 85C
|
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | ANALOG DEVICES INC | |
Part Package Code | 9-WLCSP-N/A | |
Pin Count | 9 | |
Manufacturer Package Code | 9-WLCSP-N/A | |
Reach Compliance Code | compliant | |
Date Of Intro | 2018-09-13 | |
Samacsys Manufacturer | Analog Devices | |
Analog IC - Other Type | DPDT | |
Moisture Sensitivity Level | 1 | |
Peak Reflow Temperature (Cel) | 260 | |
Terminal Finish | Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni) | |
Time@Peak Reflow Temperature-Max (s) | 30 |
