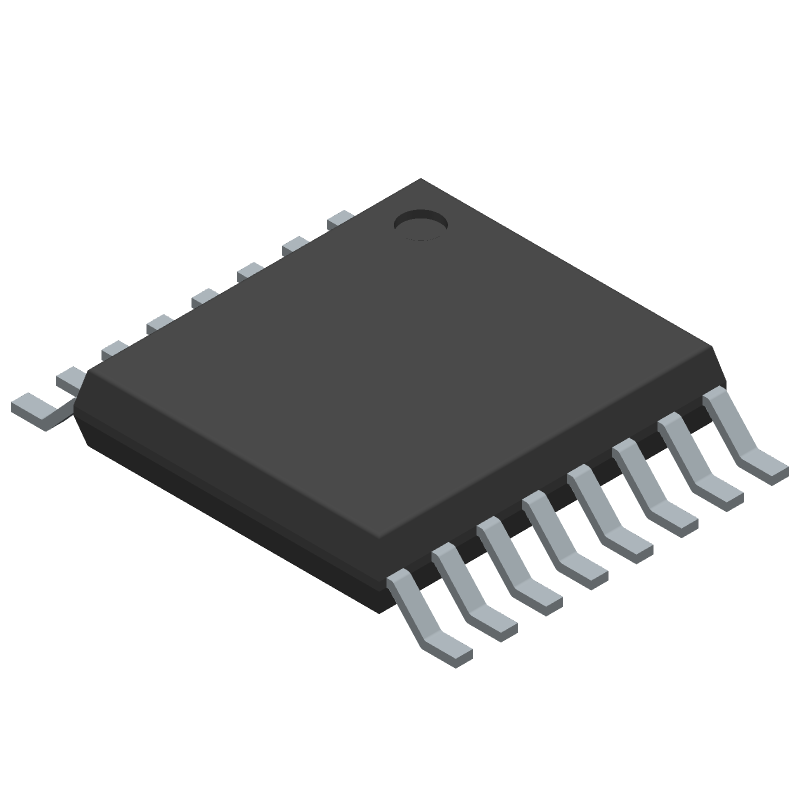

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MAX202EEUE+ by Analog Devices Inc
Results Overview of MAX202EEUE+ by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MAX202EEUE+ Information
MAX202EEUE+ by Analog Devices Inc is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for MAX202EEUE+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX202EEUE
|
Mouser Electronics | RS-232 Interface IC 15kV ESD-Protected, +5V RS-232 Transceivers RoHS: Compliant | 388 |
|
$5.0800 / $9.0900 | Buy Now |
|
|
Analog Devices Inc | ±15kV ESD-Protected, +5V RS-23 Package Multiple: 1 | 4456 |
|
$3.9700 / $10.6100 | Buy Now |
Part Details for MAX202EEUE+
MAX202EEUE+ CAD Models
MAX202EEUE+ Part Data Attributes
|
|
MAX202EEUE+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX202EEUE+
Analog Devices Inc
±15kV ESD-Protected, +5V RS-232 Transceivers, 16-TSSOP_4.4-4.4_MM, 16 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 16-TSSOP_4.4-4.4_MM | |
| Package Description | 4.40 MM, MO-153, TSSOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | 16-TSSOP_4.4-4.4_MM | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1995-09-27 | |
| Samacsys Manufacturer | Analog Devices | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-E; TIA-232-E; V.28 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.0032 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 10000 ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 15 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for MAX202EEUE+
This table gives cross-reference parts and alternative options found for MAX202EEUE+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX202EEUE+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX232ECPE+ | Maxim Integrated Products | $5.2120 | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16, 0.300 INCH, PLASTIC, MS-001AA, DIP-16 | MAX202EEUE+ vs MAX232ECPE+ |
| MAX232ECWE+ | Analog Devices Inc | $5.5031 | ±15kV ESD-Protected, +5V RS-232 Transceivers, 16-SOIC_W-300_MIL, 16 Pins, 0 to 70C | MAX202EEUE+ vs MAX232ECWE+ |
| MAX202EEPE+ | Analog Devices Inc | $7.1510 | ±15kV ESD-Protected, +5V RS-232 Transceivers, 16-PDIP-300_MIL, 16 Pins, -40 to 85C | MAX202EEUE+ vs MAX202EEPE+ |
| MAX202ECUE | Rochester Electronics LLC | Check for Price | DUAL LINE TRANSCEIVER, PDSO16, 4.40 MM, MO-153AB, TSSOP-16 | MAX202EEUE+ vs MAX202ECUE |
| MAX202ECWE | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16, 0.300 INCH, MS-013AA, SOIC-16 | MAX202EEUE+ vs MAX202ECWE |
| MAX232EEWE | Rochester Electronics LLC | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16, 0.300 INCH, MS-013AA, SOIC-16 | MAX202EEUE+ vs MAX232EEWE |
| MAX232ECWE | Rochester Electronics LLC | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDSO16, 0.300 INCH, MS-013AA, SOIC-16 | MAX202EEUE+ vs MAX232ECWE |
MAX202EEUE+ Frequently Asked Questions (FAQ)
-
A good layout and routing practice for the MAX202EEUE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a shielded cable for the RS-232 interface and to keep the cable away from noisy digital signals.
-
To ensure the MAX202EEUE+ operates within the specified temperature range, it's essential to provide adequate heat sinking, especially in high-temperature environments. The device should be mounted on a PCB with a thermal pad connected to a heat sink or a metal plate. Additionally, the device should be operated within the recommended power supply voltage range to minimize heat generation.
-
Not using the recommended bypass capacitors for the MAX202EEUE+ can lead to reduced noise immunity, increased power supply noise, and potential device malfunction. The bypass capacitors help to filter out high-frequency noise and ensure a stable power supply voltage. Omitting them can compromise the device's performance and reliability.
-
Yes, the MAX202EEUE+ can be used in non-RS-232 applications, but it's essential to ensure that the device is operated within its specified electrical characteristics and that the custom interface meets the device's input and output requirements. Additionally, the device's transmit and receive pins may need to be reconfigured to accommodate the custom interface.
-
To troubleshoot common issues with the MAX202EEUE+, start by verifying the power supply voltage, checking for proper device configuration, and ensuring that the transmit and receive pins are properly connected. Use an oscilloscope to monitor the signal waveforms and check for noise or distortion. Additionally, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
