Converters / Analog to Digital Converters / MAX192BEPP+
Datasheets
MAX192BEPP+ by:

Low-Power, 8-Channel, Serial 10-Bit ADC, 20-PDIP-300_MIL, 20 Pins, -40 to 85C

Part Details for MAX192BEPP+ by Analog Devices Inc

Results Overview of MAX192BEPP+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

MAX192BEPP+ Information

MAX192BEPP+ by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for MAX192BEPP+

Part # Distributor Description Stock Price Buy
DISTI # 700-MAX192BEPP
Mouser Electronics Analog to Digital Converters - ADC Low-Power, 8-Channel, Serial 10-Bit ADC RoHS: Compliant 15
  • 1 $37.6600
  • 10 $33.6000
  • 18 $25.8500
  • 108 $25.8400
$25.8400 / $37.6600 Buy Now
DISTI # V36:1790_26372905
Arrow Electronics 8-Channel Single ADC SAR 133ksps 10-bit Serial 20-Pin PDIP N Tube RoHS: Compliant Min Qty: 36 Package Multiple: 18 Lead time: 10 Weeks Date Code: 2310 Americas - 15
  • 36 $28.0200
  • 630 $27.7400
  • 4,500 $22.3500
$22.3500 / $28.0200 Buy Now
Analog Devices Inc Low-Power, 8-Channel, Serial 1 Package Multiple: 1 460
  • 1 $25.2700
  • 1,000 $18.6900
$18.6900 / $25.2700 Buy Now
DISTI # 78400242
Verical 8-Channel Single ADC SAR 133ksps 10-bit Serial 20-Pin PDIP N Tube RoHS: Compliant Min Qty: 15 Package Multiple: 15 Date Code: 2310 Americas - 15
  • 15 $28.0200
  • 630 $27.7400
  • 4,500 $22.3500
$22.3500 / $28.0200 Buy Now

Part Details for MAX192BEPP+

MAX192BEPP+ CAD Models

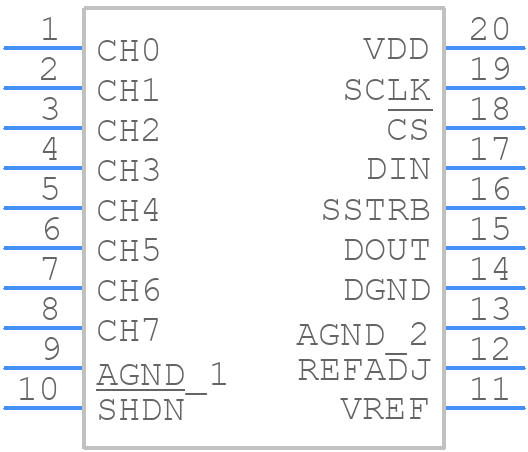

  • Part Symbol

    Part Symbol

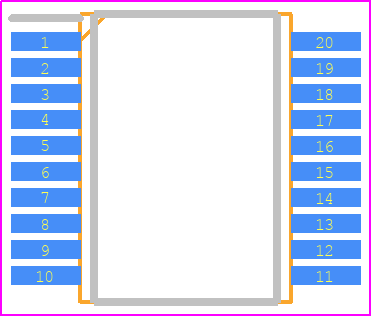

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MAX192BEPP+ Part Data Attributes

Parametric Data
MAX192BEPP+ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
MAX192BEPP+ Analog Devices Inc Low-Power, 8-Channel, Serial 10-Bit ADC, 20-PDIP-300_MIL, 20 Pins, -40 to 85C
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 20-PDIP-300_MIL
Package Description ROHS COMPLIANT, PLASTIC, DIP-20
Pin Count 20
Manufacturer Package Code 20-PDIP-300_MIL
Reach Compliance Code compliant
Date Of Intro 1999-05-25
Samacsys Manufacturer Analog Devices
Analog Input Voltage-Max 2.048 V
Analog Input Voltage-Min -2.048 V
Conversion Time-Max 2 µs
Converter Type ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code R-PDIP-T20
JESD-609 Code e3
Length 26.16 mm
Linearity Error-Max (EL) 0.0977%
Moisture Sensitivity Level 1
Number of Analog In Channels 8
Number of Bits 10
Number of Functions 1
Number of Terminals 20
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Bit Code BINARY, 2'S COMPLEMENT BINARY
Output Format SERIAL
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Sample Rate 0.133 MHz
Sample and Hold / Track and Hold TRACK
Seated Height-Max 4.572 mm
Supply Voltage-Nom 5 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 7.62 mm

Alternate Parts for MAX192BEPP+

This table gives cross-reference parts and alternative options found for MAX192BEPP+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX192BEPP+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MAX192BEPP+ Maxim Integrated Products $20.4821 ADC, Successive Approximation, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDIP20, ROHS COMPLIANT, PLASTIC, DIP-20 MAX192BEPP+ vs MAX192BEPP+
MAX192AEPP+ Maxim Integrated Products Check for Price ADC, Successive Approximation, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDIP20, ROHS COMPLIANT, PLASTIC, DIP-20 MAX192BEPP+ vs MAX192AEPP+
MAX192AEPP Maxim Integrated Products Check for Price ADC, Successive Approximation, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDIP20, PLASTIC, DIP-20 MAX192BEPP+ vs MAX192AEPP
MAX192ACPP+ Maxim Integrated Products Check for Price ADC, Successive Approximation, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDIP20, ROHS COMPLIANT, PLASTIC, DIP-20 MAX192BEPP+ vs MAX192ACPP+
Part Number Manufacturer Composite Price Description Compare
MAX192BEWP+ Analog Devices Inc $12.7776 Low-Power, 8-Channel, Serial 10-Bit ADC, 20-SOIC_W-300_MIL, 20 Pins, -40 to 85C MAX192BEPP+ vs MAX192BEWP+
MAX192BEPP Maxim Integrated Products Check for Price ADC, Successive Approximation, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDIP20, PLASTIC, DIP-20 MAX192BEPP+ vs MAX192BEPP
MAX192BCPP Maxim Integrated Products Check for Price ADC, Successive Approximation, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDIP20, PLASTIC, DIP-20 MAX192BEPP+ vs MAX192BCPP
MAX192BCAP+ Maxim Integrated Products Check for Price ADC, Successive Approximation, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20, 5.30 MM, 0.65 MM PITCH, ROHS COMPLIANT, SSOP-20 MAX192BEPP+ vs MAX192BCAP+
MAX192BEWP+T Analog Devices Inc Check for Price Low-Power, 8-Channel, Serial 10-Bit ADC, 20-SOIC_W-300_MIL, 20 Pins, -40 to 85C MAX192BEPP+ vs MAX192BEWP+T
MAX192BCWP+T Maxim Integrated Products Check for Price ADC, Successive Approximation, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20, ROHS COMPLIANT, SOIC-20 MAX192BEPP+ vs MAX192BCWP+T
MAX192BCWP+ Maxim Integrated Products Check for Price ADC, Successive Approximation, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20, ROHS COMPLIANT, SOIC-20 MAX192BEPP+ vs MAX192BCWP+
MAX192BEWP-T Maxim Integrated Products Check for Price ADC, Successive Approximation, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20, SO-20 MAX192BEPP+ vs MAX192BEWP-T
MAX192BEWP Maxim Integrated Products Check for Price ADC, Successive Approximation, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20, SO-20 MAX192BEPP+ vs MAX192BEWP
MAX192BCWP-T Maxim Integrated Products Check for Price ADC, Successive Approximation, 10-Bit, 1 Func, 8 Channel, Serial Access, CMOS, PDSO20, SO-20 MAX192BEPP+ vs MAX192BCWP-T
